IN Series Trim 10L Bored Lock Door Manufacturers Template

REVISIONS ZONE REV. DESCRIPTION DATE ENG F5, 2-F5 4 REVISED PER EN 724943: 1. Ø1.500 THRU HOLE WAS Ø1.000 THRU 11/16/2020 RL

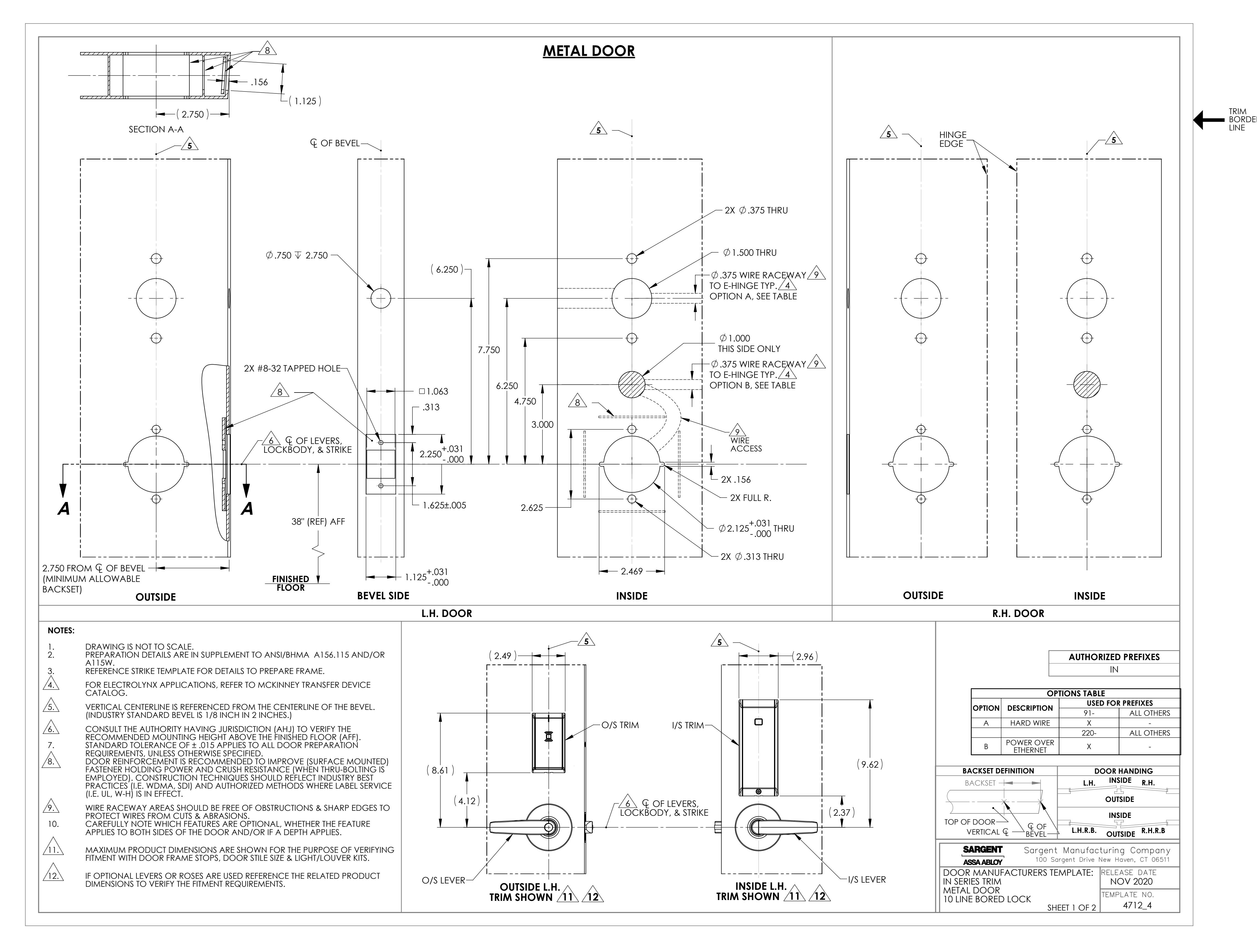

IN SERIES DOOR MFG TEMPLATE NOTICE TO PERSONS RECEIVING THIS DRAWING AND/OR TECHNICAL INFORMATION The material disclosed herein is the confidential and BORED LOCK proprietary information of Sargent Manufacturing Company (the "Company"). This drawing and/or technical information is issued in confidence for engineering information only and may not be reproduced or used to manufacture anything, including the items shown or referred to hereon, without FRACTIONS ± 1/64 SURFACE FINISH 63/ PROJECTION + HEAT TREATMENT DESIGNED BY DATE CREATED 04/26/2018 ASSA ABLOY direct written permission from the Company. This drawing and/or technical information is the property of the SCALE SIZE D DOCUMENT ID D000912628-000 Company and is loaned for mutual assistance to be returned when its purpose has been served or upon the request of the Company. volume 225.548 in³ | Surface area | Drawing n REV 4 5.048 lb

configuration Default

LEGACY ID

SHEET 1 OF 2

⁵ Approved 2020-12-01

REVISIONS ZONE REV. DESCRIPTION DATE ENG - - See METAL DOOR TEMPLATE - -

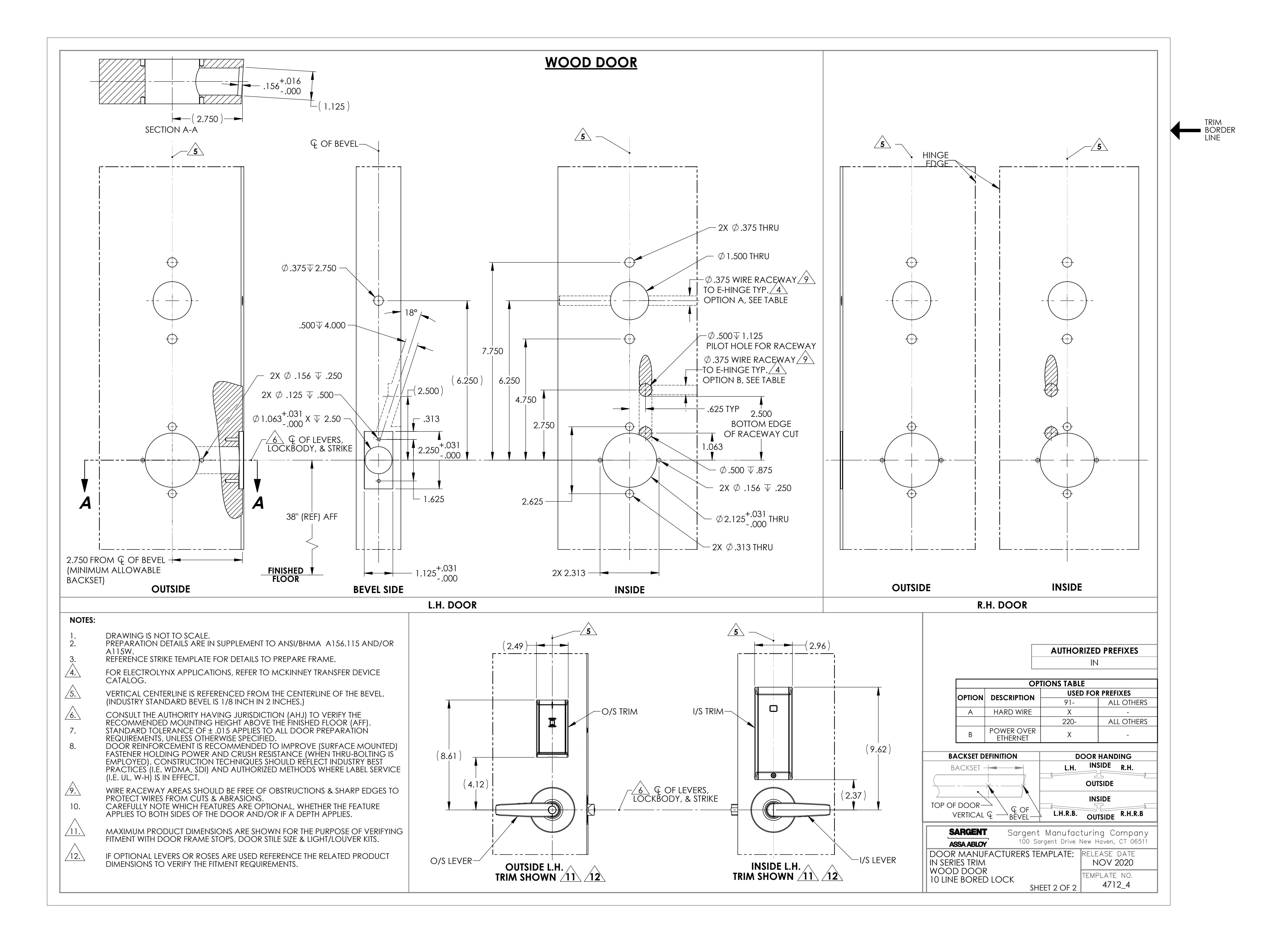

IN SERIES DOOR MFG TEMPLATE NOTICE TO PERSONS RECEIVING THIS DRAWING AND/OR TECHNICAL INFORMATION The material disclosed herein is the confidential and BORED LOCK proprietary information of Sargent Manufacturing Company (the "Company"). This drawing and/or technical information is issued in confidence for engineering information only and may not be reproduced or used to manufacture anything, including the items shown or referred to hereon, without FRACTIONS ± 1/64 SURFACE FINISH 63/ PROJECTION + HEAT TREATMENT DATE CREATED 04/26/2018 DESIGNED BY ASSA ABLOY direct written permission from the Company. This drawing and/or technical information is the property of the SCALE SIZE D DOCUMENT ID D000912628-000 Company and is loaned for mutual assistance to be returned when its purpose has been served or upon the request of the Company. MASS 4.267 lb VOLUME 372.290 in VOLUME 372.290 in VOLUME 372.290 in VOLUME 4712 SHEET 2 OF 2 CONFIGURATION _ WOOD DOOR PREP L.H.
