idpsc-1

I N S E R T I n s t r u c t i o n s

The Command Access IDPSC-1 is a field-installable Independent Door Position Sensor (Concealed). This switch is designed for hollow metal, FRP and wood doors and frames.

INCLUDED IN KIT

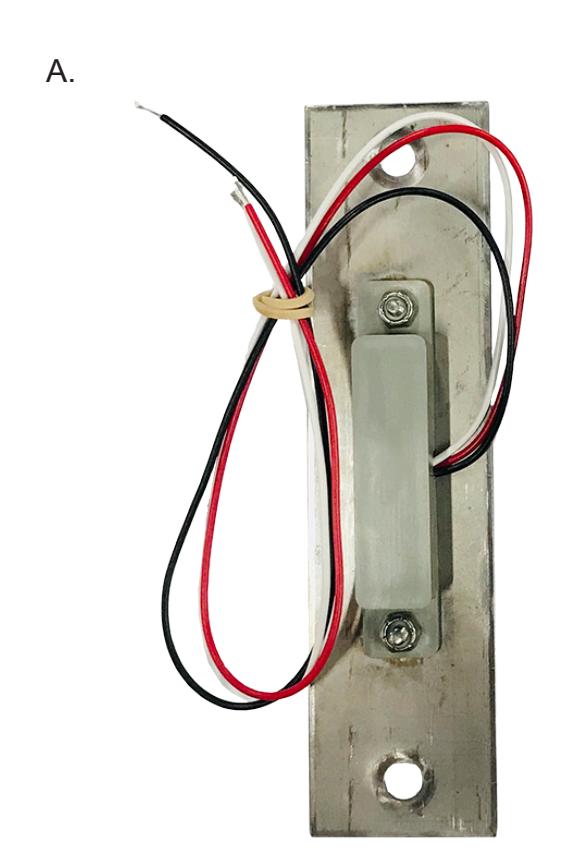

IDPSC-1 A.

Machine Screws 8-32 (x4) B.

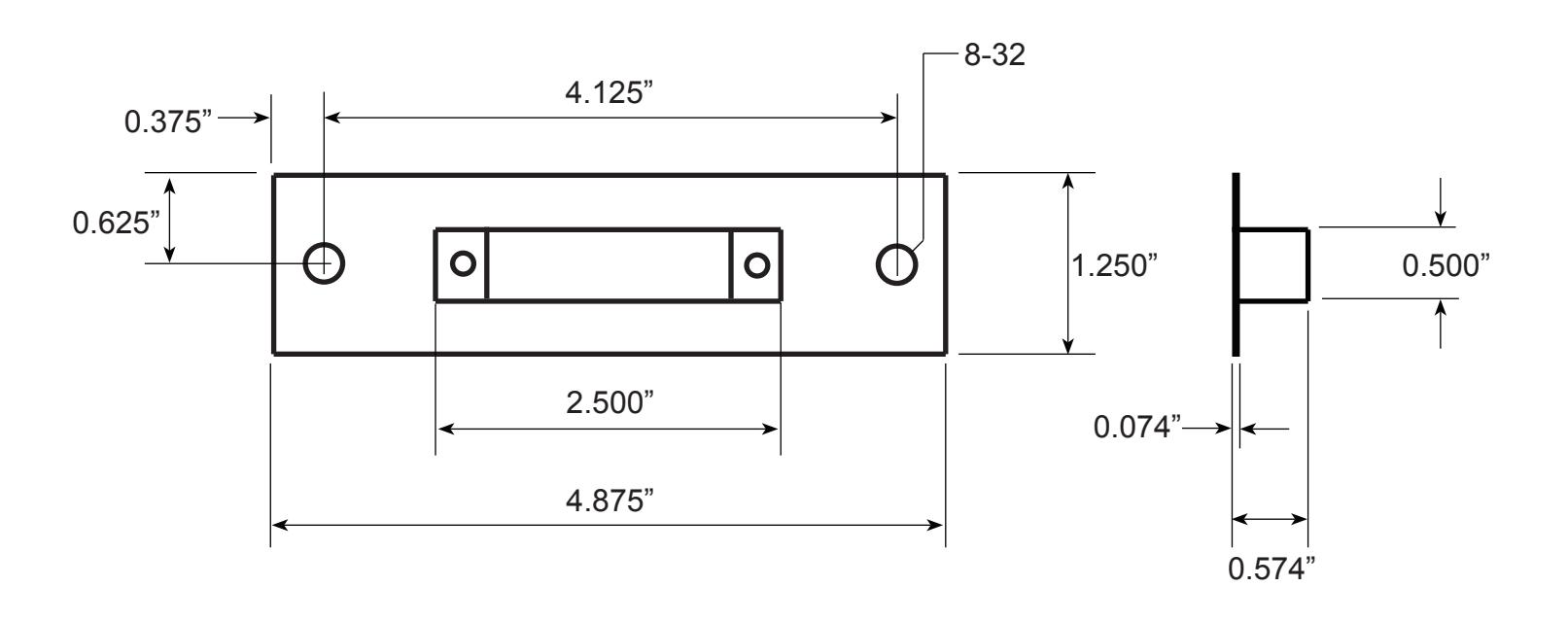

installation template

• • Single Pole Double Throw (SPDT)
• • Rating: .1A @ 30VAC/VDC
• Max Gap: 1"
• • Configuration: Black Common (C)

White - Normally Open (NO) Red - Normally Closed (NC)

Link to Command Access website and instructions SPECIFICATIONS:
