idps2

I N S E R T I n s t r u c t i o n s

The Command Access IDPS2 is a field-installable Independent Door Position Sensor (Self Locking). This adjustable switch is designed for hollow metal, FRP and wood doors and frames.

A.

INCLUDED IN KIT

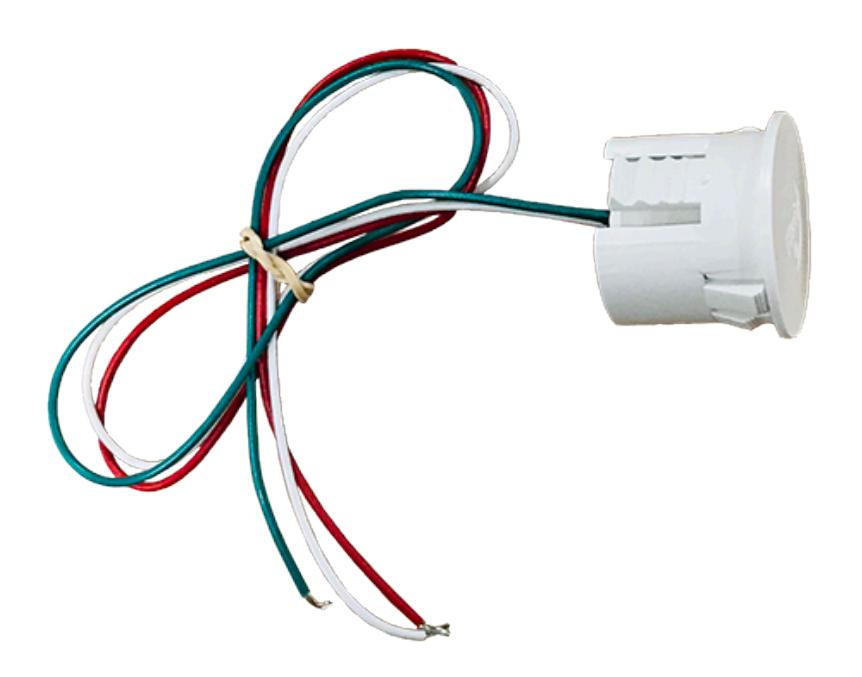

A. IDPS2

installation template

adjustable Magnet Switch

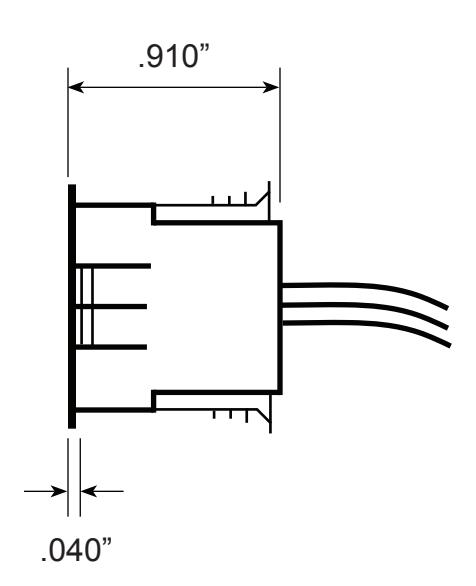

.985" 1.160" Magnet Holder screws in and out to adjust gap

website and instructions SPECIFICATIONS:

• • Single Pole Double Throw (SPDT)
• • Rating: .1A @ 30VAC/VDC
• Max Gap: 0.5"
• • Configuration: Green Common (C)

White - Normally Open (NO) Red - Normally Closed (NC)

Link to Command Access
