idps1

I N S E R T I n s t r u c t i o n s

The Command Access IDPS1 is a field-installable Independent Door Position Sensor (Self Locking). This switch is designed for hollow metal, FRP and wood doors and frames.

A.

INCLUDED IN KIT

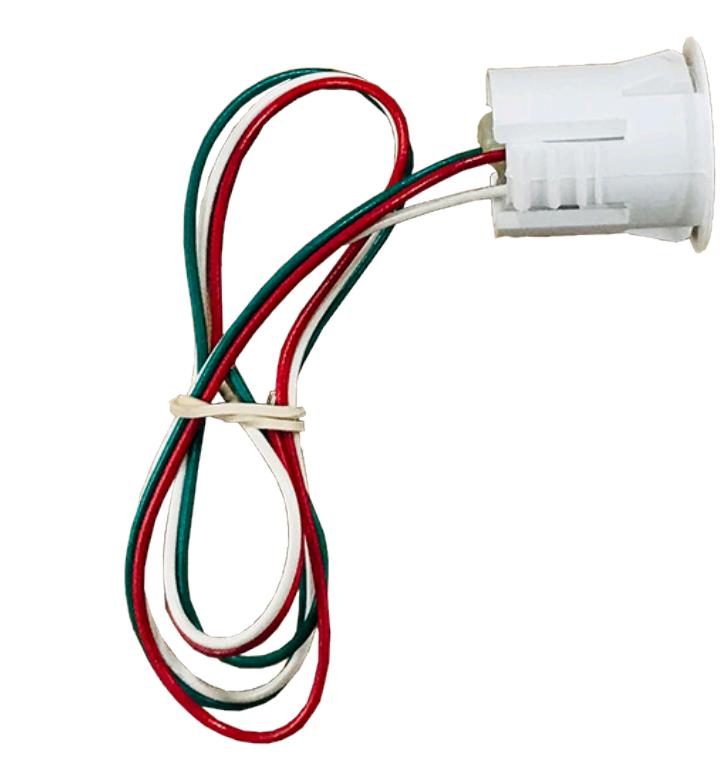

A. IDPS1

installation template

Magnet Switch

website and instructions SPECIFICATIONS:

• • Single Pole Double Throw (SPDT)
• • Rating: .2A @ 30VAC/VDC
• Max Gap: 0.5"
• • Configuration: Green Common (C)

White - Normally Open (NO) Red - Normally Closed (NC)
