i-oneX T ACTIVE INFRARED DOOR SENSOR
EXTRA-WIDE DETECTION AREA
Complies with new ANSI standard
BLACK
MONITORING CAPABILITY
i-oneX T has built-in "monitoring capability". The i-oneX T monitors all its critical functions and notifies compatible controls when an error occurs. Self monitoring capability the life of the sensor.
BUILT IN SUPPLEMENTAL SIDELIGHT SAFETY
The i-oneX T has a wide and deep detection area that can cover not only the threshold area, but the sidelight area as well. The i-oneX T provides supplemental sidelight safety all from a single sensor. Provide your customers with the highest level of safety and functionality with the i-oneX T.
BLUE ZONE

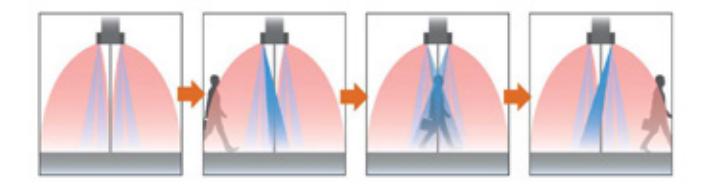

When the presence area detects a person or object, the sensor will activate the door and enable the "BLUE ZONE"; the area through the threshold. As long as the sensor remains in detection, the sensor will keep the door in the open position. Once the detection area is cleared, the "BLUE
ZONE" will ignore the door panels and allow the
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

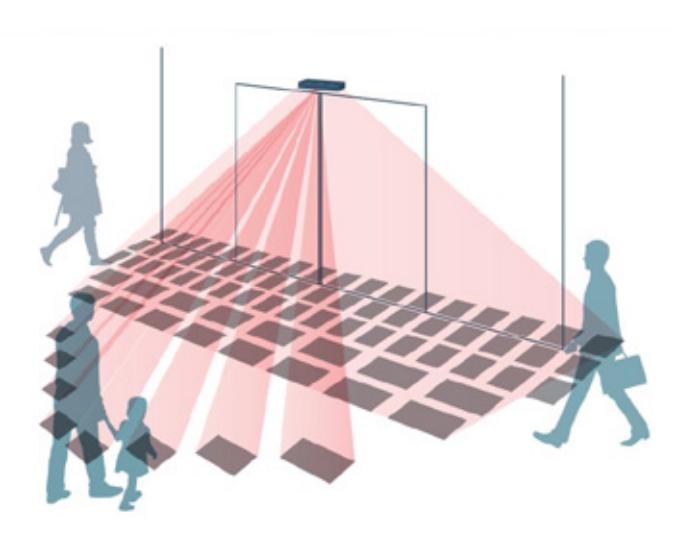

The extra-wide detection area covers the door opening plus sidelights, providing fast detection for traffic approaching from any angle.
SPECIFICATIONS
| Model | OA-FLEX T | |
|---|---|---|
| Cover color | Black | |
| Mounting height | 67" to 9'10" (2.0m to 3.0m) | |
| Detection area | See DETECTION AREA | |
| Detection method | Active infrared reflection | |
|
Depth angle
adjustment |
Approach area -15° to +10°
Presence/Motion area -10° to +8° |
|
| Power supply (*2 ) |
12 to 24 VAC ±10% (50 / 60 Hz)
12 to 30 VDC ±10% |
|
| Power consumption | < 2.5 W (< 4 VA at AC) | |
| Activation output |
Form A relay
50 V 0.3 A Max.(Resistance load) |
|
| Safety output |
Form A relay
50 V 0.3 A Max.(Resistance load) |
|
| Test input |
Opto coupler
Voltage 5 to 30 VDC |
|
| Output hold time | 0.5 to 1.5 sec. | |
| Response time | < 0.3 sec. | |
|
Operating
temperature |
C-31 °F to 131CF(-35°C to +55°C) | |
| Operating humidity | < 80% | |
| IP rate | IP54 | |
| Wpinht | 14.6 oz (420 g) | |
| Accessories |
1 Operation manual2 Mounting screws1 Mounting
template 1 Area adjustment tool 1 Cable 9'10" (3 m) |
|
West: 800-544-4422 • East: 800-225-6737
ACTIVE INFRARED DOOR SENSOR
i-oneX T
EXTRA-WIDE DETECTION AREA
Complies with new ANSI standard

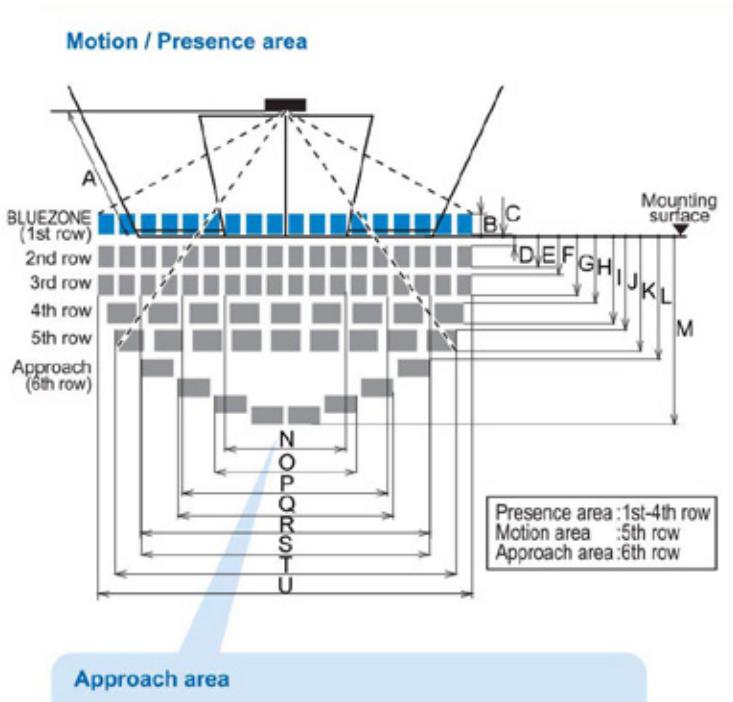

i-oneX T DETECTION AREA
DIMENSIONS
|
1' 5/16"(312)
9 13/16"(250) |
[inch (mm)] | |
|---|---|---|
|
4 13/16"(123)
1 7/16"(36) |
ന ന | 2 1/16"(52.5) |
| 2 11/16/(6 | • |
| , 0 (E.E0) | 0 2 (2.00) | 0 10 (0.00) | |
|---|---|---|---|
| В | 9" (0.22) | 10" (0.25) | 1' (0.31) |
| С | 6" (0.16) | 7" (0.18) | 8" (0.21) |
| D | 2" (0.06) | 3" (0.07) | 3" (0.08) |
| Е | 7" (0.17) | 8" (0.20) | 9" (0.24) |
| F | 1'7" (0.49) | 1'10" (0.55) | 2'2" (0.65) |
| G | 1'8" (0.50) | 1'11" (0.58) | 2'4" (0.70) |
| Н | 2'8" (0.82) | 3"1" (0.93) | 3'8" (1.11) |
| - 1 | 2'10" (0.86) | 3"3" (0.99) | 3'11" (1.19) |
| J | 3'5" (1.04) | 3'10" (1.18) | 4'8" (1.41) |
| K | 3'7" (1.09) | 4'1" (1.24) | 4'11" (1.49) |
| L | 4'9" (1.45) | 5'5" (1.65) | 6'6" (1.98) |
| M | 8'1" (2.46) | 9"2" (2.79) | 11' (3.35) |
| N | 4'6" (1.38) | 5'2" (1.57) | 6'2" (1.89) |
| 0 | 7'1" (2.15) | 8' (2.45) | 9'8" (2.95) |
| Р | 8'4" (2.53) | 9"5" (2.88) | 11'4" (3.45) |
| Q | 10'6" (3.20) | 12' (3.65) | 14'4" (4.38) |
| S | 14' (4.27) | 15'11" (4.86) | 19'2" (5.84) |
| Т | 13'5" (4.10) | 15'4" (4.67) | 18'4" (5.60) |
| U | 16'9" (5.10) | 19' (5.79) | 22'10" (6.95) |
| -15° | 0° | +10° | |
|---|---|---|---|
| L | 2'2" (0.67) | 4'9" (1.45) | 6'9" (2.06) |
| M | 5'1" (1.54) | 8'1" (2.46) | 12' (3.65) |
| 0 | 5'7" (1.69) | 7'1" (2.15) | 8'2" (2.50) |
| Q | 8'3" (2.52) | 10'6" (3.20) | 11'8" (3.56) |
| S | 12' (3.66) | 14' (4.27) | 15'7" (4.76) |
