IDC X Zone T Door Sensor

Open the original PDF document

Combined Active Infrared and Microwave Door Sensor

MONITORING CAPABILITY

X-Zone T has built-in monitoring capability. The X-Zone T monitors all its critical functions and notifies compatible controls when an error occurs. Self Monitoring capability ensures a higher level of performance over the life of the sensor.

Complies with new ANSI standard

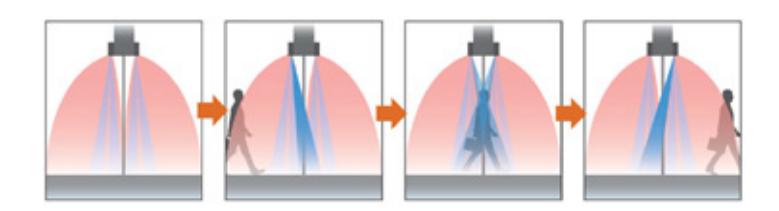

BLUE ZONE

When the presence area detects a person or object, the sensor will activate the door and enable the "BLUE ZONE"; the area through the threshold. As long as the sensor remains in detection, the sensor will keep the door in the open position. Once the detection area is cleared , the "BLUE ZONE" will ignore the door panels and allow the door to safely close.

Optional cover line up

DIRECTIONAL DETECTION

The X-Zone T can be adjusted to ignore traffic moving away from the sensor and reset more quickly. This will allow the door to close more quickly which reduces airflow between environmentally-controlled areas and the outdoors. This feature will save your customer money over the life of the sensor. Reduce power consumption and protect the environment with the X-Zone T from OPTEX.

White

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

X-ZONE T ACTIVE INFRARED & MICROWAVE

DOOR SENSOR

Combined Active Infrared and Microwave Door Sensor

Complies with new ANSI standard

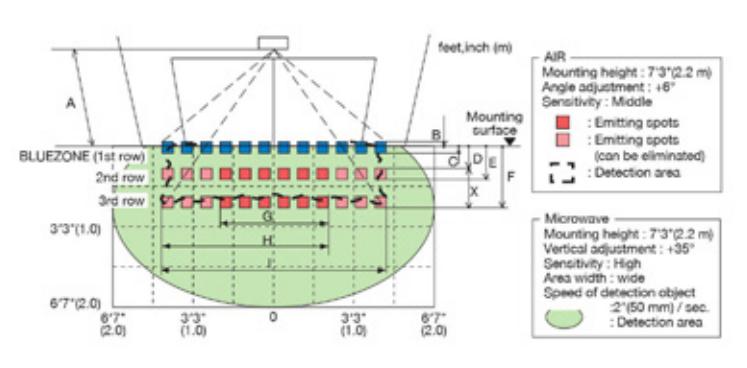

DETECTION AREA

AIR emitting area

The chert shows the values at depth angle +6° [feet, inch (m)]

A	6'7"(2.00)	7' 3" (2.20)	8' 2" (2.50)	8'10" (2.70)	9'10" (3.00)	11 '6" (3.50)
B	2" (0.05)	2" (0.06)	3" (0.07)	3" (0.07)	3" (0.08)	4" (0.09)
C	3" (0.07)	3" (0.08)	4" (0.09)	4" (0.10)	4" (0.11 )	5" (0.12)
D	9" (0.23)	10" (0.25)	11" (0.28)	1' (0.31)	1'1" (0.34)	1'3" (0.39)
E	1'2" (0.35)	1'3" (0.39)	1'5" (0.44)	1'7" (0.48)	1'9" (0.53)	2' (0.61)
F	1'11" (0.59)	2'2" (0.65)	2'5" (0.74)	2'7" (0.80)	2'11" (0.89)	3'5" (1.03)
G	3'12" (1.21 )	4'4" (1.33)	4'11" (1.51 )	5'4" (1.63)	5'11" (1.81 )	6'11" (2.11)
H	6' 1" (1.86)	6'9" (2.05)	7'7" (2.32)	8'3" (2.51)	9'2" (2.79)	10'8" (3.25)
I	8' 3" (2.52)	9'1" (2.78)	10'4" (3.15)	11'2" (3.40)	12'5" (3.79)	14'6" (4.42)

ACTIVATION / SAFETY TEST OUTPUT

Power 1	1.Grey
supply 'L	2.Grey
Activation-F	3.White
output "L	4.Yellow
Safety of	5.White stripe
output ".	☐ 6. Yellow stripe
Test .r	7.Red (+)
input 4	3 8 Black (-)

1	-	12 to 24 VAC±10% / 12 to 30 VDC±10%
2	$\Box$	Form A relay 50 V 0.3 A Max.
3	2	Form A relay 50 V 0.3 A Max.
4		Opto coupler / Voltage : 5 to 30 VDC

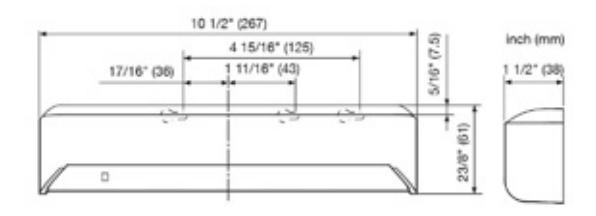

DIMENSIONS SPECIFICATION


Model	X-ZONE T
Cover color	(Default) Black / (Option) Mirror / Silver / White
Mounting height	6'7" to 11'6" (2.0 to 3.5m)
Detection area	See DETECTION AREA
Detection method	Active infrared reflection Microwave doppler effect (*1)
Area angle adjustment	AIR area -6 to +6" Microwave area +25 to +45°
Power supply (*2 )	12 to 24 VAC ±10% (50 / 60 Hz) 12 to 30 VDC ±10%
Power consumption	< 2.5 W (< 4 VA at AC)
Output hold time	< 0.5 sec.
Response time	< 0.3 sec.
Operating temperature	-31 to 131°F (-35 to +55°C)
Operating humidity	<80%
Activation output	Form A relay 50 V 0.3 A Max. (Resistance load)
Test input	Opto coupler Voltage 5 to 30 VDC Current 6 mA Max. (30 VDC)
Safety output	Form A relay 50 V 0.3 A Max. (Resistance load)
IP rate	IP54
Weight	9.5 oz (270 g)
Accessories	1 Operation manual, 2 Mounting screws, 1 Mounting template 1 Area adjustment tool, 1 Cable 9'10" (3m)

*1: Active infrared reflection has a presence detection function.

The specifications herein are subject to change without prior notice due to improvements.
