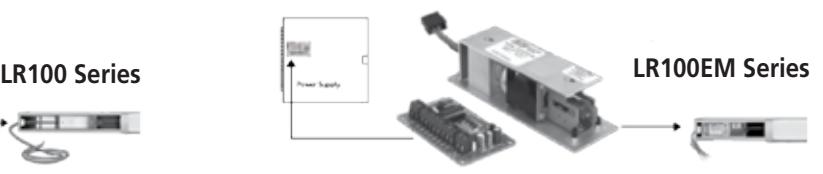

QUIET DUO™ LR100 SERIES
700mA Dual Latch Retraction / Dogging Kit
AVAILABLE FOR THESE BRANDS:
• IDC
• TownSteel
• Marshall Best
• Von Duprin
• Arrow
• Sargent
• Yale
• PHI
• SDC
• Corbin Russwin
• Falcon
• Tell
• Dor-O-Matic
• Cal-Royal
• Detex
• Hager
• PDQ • Falcon IR
• Dorma
• Adams Rite • Stanley K2
• Jackson
APPLICATION FEATURES
The IDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.

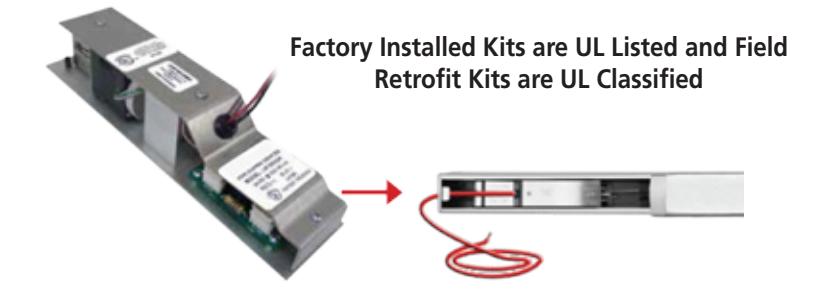

Field Installed Retrofit Kit
• UL Classified for use with 3hr fire rated & non-fire rated exit devices
IDC Factory Installed Kit
- UL Listed for use with 3hr fire rated & non-fire rated exit devices
- Distributor sends exit device to IDC for kit installation
For use with 3Hr fire rated and non-fire rated mechanical exit devices.
Only 700mA inrush / 200mA continuous @ 24VDC provides simultaneous latch retraction, dogging with pushpad depression unless specified otherwise.
- 700 mA Inrush, 200 mA Continuous @ 24VDC
- For access control and sustained dogging applications
- Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices*
- Pushpad is depressed* electrically for quieter push / pull operation
- Automatic re-trigger if device does not pull on first try * on designated models
- Eliminates need for costly replacement of existing exit device
- Significantly less labor and costs compared to competitive retrofit kits
- Low current enables longer wire runs with smaller gauge wire
- No door sequencers required for pairs of manual doors
- Installs in Von Duprin non-fire rated panic device without removing from the door
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
West: 800-544-4422 • East: 800-225-6737
ORDERING INFORMATION
| IDC (INTERNATIONAL DOOR CLOSERS) | ||||
|---|---|---|---|---|
| 8000 SERIES EXIT DEVICES | ||||
| Electric Latch Retraction / Dogging Device | ||||
| Opening | Field Retrofit Kit | Factory Installed | ||

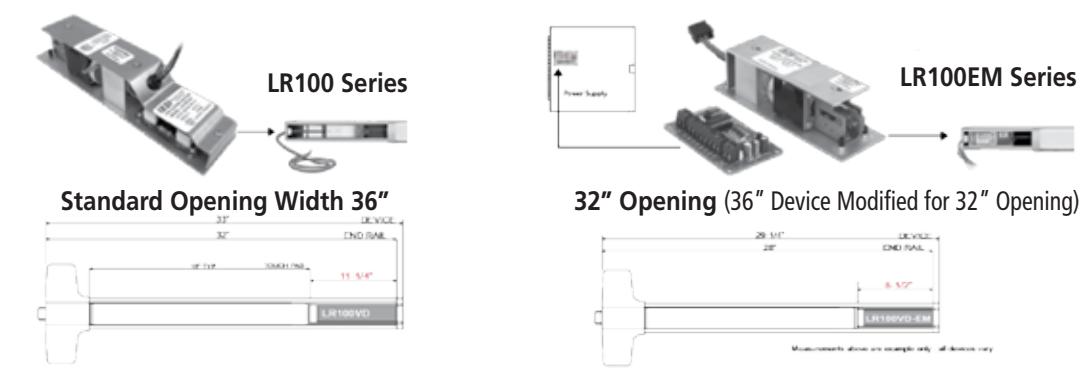

| 36"-48" | LR100IDCK | LR100IDC | ||
|
30"
LR100IDCKEM |
LR100IDCEM | |||
| Options | ||||
| LRIDC1L | Latch Status Kit | |||
| LRIDC1R | Pushpad/Dogging Status or REXStatus Kit | |||
| Models | ||
|---|---|---|
| Standard | Narrow Line | |
| 8610 / 8810 | Rim Mount | 8510 / 8710 |
| 8630 / 8830 | Surface Vertical Rod | 8530 / 8730 |
| 8620 / 8820 | Mortise | |
| 8650 / 8850 | Concealed Vertical Rod | 8550 / 8750 |
| VON DUPRIN 22 SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Length | Field Retrofit Kit | Factory Installed | ||
| 36"- 48" | LR100VDK-22 | LR100VD-22 | ||
| 30" | LR100VDK-22-EM | LR100VD-22-EM | ||
| Models | ||||
| 22 | Rim Mount | |||
| 2227 | Surface Vertical Rod | |||
| Options | ||||
| LRVD1L | Latch Status Kit for 22 Series | |||
| LRVD2R |
REX Status or Pushpad/Dogging
Status for 22 Series |
|||
| VON DUPRIN 98/99 AND 33/35 SERIES EXIT DEVICES | ||||||
| Opening | Field Retrofit Kit | Factory Installed | ||||
| 36"- 48" | LR100VDK | LR100VD | ||||
| 30" | LR100VDK-EM | LR100VD-EM | ||||
| Models | ||||||
| 98/99 | 33A / 35A | Rim Mount | ||||
| 9827/9927 | 3327A / 3527A | Surface Vertical Rod | ||||
| 9847/9947 | 3347A / 3547A | Concealed Vertical Rod | ||||
| 9875/9975 | Mortise | |||||
| 9857/9957 | Three Point latching | |||||
| DORMA EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36" | LR100DAK | LR100DA | ||
| Models | ||||
| 9300 / F9300 | Rim Mount | |||
| 9400 / F9400 | Surface Vertical Rod | |||
| YALE 7000 SERIES EXIT DEVICES | |||
|---|---|---|---|
| Length | Field Retrofit Kit | Factory Installed | |
| 36" | LR100YDK | LR100YD | |
| 30" | LR100YDK-EM | LR100YD-EM | |
| 42"- 48" | LR100YDK-42/48 | LR100YD-42/48 | |
| Models | |||
| 7100, 7102, 7200 | Rim Mount | ||
| 7110, 7210 | Surface Vertical Rod | ||
| 7120, 7220 | Concealed Vertical Rod | ||
| Options | |||
| LRY1L | Latch Status Kit | ||
| LRY1R | REX Status Kit | ||
| CORBIN RUSSWIN • ED SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36" | LR100CRK | LR100CR | ||
| 30" | LR100CRK-EM | LR100CR-EM | ||
| 42"- 48" | LR100CRK 42/48 | LR100CR 42/48 | ||
| Options | ||||
| LRCR1L | Latch Status Kit | |||
| LRCR1R | REX Status Kit | |||
| Models | ||||
|
ED5200 / ED4200
Rim Mount |
||||
| ED5400 | Surface Vertical Rod | |||
| ED4800 / ED4800 | Concealed Vertical Rod | |||
| HAGER 4500 SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36"- 48" | LR100HK | LR100H | ||
| 30" | LR100HK-EM | LR100H-EM | ||
| Models | ||||
| 4501 - Rim | Rim Mount | |||
| 4501 - SVR | Surface Vertical Rod | |||
| Options | ||||
| LRH1L | Latch Status Kit | |||
| LRH1R | Pushpad/Dogging Status or REX Status Kit | |||
| ADAMS RITE EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36"-48" | LR100ARK | LR100AR | ||
| 30" | LR100ARK-EM | LR100AR-EM | ||
| Models | ||||
| 8700** / 8800 / 3700 | Rim Mount | |||
| 8100 / 8200 / 3100 | Surface Vertical Rod | |||
| 8500 / 8600 / 3600 | Concealed Vertical Rod | |||
| Options | ||||
| LRARIR | REX Status Kit | |||
| STANLEY K2 QED SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36"- 48" | LR100K2K | LR100K2 | ||
| 30" | LR100K2K-EM | LR100K2-EM | ||
| Models | ||||
| QED111 | Rim Mount | |||
| QED114 | Surface Vertical Rod | |||
| QED124 | Concealed Vertical Rod | |||
| Options | ||||
| LRK2R | Latch Status and REX Status or Pushpad/ | |||
| Dogging Status Kit | ||||
| ARROW 1000 SERIES EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" - 48" | LR100AWK | LR100AW | |||
| Models | |||||
| S1250 | Rim Mount | ||||
| S1150 | Surface Vertical Rod | ||||
| Opening |
Field Retrofit Kit
Factory Installed |
||||
| 36" |
LR100AWK-ED910
LR100AW-ED910 |
||||
| Models | |||||
| S1250 | Rim Mount | ||||
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
| TOWNSTEEL ED1100 SERIES EXIT DEVICES | |||
|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |
| 36"- 48" | LR100TSK | LR100TS | |
| 30" | LR100TSKEM | LR100TSEM | |
| Models | |||
| ED1100 | Rim Mount | ||
| ED1200 | Surface Vertical Rod | ||
| ED1300 | Concealed Vertical Rod | ||
| Options | |||
| LRTS1R | REX Status or Pushpad/Dogging Status Kit | ||
| Opening | Field Retrofit Kit | Factory Installed | |
| 36" | LR100TSK-55/56 | LR100TS-55/56 | |
| Models | |||
| ED5500 | Rim Mount | ||
| ED5600 | Surface Vertical Rod | ||
| Options | |||
| LRTS2R |
REX Status or Pushpad/Dogging Status Kit
FOR ED5500 |
||
| Opening | Field Retrofit Kit | Factory Installed | |
| 36" |
LR100TSK-65/67
R100TS-65/67 |
||
| Models | |||
| ED6500 | Rim Mount | ||
| ED6700 | Surface Vertical Rod | ||
| PHI (PRECISION HARDWARE) EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Length | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100PDK | LR100PD | |||
| Models | |||||
| 2100 / 2400 | Rim Mount | ||||
| 2200 LBR | Surface Vertical Rod | ||||
| 2800 LBR / 2600 | Concealed Vertical Rod | ||||
| 5100 | Rim Mount | ||||
| 5200 LBR | Surface Vertical Rod | ||||
| Options | |||||
| LRP1L | Latch Status Kit for PHI Rim 2000 Series | ||||
| LRP2L | Latch Status Kit for PHI Vertical Rod 2000 Series | ||||
| LRP1R |
REX Status or Pushpad/Dogging Status for PHI
2000 Series |
||||
| TELL MFG. EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100TEK | LR100TE | |||
| Models | |||||
| 9500 | Rim Mount | ||||
| 9400 | Surface Vertical Rod | ||||
West: 800-544-4422 • East: 800-225-6737
| FALCON DOR-O-MATIC EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100FAK | LR100FA | |||
| 30" | LR100FAK-EM | LR100FA-EM | |||
| Models | |||||
| 1790 | Rim Mount | ||||
| 1690 | Concealed Vertical Rod | ||||
| Opening | Field Retrofit Kit | Factory Installed | |||
|
36"
LR100DMK |
LR100DM | ||||
| Models | |||||
| 1590 | Rim Mount | ||||
| 1490 | Concealed Vertical Rod | ||||
| CAL-ROYAL EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100CAK | LR100CA | |||
| Models | |||||
| 7700 / F7700 | Rim Mount | ||||
| 7760 / F7760 | Surface Vertical Rod | ||||
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100CAK-9800 | LR100CA-9800 | |||
| Models | |||||
| GLS9800 | Rim Mount | ||||
| GLSCVR9800 | Concealed Vertical Rod | ||||
| Opening | Field Retrofit Kit | Factory Installed | |||
| 30" | LR100CAK-EM | LR100CA-EM | |||
| Models | |||||
|
2200 / F2200 / 9800 / F9800
Rim Mount |
|||||
| 2260 / F2260 / 9860 / F9860 | Surface Vertical Rod | ||||
| SDC 6000 SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36"- 48" | LR100SDCK | LR100SDC | ||
| 30" | LR100SDCKEM | LR100ISDEM | ||
| Models | ||||
| S6100 | Rim Mount | |||
| S6200 | Surface Vertical Rod | |||
| S6300 | Mortise | |||
| S6800 | Concealed Vertical Rod | |||
| Options | ||||
| LRSDC1L | Latch Status Kit | |||
| LRSDC1R | Pushpad/Dogging Status or REXStatus Kit | |||
| FALCON 24/25 SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening |
Field Retrofit Kit
Factory Installed |
|||
| 36" | LR100FRK | LR100FR | ||
| Models | ||||
|
25-R / F-25-R
24-R / F-24-R |
Rim Mount | |||
|
25-V / F-25-V
24-V / F-24-V |
Surface Vertical Rod | |||
|
25-C / F-25-C
24-C / F-24-C |
Concealed Vertical Rod | |||
| MARSHALL BEST EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36" | LR100MBSK | LR100MBS | ||
| 30" | LR100MBSK-EM | LR100MBS-EM | ||
| Models | ||||
| Q1100/QF1100 | Rim Mount | |||
| Q1200/QF1200 | Surface Vertical Rod | |||
| PDQ EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening |
Field Retrofit Kit
Factory Installed |
|||
| 36"- 48" |
LR100PDQK
LR100PDQ |
|||
| Models | ||||
| 6200R | Rim Mount | |||
| 6200V | Surface Vertical Rod | |||
| TELL EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | |||
| 36" | LR100TEK | LR100TE | |||
| Models | |||||
| 9500 | Rim Mount | ||||
| 9400 | Surface Vertical Rod | ||||
| JACKSON 2000 SERIES EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening |
Field Retrofit Kit
Factory Installed |
|||
| 36" | LR100JAK | LR100FR | ||
| Models | ||||
| 2095 | Rim Mount | |||
| 2085 | Concealed Vertical Rod (top latch) | |||
| 2086 | Concealed Vertical Rod (top bolt) | |||
| ACCESSORIES | ||
| 602RF |
1 Amp Power Supply, UL Listed 294,
for 1 or 2 exit devices |
|
| 632RF |
2 Amp Power Supply, UL Listed 294
for 3 or 4 exit devices |
|
| EMC |
2 Station Automatic Door Sequence;
Each EMC provides interface and sequencing for two single or one double automatic door. |
|
| PTH-4Q |
4-wire Electric Hinge, 1 Amp max.
UL 10B |
|
| PTH-4QDPS |
4-wire, Electric Hinge 1 Amp max.
UL 10B. With concealed Door Status Contact |
|
| PTH-2+4Q |
6-wire Electric Hinge 1-pair 16 Amp
inrush, 4 Amp continuous; 2-pair 1 Amp @ 12/24V |
|
| PTH-10Q |
Ten (10) Conductor Power Transfer
Hinge, 1 Amp @ 12/24V per pair |
|
| PT-5 |
Concealed mortise power transfer
device, UL 10B Fire Door Accessory |
|
| PT-3V |
Stainless steel door loop with
surface wire junction |
|
| PTM-2AL |
Two (2) Conductor Power Transfer
Device: Two (2) 18 Ga. wires 5 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent |
|
| PTM-2BZ |
Two (2) Conductor Power Transfer
Device: Two (2) 18 Ga. wires 5 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent |
|
| PTM-10AL |
Ten (10) Conductor Power Transfer
Device: Ten (10) 24 Ga. wire 1 Amp @ 12/24V AC/DC, Aluminum Powder Coat, US28 equivalent |
|
| PTM-10BZ |
Ten (10) Conductor Power Transfer
Device: Ten (10) 24 Ga. wire 1 Amp @ 12/24V AC/DC, Dark Brown Powder Coat, US10B equivalent |
|
| 400U-L2 |
Two LEDs. Specify lens color.
Standard Finish, on 1 Gang plate |
|
| 400NU-L2 |
Two LEDs. Specify lens color.
Standard Finish, on narrow plate |
|
| DETEX EXIT DEVICE | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36" | LR100DXK | LR100DX | ||
| Models | ||||
| 10 / 40 Series | Rim Mount | |||
| 20 / 50 Series | Surface Vertical Rod | |||
| 80 / 81 / 62 / 63 Series | Concealed Vertical Rod | |||
| Options | ||||
| LRDX1R | REX Status Status Kit | |||
| SARGENT EXIT DEVICES | |||||
|---|---|---|---|---|---|
| Length |
Field Retrofit Kit
Factory Installed |
||||
| 36"- 48" | LR100SGK | LR100SG | |||
| 30" | LR100SGK-EM | LR100SG-EM | |||
| Models | |||||
| 8500 / 8800 | Rim Mount | ||||
| 8700 | Surface Vertical Rod | ||||
| 8400 / 8600 | Concealed Vertical Rod | ||||
| 8300 / 8900 | Mortise | ||||
| Options | |||||
| LRSG2R |
Latch Status and REX Status or
Pushpad/Dogging Status Kit |
||||
| MARKS EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36" | LR100MDK | LR100MD | ||
| Models | ||||
| M9900 | Rim Mount | |||
| M9900VR | Surface Vertical Rod | |||
| PAMEX EXIT DEVICES | ||||
|---|---|---|---|---|
| Opening | Field Retrofit Kit | Factory Installed | ||
| 36"- 48" | LR100PAK | LR100PA | ||
| 30" | LR100PAK-EM | LR100PA-EM | ||
| Models | ||||
| EF9000 | Rim Mount | |||
| EF9000V | Surface Vertical Rod | |||
| EF9020V | Concealed Vertical Rod | |||
