HEADER MOUNTED ACTIVE INFRARED DOOR SENSOR
PREMIER T
PRO-SWING DOOR
Complies with new ANSI standard
- Fully open or fully closed swing area detection
- Universal compatibility with all operators
- Threshold protection "look through capability"
Sensor head : OA-613 T Controller: OC-913C T
The OPTEX Premier T is designed to detect moving or stationary people within the swing path of the door. The Premier T is active when the door is fully open or fully closed.
PATTERN MEMORY
Four pattern memory (two fully open and two fully closed) eliminates or reduces unwanted safety/relearn issues common to knowing act double swing doors, when used manually (most commonly in hospital corridors).
UNIVERSAL COMPATIBILITY
Premier T can interface with the majority of existing controls by analyzing data output and motor voltage.
MONITORING CAPABILITY
PREMIER T has built-in "monitoring capability". PREMIER T monitors all its critical functions and notifies compatible controls when an error occurs. Self monitoring capability ensures a higher level of performance over the life of the sensor.

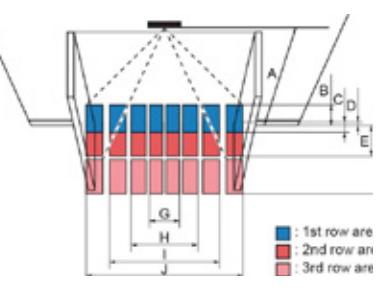

Detection Area
Chart shows figures if all angles are set at 0 degree. [feet, inch (mm)]
| A | 67" (2000) | 73" (2200) | 8'2" (2500) |
| B | 1'2" (364) | 1 '4" (400) | 1'6"(455) |
| C | 7" (182) | 8" (200) | 9" (227) |
| D | 1' (23) | 1' (25) | 1' (28) |
| E | 2'2" (664) | 2'5" (730) | 2'9' (830) |
| F | 4'7" (1391) | 5'1" (1530) | 5'9" (1739) |
| G | 2'3" (682) | 2'6" (750) | 2'10" (852) |
| H | 4'4" (1318) | 4'9" (1450) | 5'5" (1648) |
| I | 6'9" (2045) | 7'5" (2250) | 8'5" (2557) |
* : Two type of outputs (Activate output, Safety output)
** : All row are presence detection type.
SPECIFICATIONS
| Model (System name) | PREMIER T |
| Power supply |
12 to 24 VAC ±10% (50 / 60 Hz)
12 to 30 VDC |
| Power consumption |
<27 W(<4 VAat AC)
at 1 OA-613T&1 OC-913CT |
| Output * | CMOS. Relay voltage / 5 VDC |
| Test input |
Opto coupler
Voltage 5 to 30 VDC Current 6 mA Max. (30 VDC) |
| Output hold time |
0.5 sec. fixed (Activate output)
0.5 sec. to 10 sec. (Safety output) |
| Response time | < 0.3 sec. |
| Operating temperature |
-4 to 131°F (-20 to +55°C)
without dew condensation |
| Operating humidity | <80% |
| Accessories |
1 Spec manual
1 Installation manual 2 Mounting screws 1 Mounting templates for OA-613 T 1 Communication cable 3'3" (1 m) 1 Wiring cable 2' (0.6 m) 1 Velcro tape 2 Wiring shells |

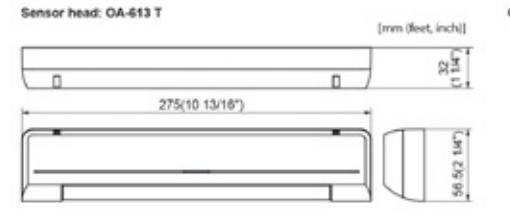

| Model (Sensor head) | OA-613 T |
|---|---|
| Cover color | Black |
| Mounting height | 67" (2.0 m) to 8'2" (2.5 m) |
| Detection area | See DETECTION AREA |
| Detection method ** | Active infrared reflection |
| Depth angle adjustment |
1st row area ±5°
2nd & 3rd row area ±5° |
| IP rate | IP44 |
| Weight | 8.1 oz (230 g) |
| Model (Controller) | OC-913CT |
|---|---|
| Weight | 2.3 oz (65 g) |
