IDC OA-FLEX T Door Sensor For Slide And Swing Doors
Open the original PDF document
View PDF
Flexibility for More Safety and More Reliability
BLACK
MONITORING CAPABILITY
OA-FLEX T has built-in "monitoring capability". The OA-FLEX T monitors all its critical functions and noties compatible controls when an error occurs. Self monitoring capability ensures a higher level of performance over the life of the sensor.
BLUE ZONE

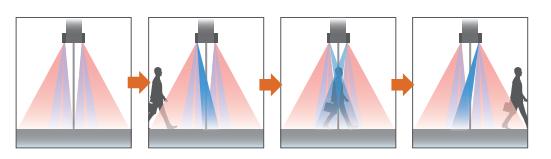

How it Works: When the approach area detects a person or object, the sensor will activate the door and turn on the "BLUEZONE" which detects through the threshold. As long as someone is in the detection
area, the sensor will keep the door in the open position. Once the area is cleared, the "BLUEZONE" will ignore the door panels and allow the door to safely close.
OA-FLEX T
FOR SLIDE AND SWING DOORS
Adapted in Cold District -31°F to 131°F
Whole presence detection capability OA-FLEX T can use detection area as presence detection area and possible to utilize for various applications.

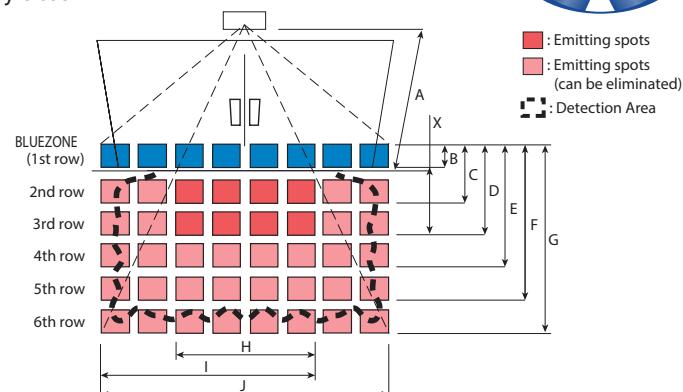

| Emitt | mitting area [ m (feet,inch) ] | ||||
|---|---|---|---|---|---|
| Α | 2.00 (6'7") | 2.30 ( 7'7" ) | 2.50 ( 8'2" ) | 3.00 ( 9'10" ) | |
| В | 0.13 (5") | 0.16 ( 6") | 0.17 ( 7") | 0.21 (8") | |
| C | 0.38 (1'3") | 0.46 (1 '6") | 0.50 (1 '8") | 0.60 (1 '12" ) | |
| D | 0.71 (2'4") | 0.86 (2 '10" ) | 0.94 (3 '1") | 1.13 (3 '8" ) | |
| Е | 0.84 (2'9") | 1.01 (3 '4") | 1.09 (3 '7") | 1.31 (4 '4" ) | |
| F | 1.34 (4'5') | 1.62 (5 '4" ) | 1.76 (5 '9") | 2.11 (6 '11" ) | |
| G | 1.75 (5'9") | 2.11 (6 '11" ) | 2.29 (7 '6") | 2.75 (9 ') | |
| Н | 0.92 (3') | 1.11 (3 '8") | 1.20 (3 '11" ) | 1.45 (4 '9" ) | |
| - 1 | 1.49 (4'11") | 1.80 (5 '11" ) | 1.95 (6 '5") | 2.34 (7 '8") | |
| J | 2.06 (6'9") | 2.48 (8 '2") | 2.69 (8 '10" ) | 3.23 (10 '7") | |
Charts show the values in the following area angle adjustment settings; Depth: 0° Width: 0°

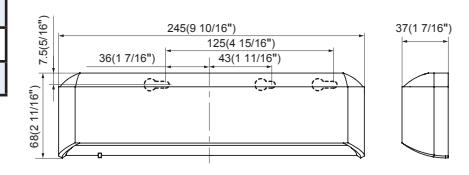

SPECIFICATIONS
| Model | OA-FLEX T |
|---|---|
| Cover color | Black |
| Mounting height | 2.0 m (6'7") to 2.5 m (8'2") |
| Detection area | See DETECTION AREA |
| Detection method | Active infrared reflection(*1) |
|
Area angle
adjustment |
Depth: -8° to +8°
Width: ±7° (2 clicks with 3.5°every click-Left/Right) |
| Power supply (*2) |
12 to 24 VAC ±10% (50 / 60 Hz)
12 to 30 VDC ±10% |
| Power consumption | < 2.0 W (< 5 VA at AC) |
| Operation indicator | See Operation indicator table |
| Operating humidity | < 80% |
| Test intput | Opto coupler | |
|---|---|---|
| Voltage / 5 to 30 VDC | ||
| Current / 6 mA Max. (30 VDC) | ||
| Activation output | Form A relay | |
| 50 V 0.3 A Max. (Resistance load) | ||
| Safety output | Form A relay | |
| 50 V 0.3 A Max. (Resistance load) | ||
| Operating temperature | -35 to +55°C (-31 to 131°F) | |
| Noise level | < 70 dBA | |
| Output hold time | Approx. 0.5 sec. | |
| Response time | < 0.3 sec. | |
| IP rate | IP54 | |
| Weight | 220 g (7.8 oz) | |
| Accessories | 1 Operation manual | |
|---|---|---|
| 2 Mounting screws | ||
| 1 Mounting template | ||
| 1 Area adjustment tool | ||
| 1 Cable 3 m(9'10") | ||
| (8 × 0.22 mm AWG24 ) (*3 ) | ||
- BLUEZONE (1st row), 2nd and 3rd rows have a presence detection function.
- When using this sensor, the sensor has to be connected to a door system which has the SELV circuit.
- 3. Overcurrent protection with less than 2A.
International Door Closers, Inc.
