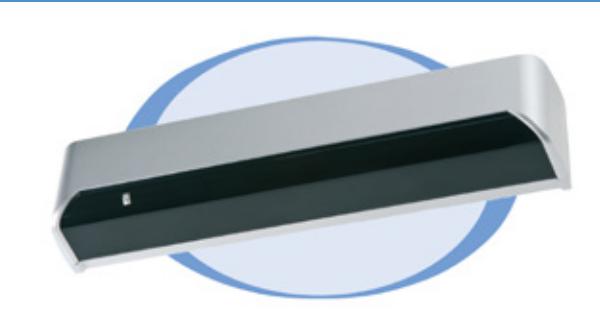

IDC OA-AXIS Infrared Door Sensor
Open the original PDF document
View PDF
COMBINATION
The OPTEX OA-Axis series utilizes OPTEX's unique active infrared technology, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique the OA-Axis series provides maximum safety around the threshold as well as a large motion detection area for door activation.
EASY ADJUSTMENT
Installation time can be reduced to a minimum by using easily set switches and adjustments. The sensor can be quickly adjusted for many different applications.
SAFETY
The active infrared presence detection of the OA-Axis series can be set very accurately and can be moved 6° towards or away from the door. The sensor detects a person or object and holds the door open as long as they are in or near the threshold area, even if they are motionless.
MOTION DETECTION
The large detection area provides fast detection for any humans or carts approaching from any angle. The sensor's enhanced pattern depth enables it to detect people and objects farther away and allows the door to open conveniently for them. The presence and motion detection areas can be adjusted independently.

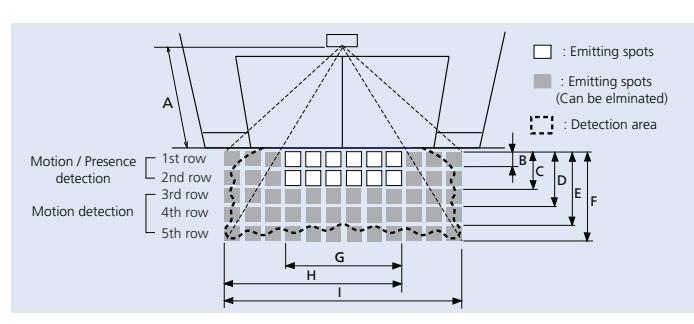

| Mounting Height A | 7′ 2″ | 8′ 2″ | 8′ 10″ | 9′ 10″ |
|---|---|---|---|---|
| Wounting Height A | 7 2 | 0 10 | ||
| Area Depth B | 5 1/2" | 6″ | 7" | 8″ |
| Area Depth C | 1′ 5″ | 1′ 7″ | 1′ 8″ | 1′ 11″ |
| Area Depth D | 2′ 8″ | 3′ 1″ | 3′ 3″ | 3′ 7″ |
| Area Depth E | 4′ 5″ | 5′ 1″ | 5′ 5″ | 6′ 1″ |
| Area Depth F | 6′ 3″ | 7′ 1″ | 7′ 8″ | 8′ 6″ |
| Area Depth G | 4′ 4″ | 4′ 11″ | 5′ 4″ | 5′ 11″ |
| Area Depth H | 6′ 9″ | 7′ 7″ | 8′ 3″ | 9′ 2″ |
| Area Depth I | 9′ 2″ | 10′ 4″ | 11′ 2″ | 12′ 5″ |
The actual detection may differ according to the size/material/entry speed of the object and the installation environment.
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC
OA-AXIS SERIES THRESHOLD SAFETY AND ACTIVATION
The OPTEX OA-Axis series is the new active infrared door sensor standard for use on automatic sliding doors. The OA-Axis series is developed as a combination sensor for threshold safety and activation.
VARIETY
By offering different types of output contacts the OA-Axis series meets the requirements and local standards in many different markets.
OA-Axis I: relay output for activation and safety. OA-Axis II: one relay for safety and a second relay for motion/activation.
SPECIFICATIONS
| Model | OA-Axis I /OA-Axis II | |
|---|---|---|
| Mounting height | Up to 11' 6" (I/II) | |
| Detection angle adjustments |
1st - 3rd rows -6° / +6°
4th and 5th rows +26° / +44° |
|
| Detection method | Active infrared reflection | |
| Power supply |
12-24V AC±10% (50/60Hz)
12-30V DC±10% |
|
| Power consumption |
OA-Axis I: <3VA
OA-Axis II: <4VA |
|
| LED Operating indicator | See installation manuals | |
| Voltage | 5 to 50VDC, Current / 100 mA max. | |
| Dark current | 600 nA max. | |
| Output (OA-Axis I) | Form C relay, 50V, 0.3A max. | |
| Output (OA-Axis II) |
1st-3rd row Form C relay
50V 0.3A max. (resistance load) 3rd-5th row Form C relay 50V 0.3A max. (resistance load) |
|
| Output hold time | Approx. 0.5s | |
| Response time | <0.3s | |
| Operating temperature | -4°F - +131°F | |
| Weight | 320g | |
| Accessories | 3' connection cable 2 mounting screws 1 mounting template 1 area adjustment tool | |
| Available colors | Black and silver | |
