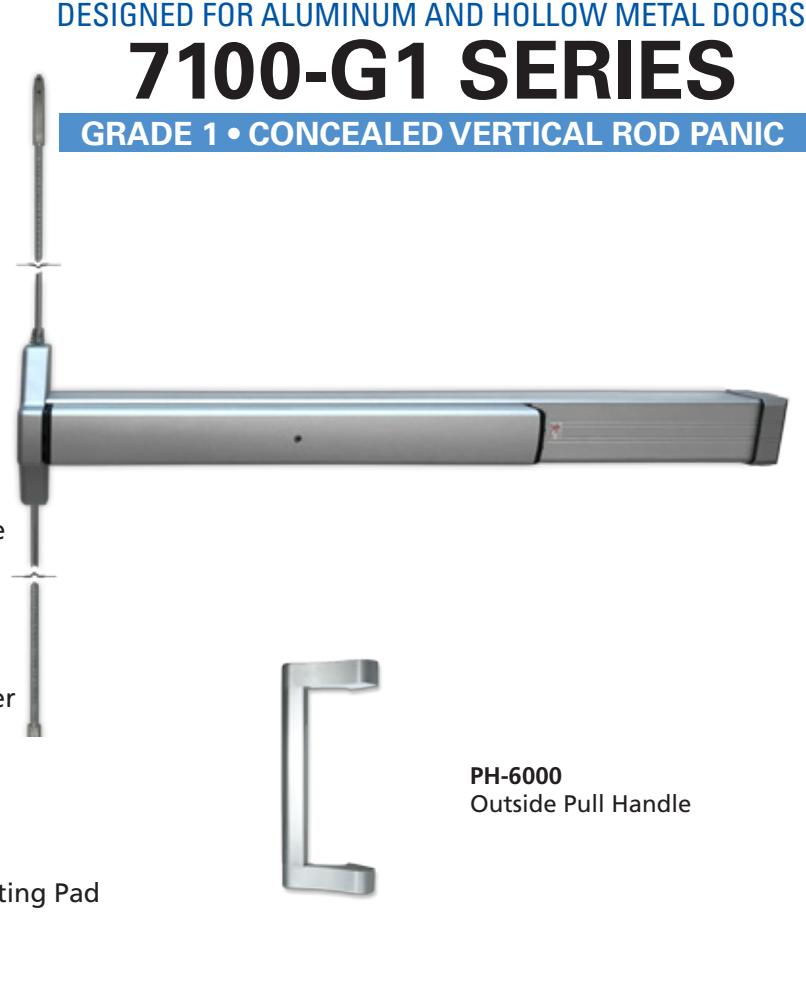

IDC 7100-G1 Seris Concealed Vertical Rod Exit Device Specification Sheet
Open the original PDF document
View PDF
FEATURES
- Grade 1 Concealed Vertical Rod Panic
- Underwriter's Laboratories Inc. Listed Panic Hardware
- For use with narrow, medium and wide stile Aluminum doors
- Non-handed, Field Reversible for LHRB or RHRB doors
- Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in TouchBar
- Top Steel Toggle Latch and Bottom Steel Rod Latch Bolt
- Units use Standard Mortise Cylinder with MS Type Cam and M P-6182 Cylinder Mounting Pad
- Standard Units for 36"and 48"door widths (cut bar to fit) and up to 84" in height
- Can be used on 30" wide doors
FINISHES
- AL ALUMINUM- Anodized extruded Aluminum with Baked Aluminum Painted Cover Caps
- DU- STOREFRONT BRONZE- Bronze Anodized extruded Aluminum with Baked Storefront Bronze Painted Cover Caps
- WARRANTY: Refer to inside front cover
- US AND FOREIGN PATENTS
MP-6182 Cylinder Mounting Pad with Locking Ring
Pull Handle Mounting Plate for Metal Doors
MP-6000
CZ-1001 Mortise Cylinder
