BENEFITS

• Universally compatible with all automatic doors

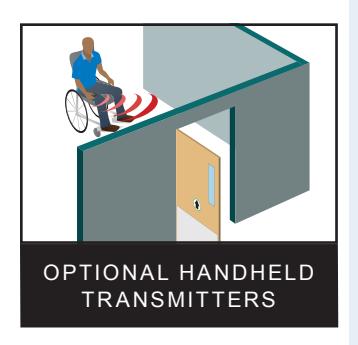

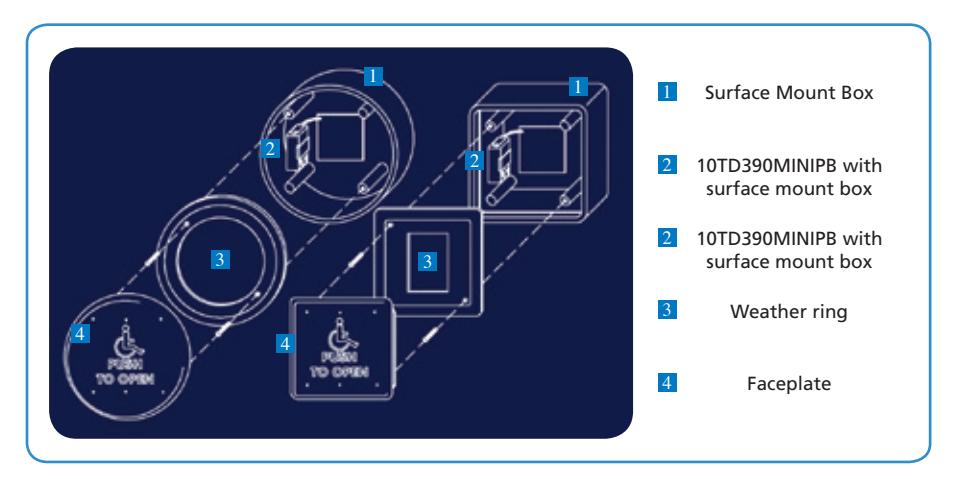

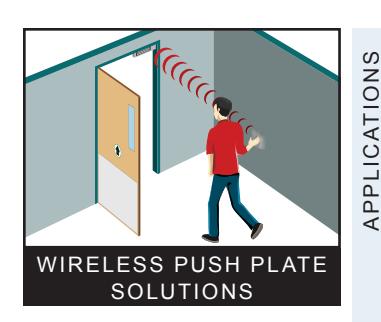

• Compatible with handheld transmitters and push plates
• Field replaceable 9 V battery

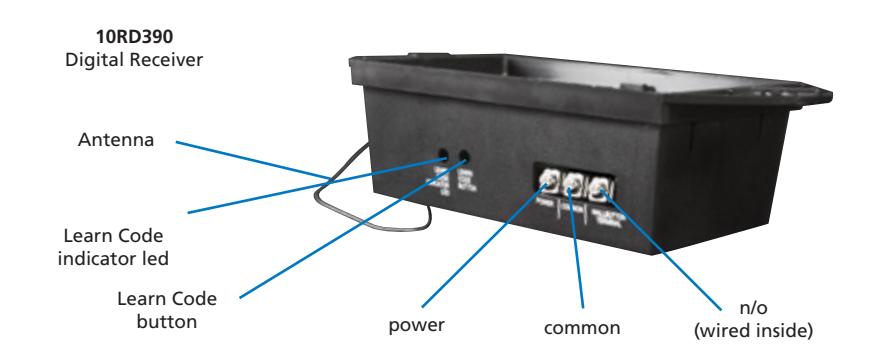

RECEIVER FEATURES

TECHNICAL SPECIFICATIONS

Frequency	390 MHz
Radio Control Type	Digital
Emitted Radio Power	N/A
Power Consumption	N/A
Input Voltage	24 VAC / VDC
Operating Temperature	+14ºF to +131ºF
Max. Transmitters per Receiver	7 programmed transmitters
LED Functionality	RED = Receiver Learn / Output Activation
Certifications	CE, FCC, IC
Receiver Dimensions (L×W×H)	7.5" × 3.375" × 2.0"

Specifications are subject to change without prior notice.

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided «as is» without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to which the information refers. / IDC has the right without liability to change descriptions and specifications at any time. / Prices, shipping and availability are subject to change without prior notice.

433 MHZ TRANSMITTERS & RECEIVERS

RF-433 DIGITAL RADIO TRANSMISSION

FEATURES

• Uses a rolling code each time a transmitter is activated
• Delay or no delay programming options (i.e. vestibule applications)
• Up to 100 transmitters can be programmed into a single receiver
• Can remove transmitter codes individually or all at once

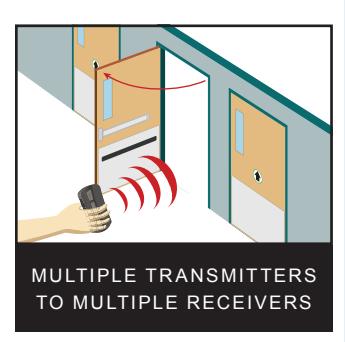

• Individual transmitters can be programmed to an unlimited number of receivers
• The red LED on the transmitter confirms transmission and battery life
• The red LED on the receiver confirms transmission and provides troubleshooting assistance

Easy Installation And Programming

IDC's 433 MHz, digital, radio-control transmitters and receivers are universally compatible with any type of automatic door application.

The RF–433 series provides both reliability and efficiency in a wide range of wireless applications.

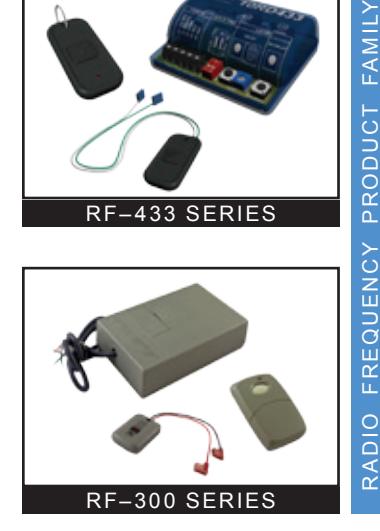

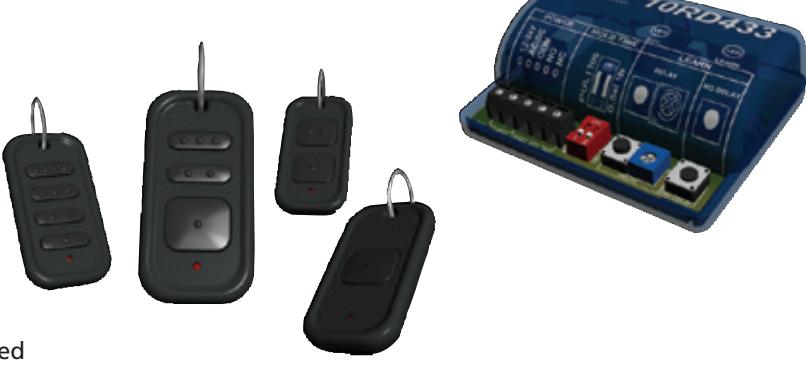

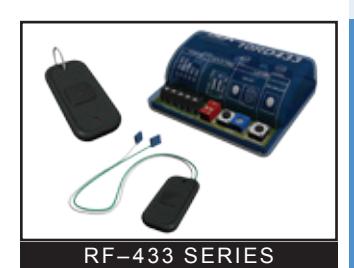

RF–433 Series

10RD433 433 MHz Receiver

10TD433HH3 Three Button Wireless

10RD433EH Extended Hold Time Receiver

10TD433HH4 Four Button Wireless

10TD433HH1 One Button Wireless

10TD433HH2 Two Button Wireless

10TD433PB3V One Button, 3-Volt Hard Wired

10TD433PB9V One Button, 9-Volt Hard Wired

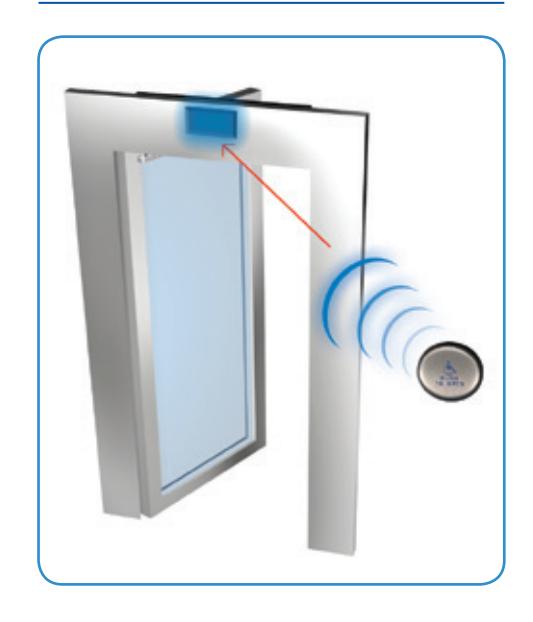

How It Works
