IDC 300 Transmitters Specification Sheet

Open the original PDF document

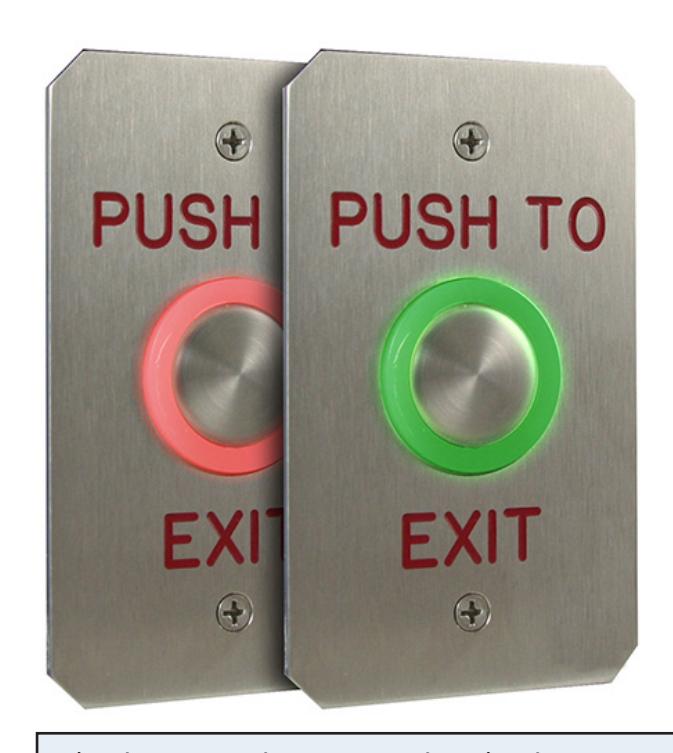

THE PIEZO SWITCH

ACCESS CONTROL

TECHNICAL SPECS

VOLTAGE INPUT MATERIAL

12 TO 24 VDC Stainless Steel Faceplate HOLD TIME Plastic Transparent Light Ring

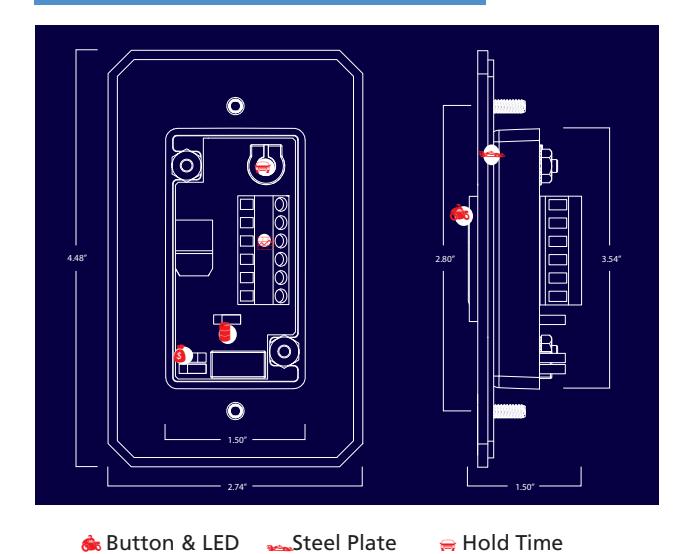

1 second to 40 seconds DIMENSIONS CURRENT $2\frac{3}{4}$ " x $4\frac{1}{2}$ " x $1\frac{1}{4}$ " LEDs ON 3/8" cut corners

40 mA (Idle), 60mA (Active) WEIGHT LEDs OFF 8.0 oz (220 g) 10 mA (Idle), 40mA (Active) COMPATIBILITY

Most Single Gang Boxes

COMPONENTS

The Piezo Button incorporates piezoelectric technology to convert physical

Touch (pressure) of the push button from mechanical to electrical energy. Status illumination can be set to red, green, or no illumination
Selectable Fail Safe and Fail Secure options
Hold timer lasts from as little as 1 second to as much as 40 seconds
The Piezo button provides for a NO / NC contact
Stainless steel construction is designed for all weather use
Designed specifically for Request to Exit / access control applications
· Button switch life exceeds 1 billion cycles

™ Terminal Block Safe / Secure LED Control

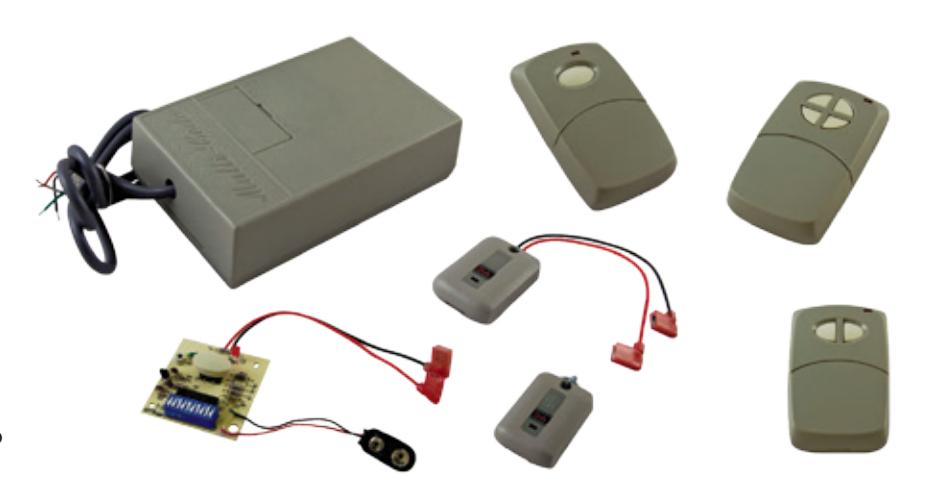

300 MHZ TRANSMITTERS & RECEIVERS RF-300

DIGITAL RADIO TRANSMISSION

Easy Installation And Programming

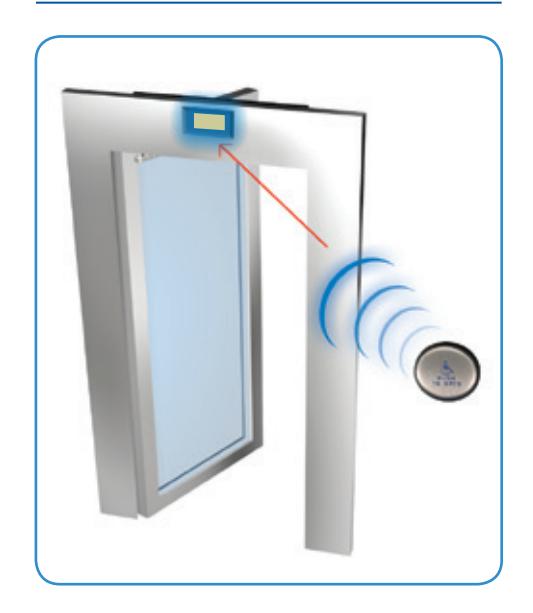

IDC's 300 MHz frequency analog radio control transmitters and receivers are universally compatible with any type of automatic door application. With the ability to recognize 1,024 unique codes per receiver, the RF–300 offers an easy-to-install alternative and makes adding new transmitters simple.

FEATURES

Hand-held transmitters outfitted with flag connectors, plug directly into most of IDC's push plate switches.
Analog radio control for strong, short-range, transmissions
Transmitters are programmed to the receiver through dip switch settings which offer up to 1,024 unique identifier codes.
