ALUMINUM • HOLLOW METAL • WOODEN FRAME APPLICATIONS

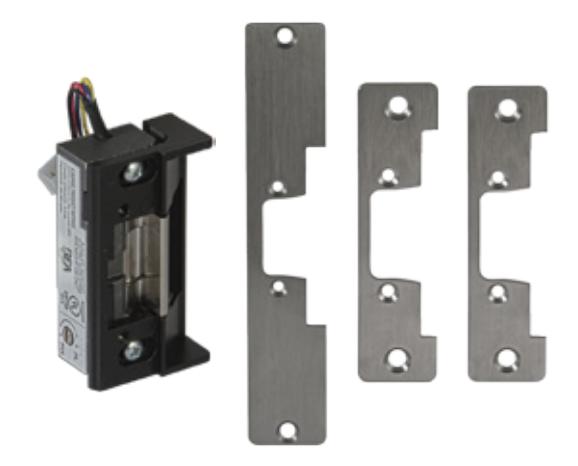

IDC-10STRIKE CU

UNIVERSAL CYLINDRICAL STRIKE

FEATURES

• • IDC-10STRIKE CU
• UL/ULC listed for up to 1500 lbs of static strength
• Conventional keeper design promotes even-load distribution in the event of a forced entry
• Reinforced housing reduces twisting on imperfect frames
• Brushed, US32D, stainless steel provides a complementary finish to existing door hardware.

VERSATILE & MODULAR DESIGN

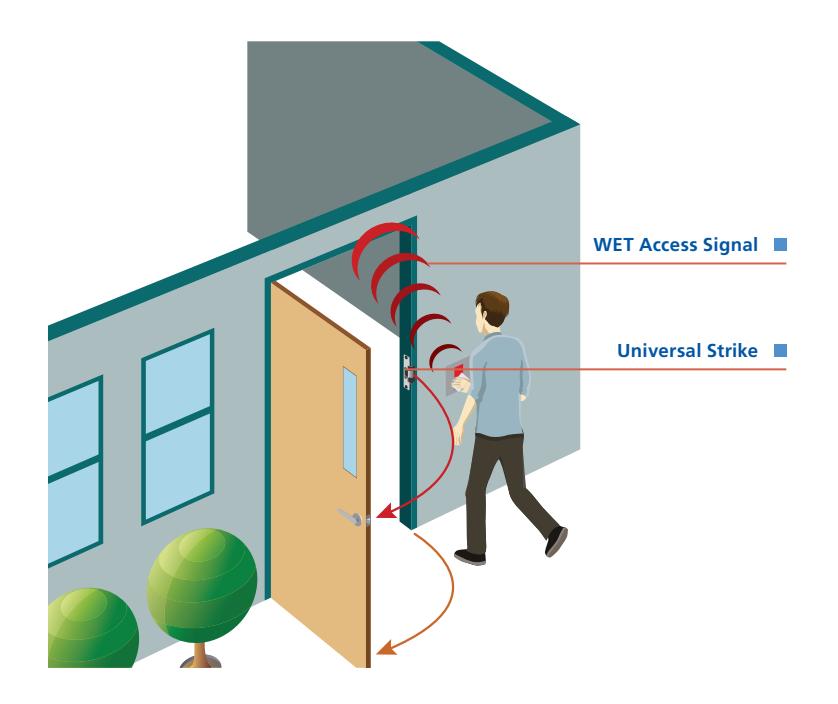

The Universal cylindrical strike provides controlled access and security for egress and ingress applications where code compliance and safety are paramount. This strike has been independently tested for 1 million + cycles of operation.

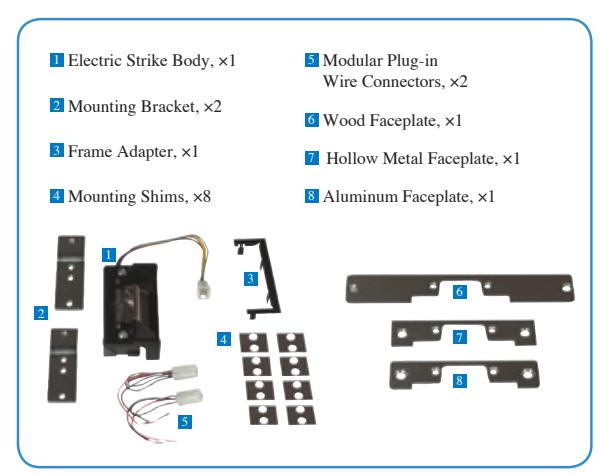

COMPONENTS

DOOR COMPATIBILITY

DOOR LOCK TYPE
Narrowline Aluminum	Cylindrical	Mortise	Rim Exit Device

DOOR FRAME TYPE
Narrowline Aluminum	Hollow Metal	Wood

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737 COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

REX DETECTOR

APPLICATIONS

• Healthcare / Assisted Living
• Transportation
• Retail

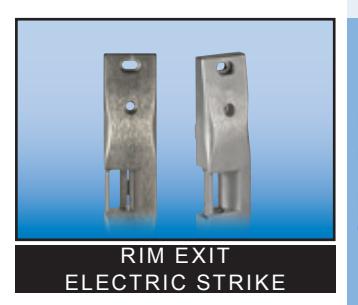

APPLICATIONS STRIKE FAMILY

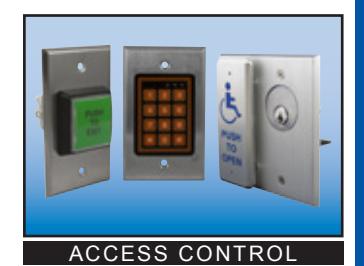

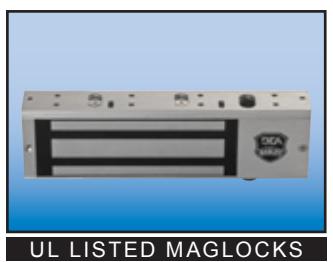

RELATED PRODUCTS

• Education

• Government
• Multi-Family Housing
• Hospitality
• Institutional

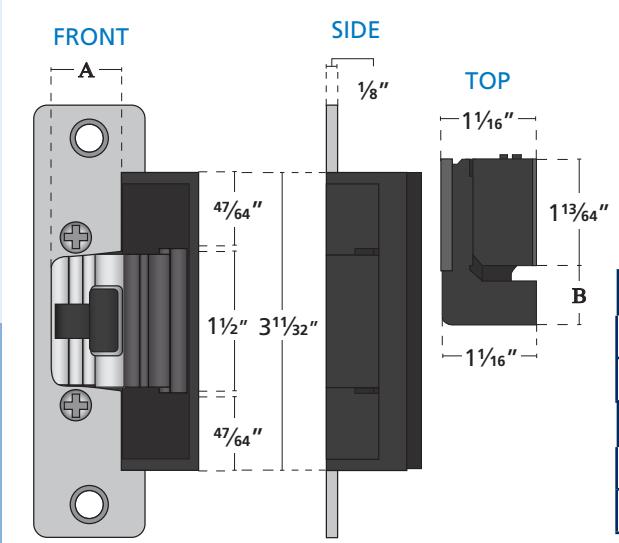

STRIKE DIMENSIONS

HORIZONTAL ADJUSTMENT

A	Default	Min	Max
Inches	13⁄16"	45⁄64"	31⁄32"
Millimeters	20.64 mm	17.86 mm	24.61 mm
B	Default	Min	Max
Inches	21⁄32"	1⁄2"	49⁄64"

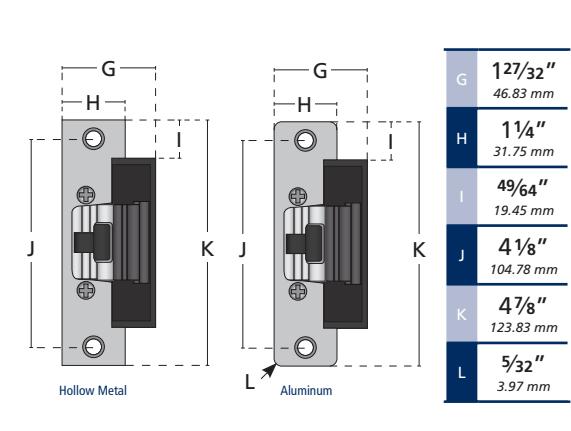

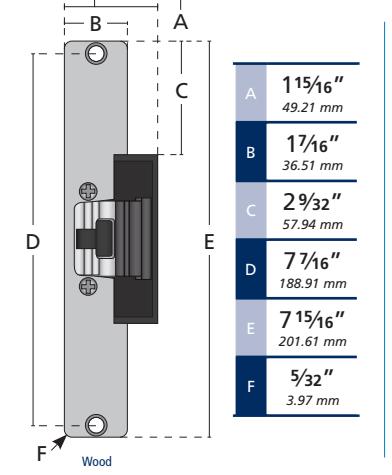

PLATE DIMENSIONS

T E C H N I C A L S P E C I F I C A T I O N S

Continuous Duty – Energized 1 minute or more

MODE	VOLTAGE	DUTY	SOUND	AMPS†	OHMS‡
Fail Safe Fail Secure	12 VDC	Continuous	Silent	0.375	37
Fail Safe Fail Secure	24 VDC	Continuous	Silent	0.190	148
Fail Safe Fail Secure	12 – 24 VAC	Intermittent	Buzz	0.280 – 0.565	37
Intermittent Duty – Energized less than 1 minute with duty ratio 1:5		† Amp ratings are based on maximum current draw at +50ºF and include initial power-up current

Specifications are subject to change without prior notice.

‡ Nominal resistance at +77ºF ±7% tolerance
