IDC 10 Bollard Specification Sheet
Open the original PDF document
View PDFWIRELESS ACTIVATION
RELATED PRODUCTS

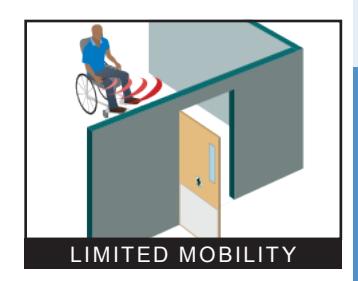

APPLICATIONS
RADIO FREQUENCY PRODUCT FAMILY
10RD900 900 MHz Receiver Module

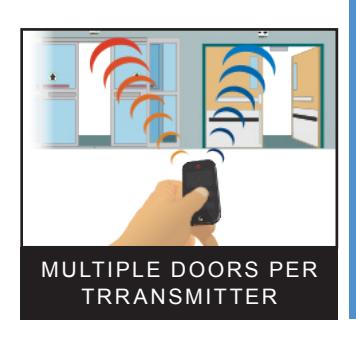

10TD900HH1 1-Button Transmitter
10TD900HH2 2-Button Transmitter
10TD900HH3 3-Button Transmitter
10TD900HH4 4-Button Transmitter
10TD900PB Hardwire Transmitter
10TD900TR 900 MHz Retrofit Transmitter
TECHNICAL SPECIFICATIONS
| Frequency | 908-918 MHz (frequency hopping) |
|---|---|
| Emitted Radio Power | −25 dBm (TX) |
|
Power Consumption
RD900 TD900HHx TD900PB TD900RT |
40 mA
30 mA 30 mA 22 mA |
| Input Voltage | 12-24 VAC / DC |
| Contact Rating |
1.0 A @ 30 VDC
0.5 A @ 125 VAC 0.3 A @ 60 VDC |
| Operating Temperature | +14ºF to 131ºF (-10ºC to 55ºC) |
| Programmable Units Per Receiver | 75 |
|
LED Functionality

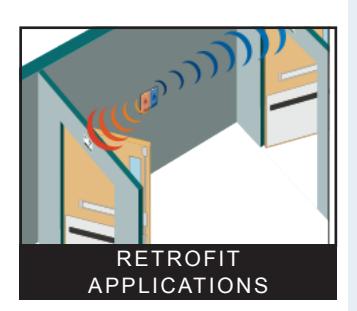

Red Blue Tri-color |
Receiver Learn
Relay Activation Signal Strength |
|
Dimensions
RD900 TD900HHx TD900PB TD900RT |
2.5" (W) × 2.0" (D) × 0.75" (H)
2.75" (W) × 1.38" (D) × 0.56" (H) 1.75" (W) × 1.0" (D) × 0.3" (H) 1.72" (W) × 1.06" (D) × 0.32" (H) |
| Certifications | FCC, IC |
FEATURES
Constructed with durable carbon steel and will mount IDC 4 ¾" square and 4 ½" round push plate lines
- Can be mounted on either existing concrete or newly poured concrete
- Available in silver, bronze, and black
- Stainless steel mounting bracket
- UV Resistant ABS plastic cap allowing for wireless transmissions
CAP MOUNTING SCREWS (3) WASHERS (3) PLASTIC CAP TRANSMITTER MOUNTING TRAY (HIDDEN) NOT USED WITH PANTHER APPLICATION PUSHPLATE (NOT INCLUDED) WILL ACCEPT: 4 ½" SQUARE PUSHPLATE 4 ¾" SQUARE PUSHPLATE 4 ¾" SQUARE PANTHER PUSHPLATE DUAL VESTIBULE PUSHPLATE 4 ½" ROUND PUSHPLATE POST ASSEMBLY POST MOUNTING POST MOUNTING BRACKET (HIDDEN) PUSHPLATE MOUNTING BRACKET (HIDDEN)
THE BOLLARD LOW ENERGY DOOR ELECTRONICS
EASY INSTALLATION MULTIPLE APPLICATIONS VERY DURABLE
The Bollard is used for mounting pushplates that activate automatic doors.
It will accept IDC's 4 ½" Square Pushplate, 4 ¾" Square Pushplate, 4 ¾" Panther Pushplate, Dual Vestibule Pushplate and 4 ½"Round Pushplate. The post is made of durable carbon steel and the mounting bracket is made of stainless steel for strength. It can be mounted on either existing concrete or newly poured concrete.

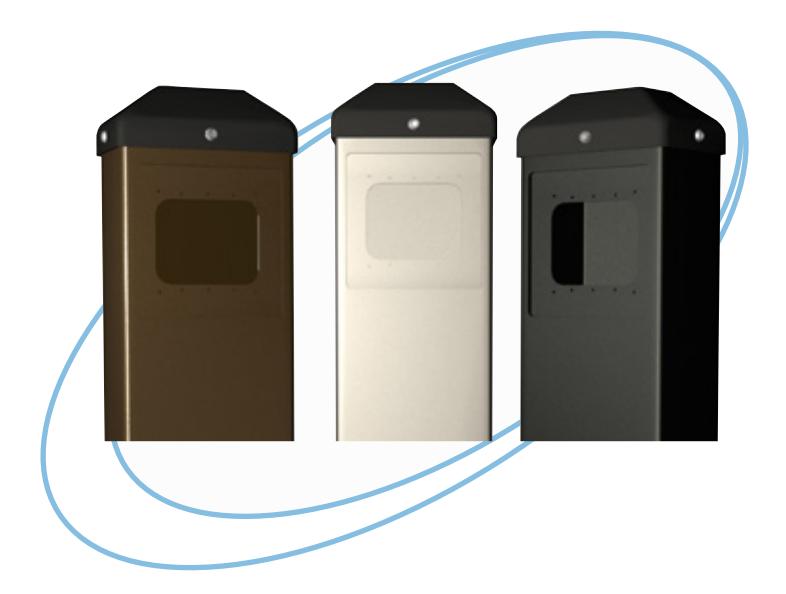

- 10BOLLARDBLK Black
- 10BOLLARDBRZ Bronze
- 10BOLLARDSLV Silver
SCREWS (4)
