I0820 Rev0 SV Series Cylindrical Lockset 2 3-4 BS
Open the original PDF document

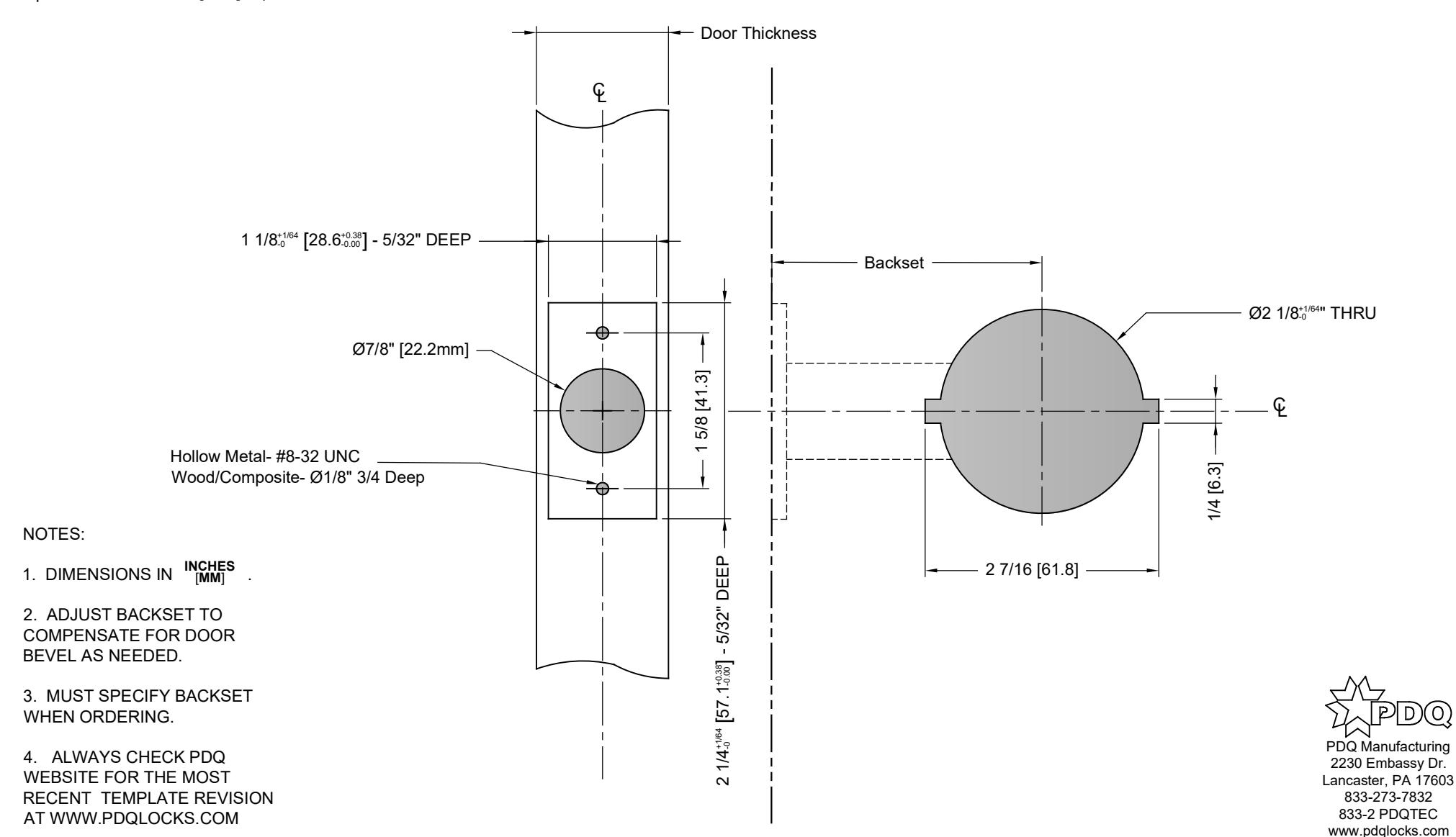

View PDFSV Series Cylindrical Lockset
Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door
Door Thickness: 1 3/8" [34.9] - 1 3/4" [44.5] Backset: 2 3/4" [60.3] - 5" [127] Faceplate: 1 1/8" [28.6] Square Corner
TEMPLATE: 10820
REV. 0 6-12-19
