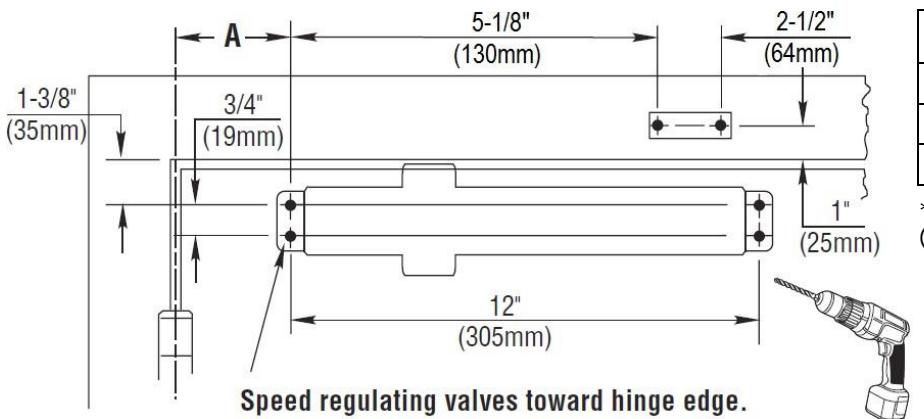

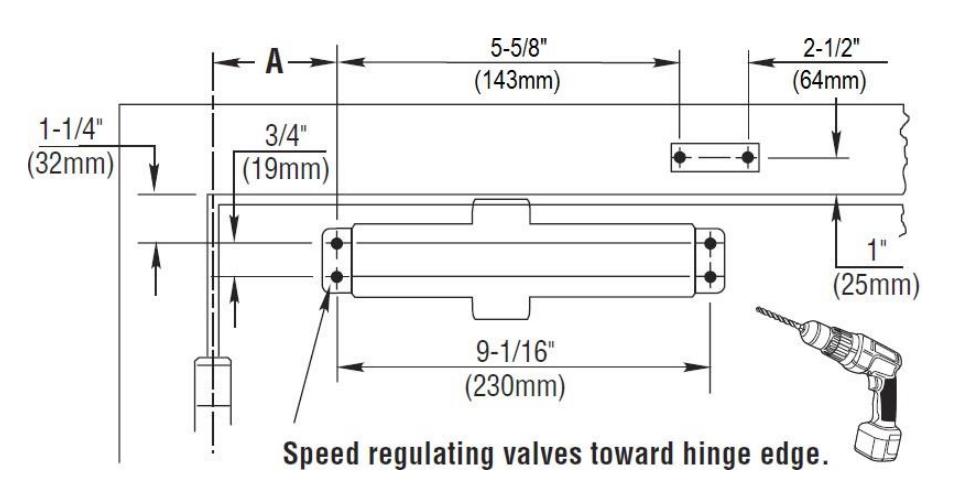

Regular Arm Mount

5300

Door Opening	Dimension "A"
To 100	7" (178mm)
101 to 120	6" (152mm)
121 to *180	3-1/2" (89mm)

^* Door/Wall/Hardware/Jamb (conditions permitting)

5200

Door Opening	Dimension "A"
To 100	7-1/2" (191mm)
101 to 120	6" (152mm)
131 to *180	4-1/2" (114mm)

^* Door/Wall/Hardware/Jamb (conditions permitting)

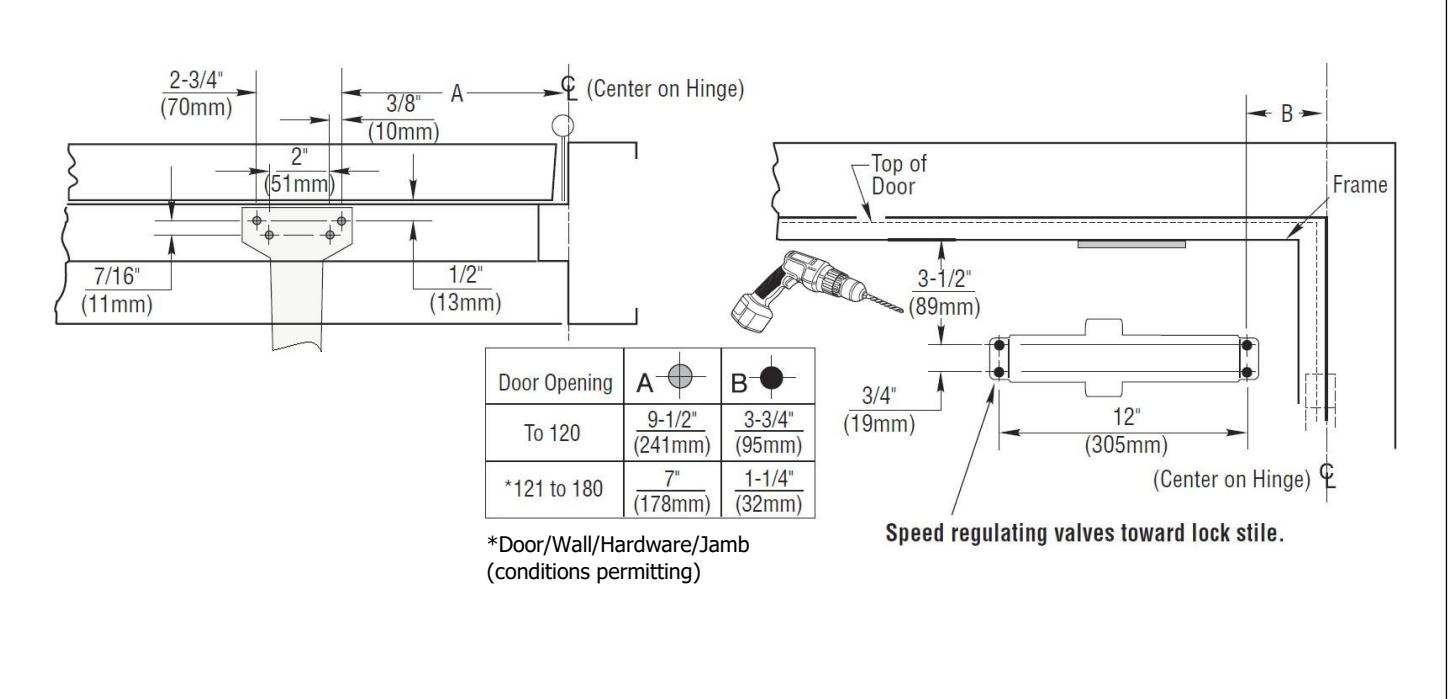

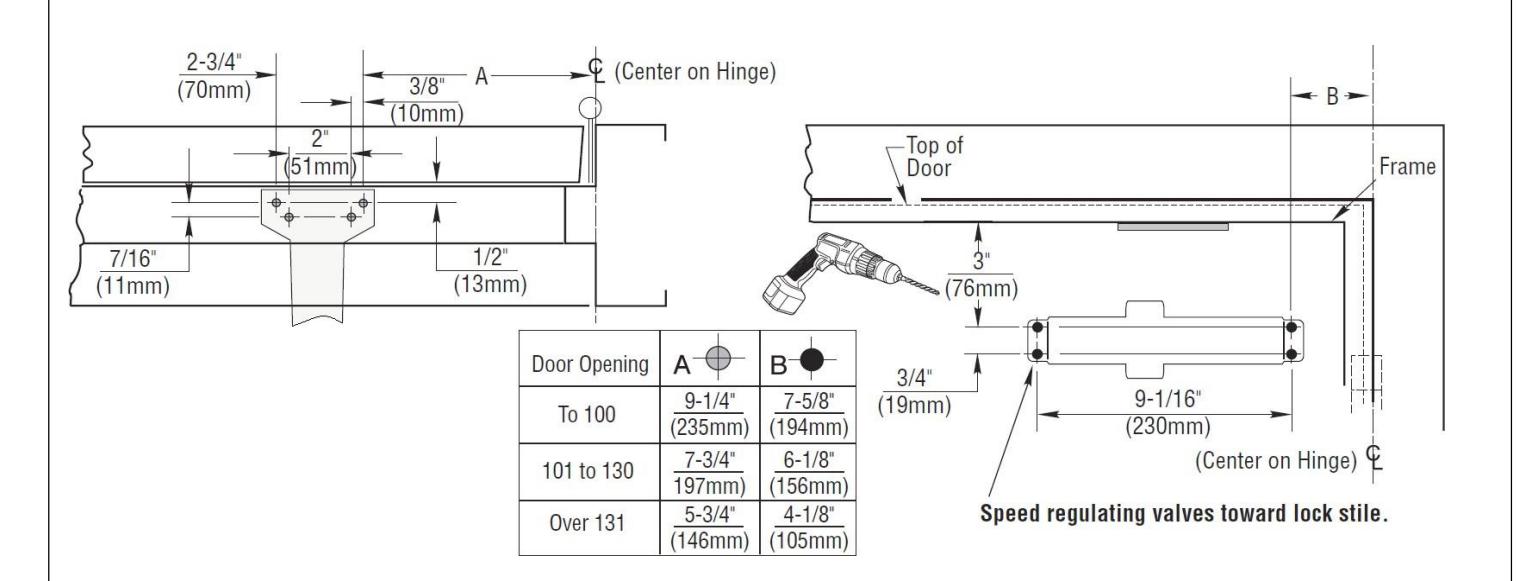

Parallel Arm Mount

5300

5200

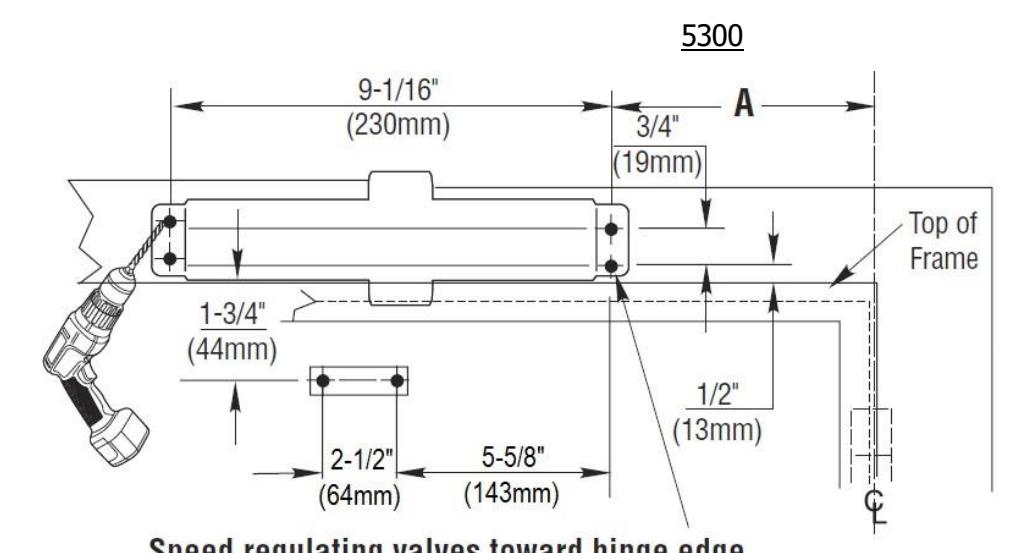

Top Jamb Mount

Door Opening	Dimension "A"
To 100	7-1/2" (191mm)
101 to 120	6" (152mm)
121 to *180	3-1/2" (89mm)

• *Door/Wall/Hardware/Jamb
• *Max Reveal is 2-5/8" (67mm)
• *At least three threads on the adjustment screw must stick through

	5200

Door Opening	Dimension "A"
To 100	7-1/2" (191mm)
101 to 120	6" (152mm)
121 to *180	4-1/2" (114mm)

*Door/Wall/Hardware/Jamb (conditions permitting) *Max Reveal is 2-5/8" (67mm)

*At least three threads on the adjustment screw must stick through

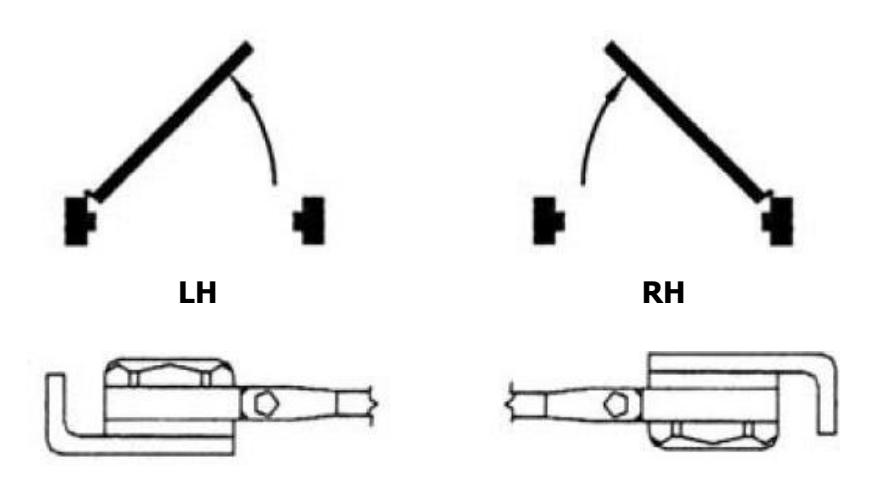

How to Adjust

Identify direction of hold-open nut according to hand of door and mount arm.

Adjust by loosening hold-open nut, then open door to desired position and tighten hold-open nut securely.
