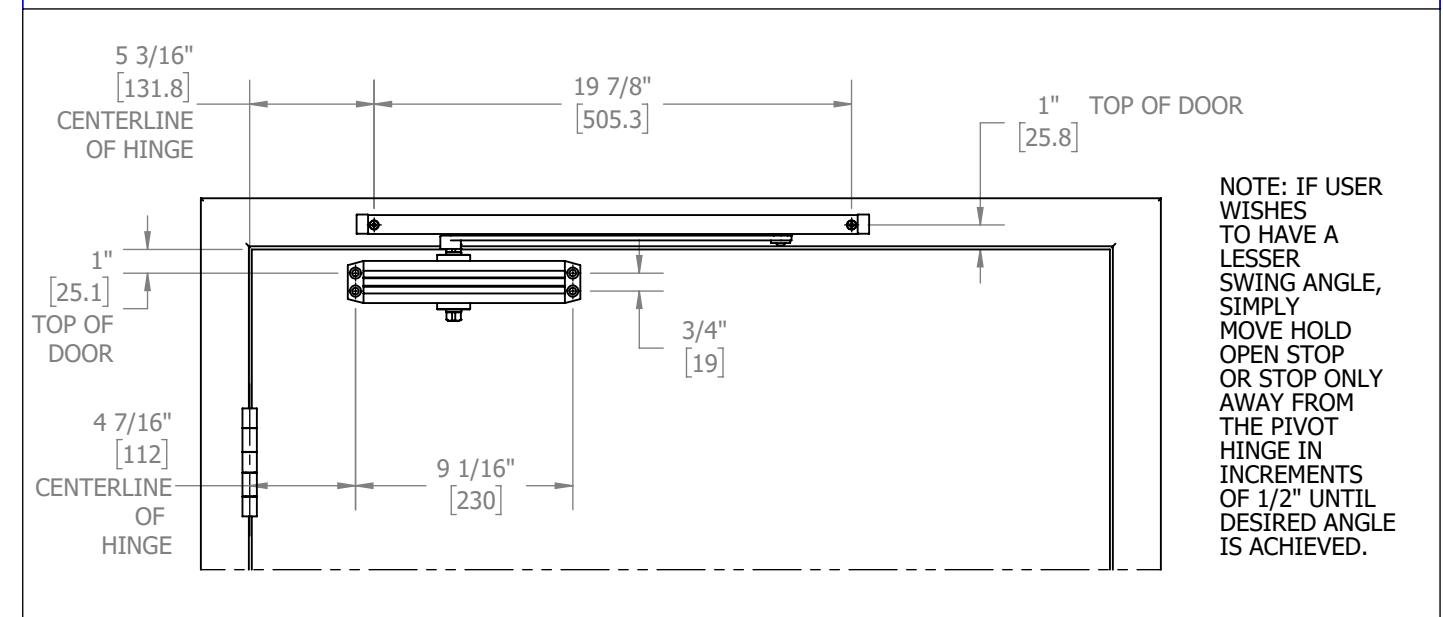

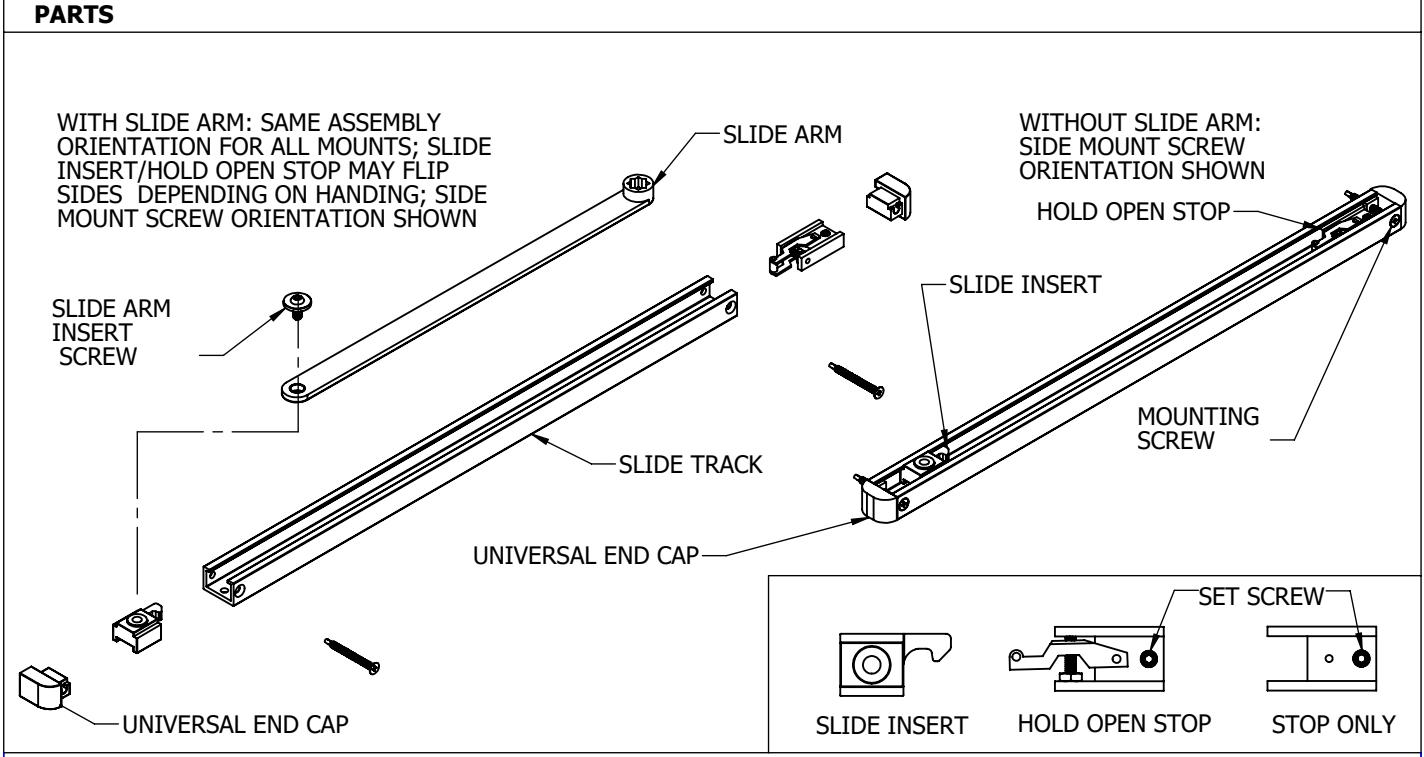

PULL SIDE APPLICATION (RIGHT HAND SHOWN) 120° DOOR PREP

Installation Sequence:

• 1. Use door prep above to locate holes on door and frame. Drill 1/8" pilot holes for the self tapping screws.
• 2. Fasten closer body to door with power adjustment port away from hinge.
• 3. Position slide track to frame face orientated with countersink visible open side facing down and with hold open stop end toward hinge edge of door. Slide end caps on, insert screw through end caps and fasten to the frame.
• 4. Place slide arm on pinion shaft of closer so arm is positioned at a 45 degree angle out from door face.
• 5. Secure arm with arm washer and arm screw.
• 6. To properly preload closer, push arm towards door and secure other end of slide arm to track by screwing it to the slide insert. Open door to required opening angle. Then slide stop only/hold open stop up against slide insert and tighten down the stop only/hold open stop via set screw.
• 7. Determine door width, adjust spring power of closer by referencing closer adjustments on page 4.

Installation Sequence:

• Use door prep above to locate holes on door and frame. Drill 1/8" pilot holes for the self tapping screws.
• Fasten closer body to door with power adjustment port towards hinge. 2.
• 3. Position slide track to frame face orientated with countersink visible open side facing down and with hold open stop end toward hinge edge of door. Slide end caps on, insert screw through end caps and fasten to the frame.
• 4. Place slide arm on pinion shaft of closer so arm is positioned at a 45 degree angle out from door face.
• 5. Secure arm with arm washer and arm screw.
• To properly preload closer, push arm towards door and secure other end of slide arm to track by screwing it to the slide insert. Open door to required opening angle. Then slide stop only/hold open stop up against slide insert and tighten down the stop only/hold open stop via set screw.
• 7. Determine door width, adjust spring power of closer by referencing closer adjustments on page 4.

PUSH SIDE APPLICATION (RIGHT HAND SHOWN) 120° DOOR PREP

Installation Sequence:

• Use template to locate holes on door and frame. Drill 1/8" pilot holes for the self tapping screws.
• 2. Fasten closer body to door with power adjustment port towards hinge.

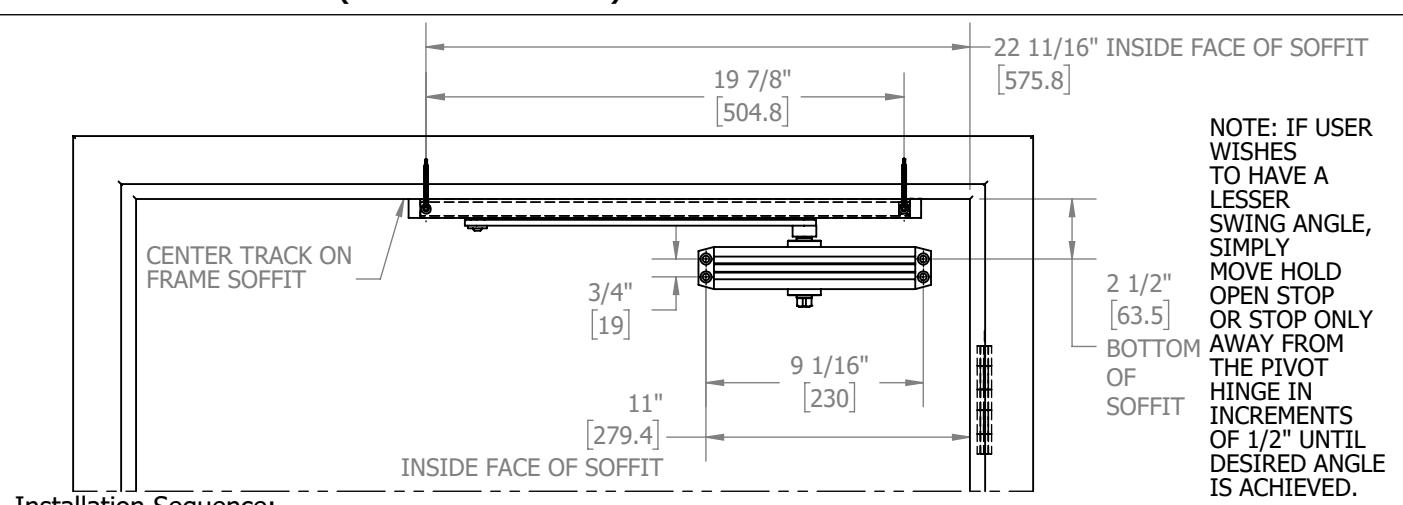

• 3. Position slide track to frame soffit with open side facing down and with hold open stop end toward
• hinge edge of door. Slide end caps on. Install screw up through end caps and fasten to the frame. Connect slide arm to track by screwing it to the slide insert. DOOR MUST REMAIN IN CLOSED POSITION FOR FOLLOWING ASSEMBLY STEPS. 4.
• 5. Swing arm toward closer and rest the hub of the arm on top of the closer pinion. Place a wrench on the bottom pinion of the closer and rotate away from the hinge (approx. 30 degrees). When the cutout of the arm hub and the pinion line up, slide the arm hub down over the pinion and secure tightly with the washer and screw. This pretensions the closer arm.
• Open door to required opening angle. Then slide stop only/hold open stop up against slider insert and 6. tighten down the stop only/hold open stop via set screw.
• 7. Determine door width, adjust spring power of closer by referencing closer adjustments on page 4.

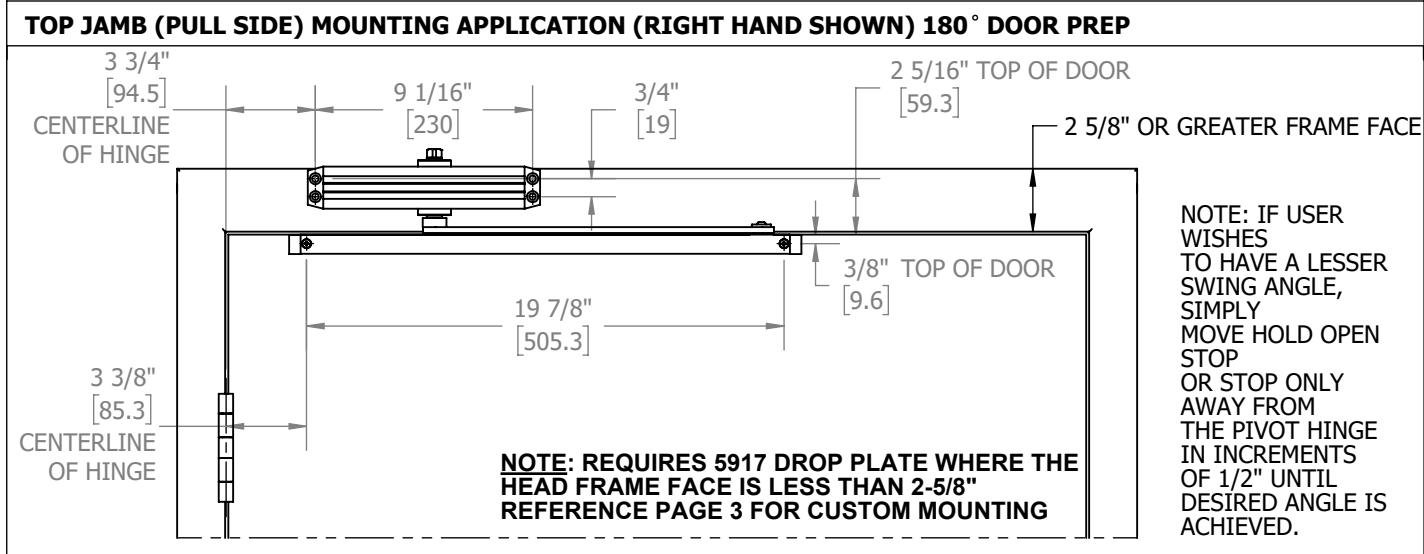

Installation Sequence:

• 1. Use door prep above to locate holes on door and frame. Drill 1/8" pilot holes for the self tapping screws.
• 2. Determine door width, adjust spring power of closer by referencing closer adjustments on page 4.

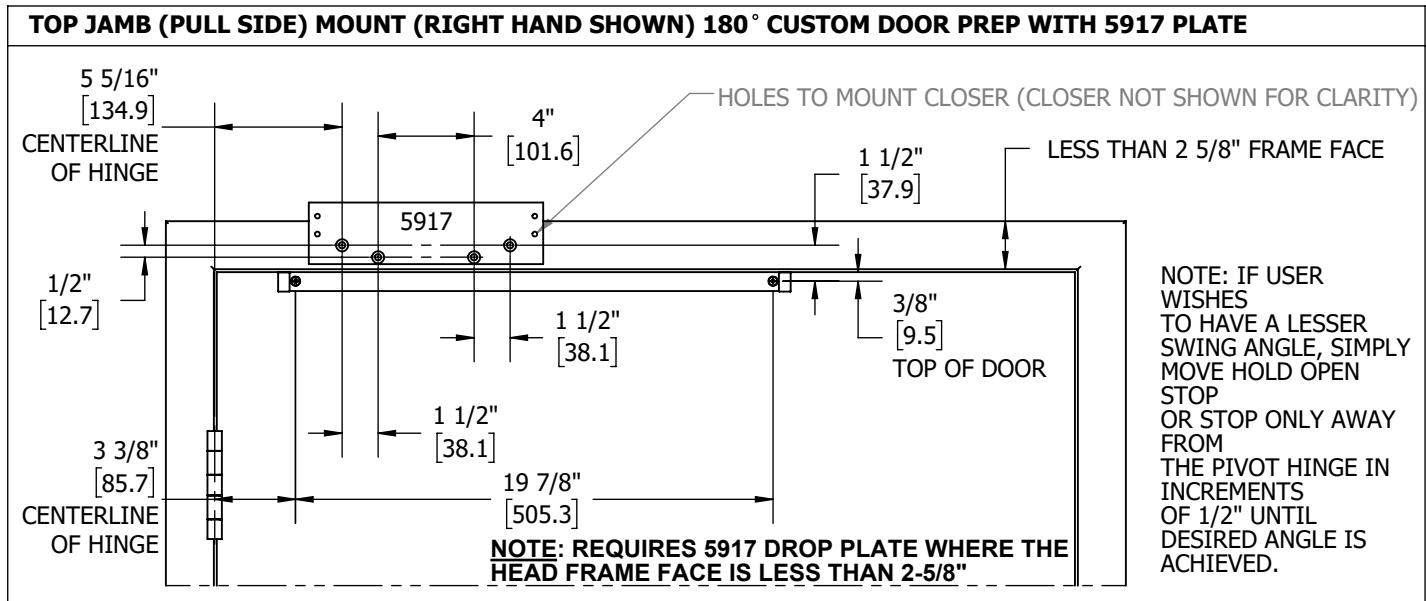

3. Fasten closer body to 5917 plate with power adjustment port away from hinge.

• 4. Position slide track to door face with open side facing up and with hold open stop end toward hinge edge of door. Slide end caps on, orientated with countersink visible. Insert screw through end caps and fasten to the door.
• 5. Place slide arm on pinion shaft of closer at preload of 45 degree angle out from door face.

6. Secure arm with arm washer and arm screw.

7. Push arm towards door and secure other end of slide arm to track by screwing it to the slide insert. Open door to required opening angle. Then slide stop only/hold open stop up against slide insert and tighten down the stop only/hold open stop via set screw.

Installation Sequence:

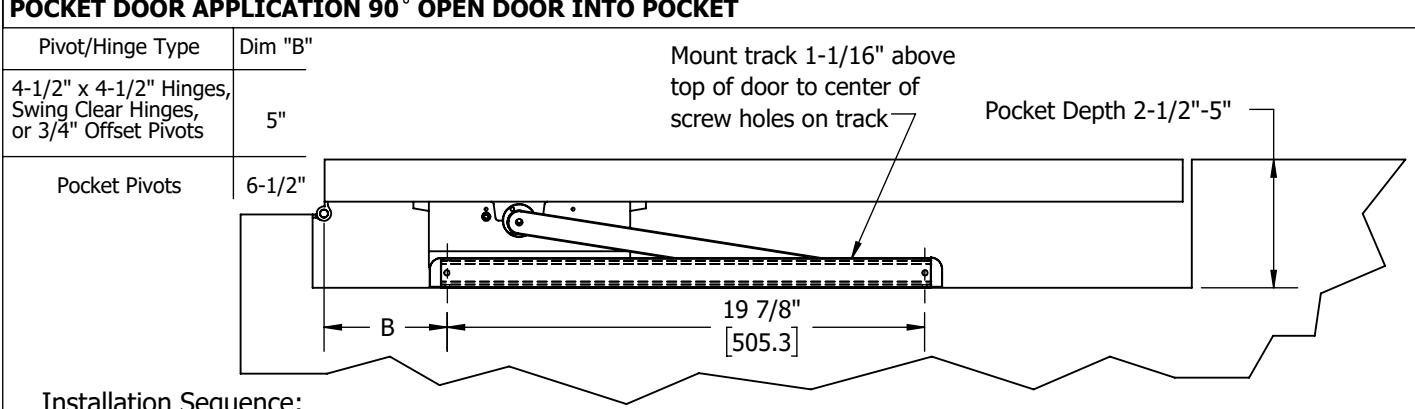

• 1. Use template above to locate mounting holes on pocket wall and mount closer according to pull side application template. Drill 1/8" pilot holes for the self tapping screws.
• 2. Determine door width, adjust spring power of closer by referencing closer adjustments on page 4.

3. Fasten closer body to door with power adjustment port away from hinge.

• 4. Fasten slide track to pocket wall face with open side facing down and with hold open stop end away from hinge edge of door. Slide end caps on, orientated with countersink visible. Screw will go through end caps as it fastens to the frame.
• 5. Connect slide arm to track by screwing it to the slide insert. DOOR MUST REMAIN IN CLOSED POSITION FOR FOLLOWING ASSEMBLY STEPS.
• 6. Swing arm toward closer and rest the hub of the arm on top of the closer pinion. Place a wrench on the bottom pinion of the closer and rotate away from the hinge (approx. 30 degrees). When the cutout of the arm hub and the pinion line up, slide the arm hub down over the pinion and secure tightly with the washer and screw. This pretensions the closer arm.
• 7. Loosen the stop only/hold open stop and open door to required opening angle. Close the door. Now slide the stop only/hold open stop back towards the hinge about 1/2" and tighten down the stop only/hold open stop via set screw.

5300 DOOR CLOSER ADJUSTMENTS

ADJUSTMENTS (USE 5/32" HEX WRENCH FOR THESE ADJUSTMENTS)

Note: Adjust closing time speed to between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.

Adjust latch speed so door completely closes and latches.

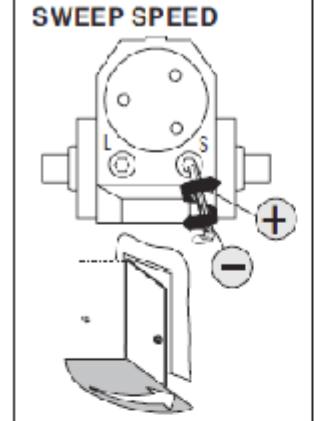

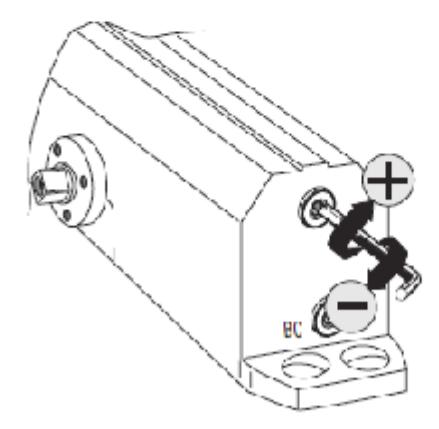

BACKCHECK

Adjust backcheck accordingly to prevent excessive opening speed.

SPRING POWER ADJUST (Sizing in accordance to BHMA/ANSI 156.4)

(Use 5/32" Hex Wrench for this adjustment)

TABLE OF SIZES

Closer is shipped set to size 3. To change the closer size, use a hex wrench to rotate the spring power adjust. Follow the chart to make the correct numbers of 360° turns to set the closer size appropriately for the door application.

The number of turns is an approximation and does not account for environmental or door hardware affects.

Approx. 5 turns to increase / decrease one size.

cw - clockwise ccw = counterclockwise

Exterior (and Vestibule) Door Width

Minimum Door Width (24")

24" - 30" - 36" - 42" - 48" (610mm) (762mm) (914mm) (1067mm) (1219mm)

Size 4 Size 3 Size 5 Size 6 Regular Arm & (10cw) Top Jamb (0)(5cw) (15cw) Size 4 Size 5 Parallel Arm (bow) (10cw) (15cw)

Interior Door Width

Minimilim (300) Wroth (240)

24" - 30" - 34" - 38" - 48" - 54" - 60" (010mm) (702mm) (805mm) (965mm) (1219mm) (1372mm) (1524mm)

Size 1 Regular Arm & Size 2 Size 3 Size 4 Size 5 Size 6 lop Jamb (10ccw) (5ccw) (0) (5cw) (10cw) (15cw) Size 2 (0) Şize 3 Size 5 (15cw) Size 1 Parallel Arm (10cw) (5ccw) (5cw)
