How to Order LOCKS 3800_HTO – LS_3800_HTO_v15.42

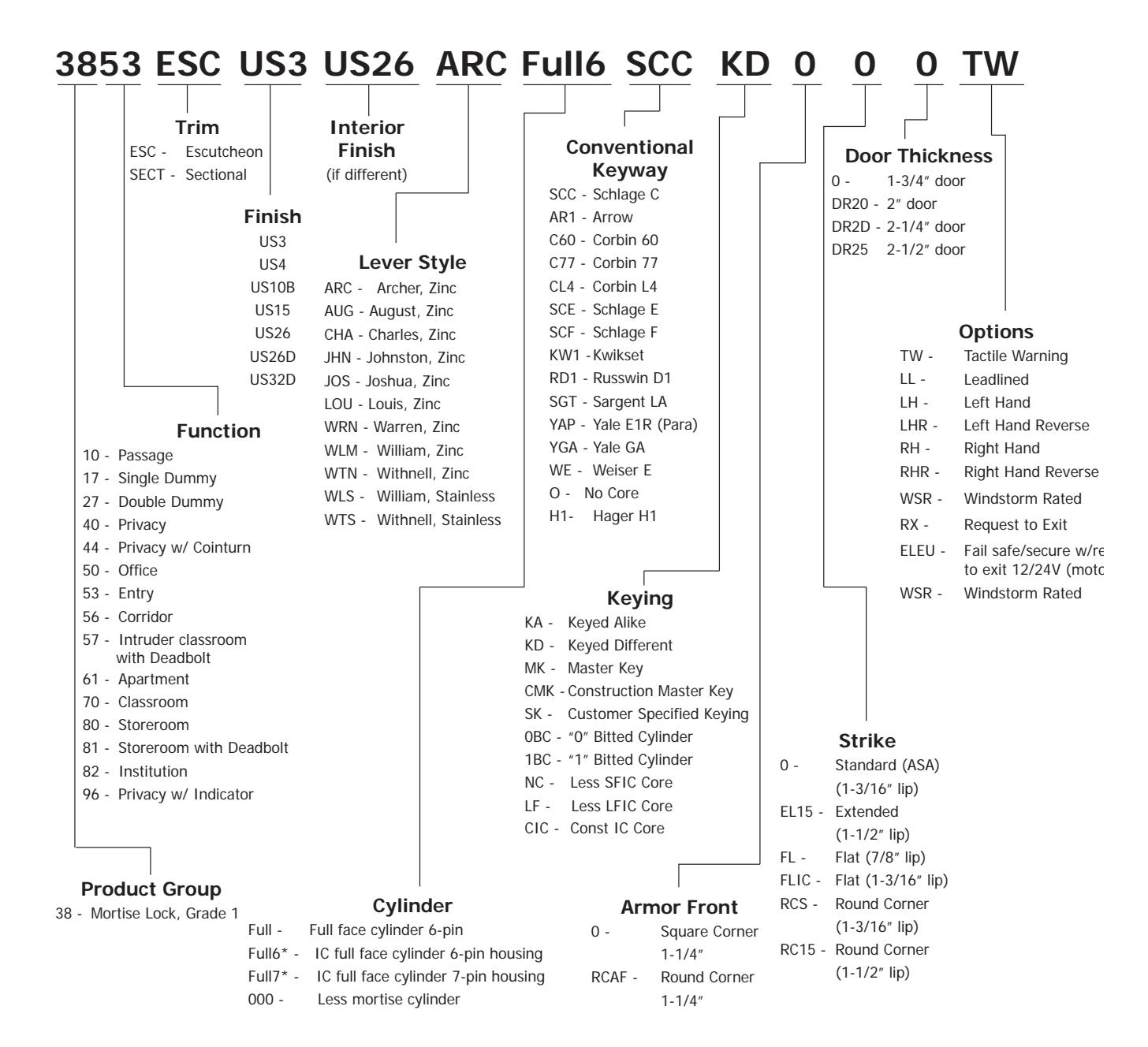

HOW TO ORDER EXAMPLE

Notes:

• Finishes other than US10B, US15, US26D and US32D are subject to 90 day extended lead time.
• If master-keyed, include master key instruction sheet with order (available online).
• · For additional keying information, refer to cylinder, core, and keying section of catalog.
• Quick Connect option available on 3800Series Electrified Sectional and Escutcheon models (EL, EU, RX, DPM, and LM). Ordering example: 3880 SECT US26D WTN ELEUQC
• Door width greater than 2-1/2", or doors with offset prep are POA with 90 day extended lead time.

Please refer to our Catalog or website (www.hagerco.com) for more detailed and series specific ordering information along with additional information including functions available, additional options, and keying information.
