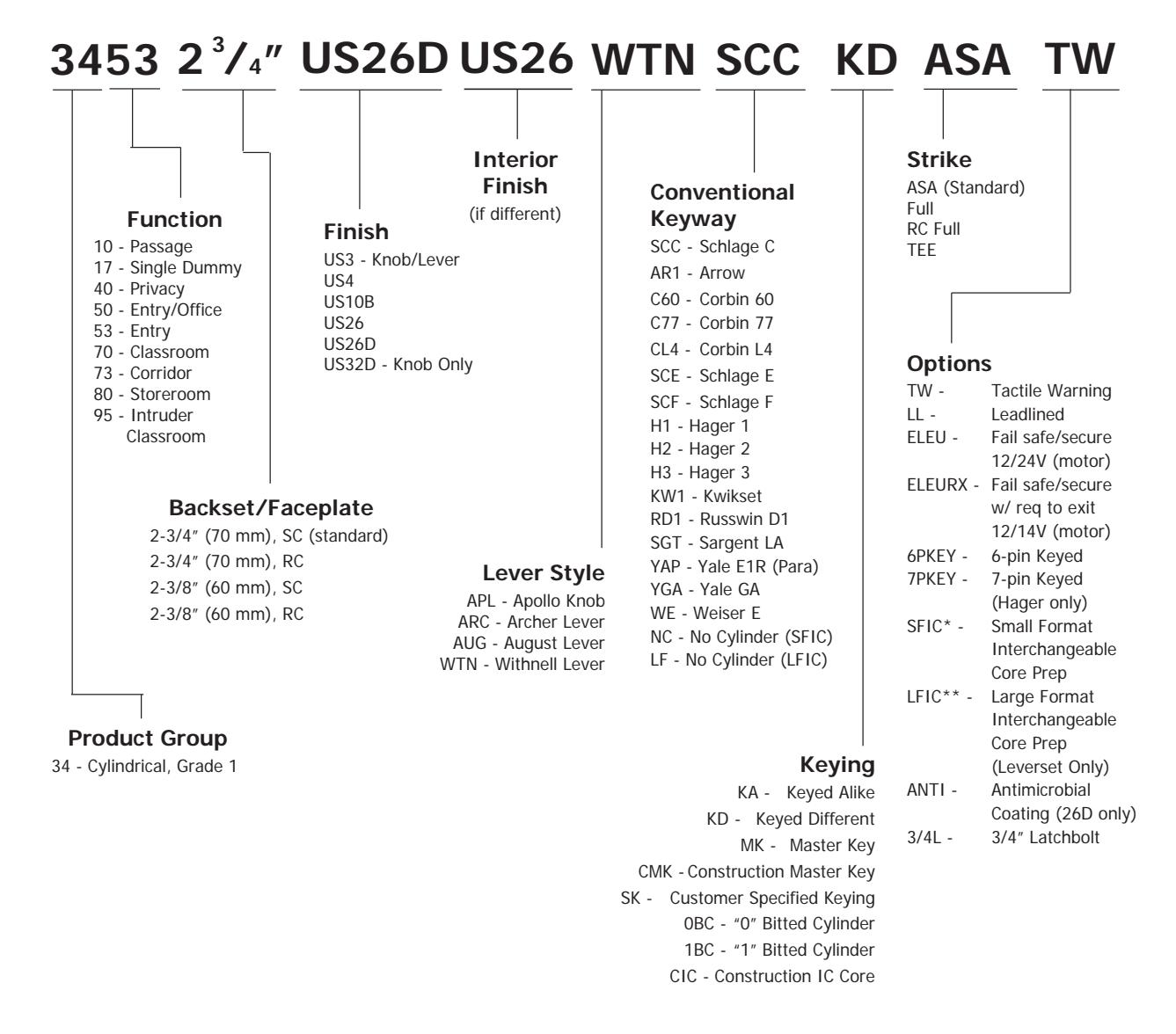

How to Order LOCKS 3400_HTO – LS_3400_HTO_v15.42

Notes:

• If master-keyed, include master key instruction sheet with order (available online).
• For additional keying information, please refer to cylinder, core, and keying section of catalog.
• Quick Connect option available on 3400 series electrified models (EL, EU, RX). Ordering example: 3480 2-3/4" US26D WTN SCC KD ASA ELEUQC.
• · Interchangeable construction core will be included with the lockset if "CIC" is specified in keying section. Customer must specify BLUE or RED color for SFIC.

Please refer to our Catalog or website (www.hagerco.com) for more detailed and series specific ordering information along with additional information including functions available, additional options, and keying information. Ordering forms such as Master Keying Instruction Sheet and Cylinder Instructions and Ordering Guide are also available on our website (www.hagerco.com).

^* Small format interchangeable core sold separately. Available in Best Keyways or Hager Keyways, A Standard. Ordering example: 3453 2-3/4" US26D WTN NC ASA SFIC.
