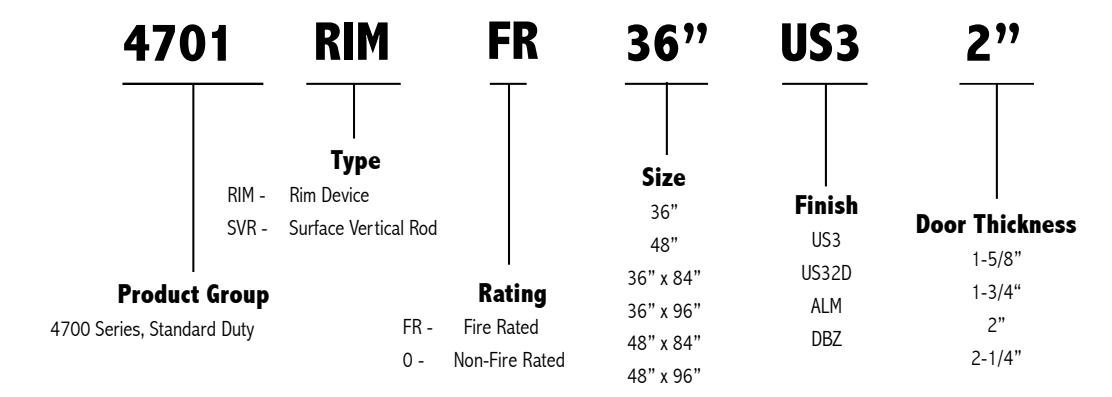

4700 SERIES EXIT DEVICE

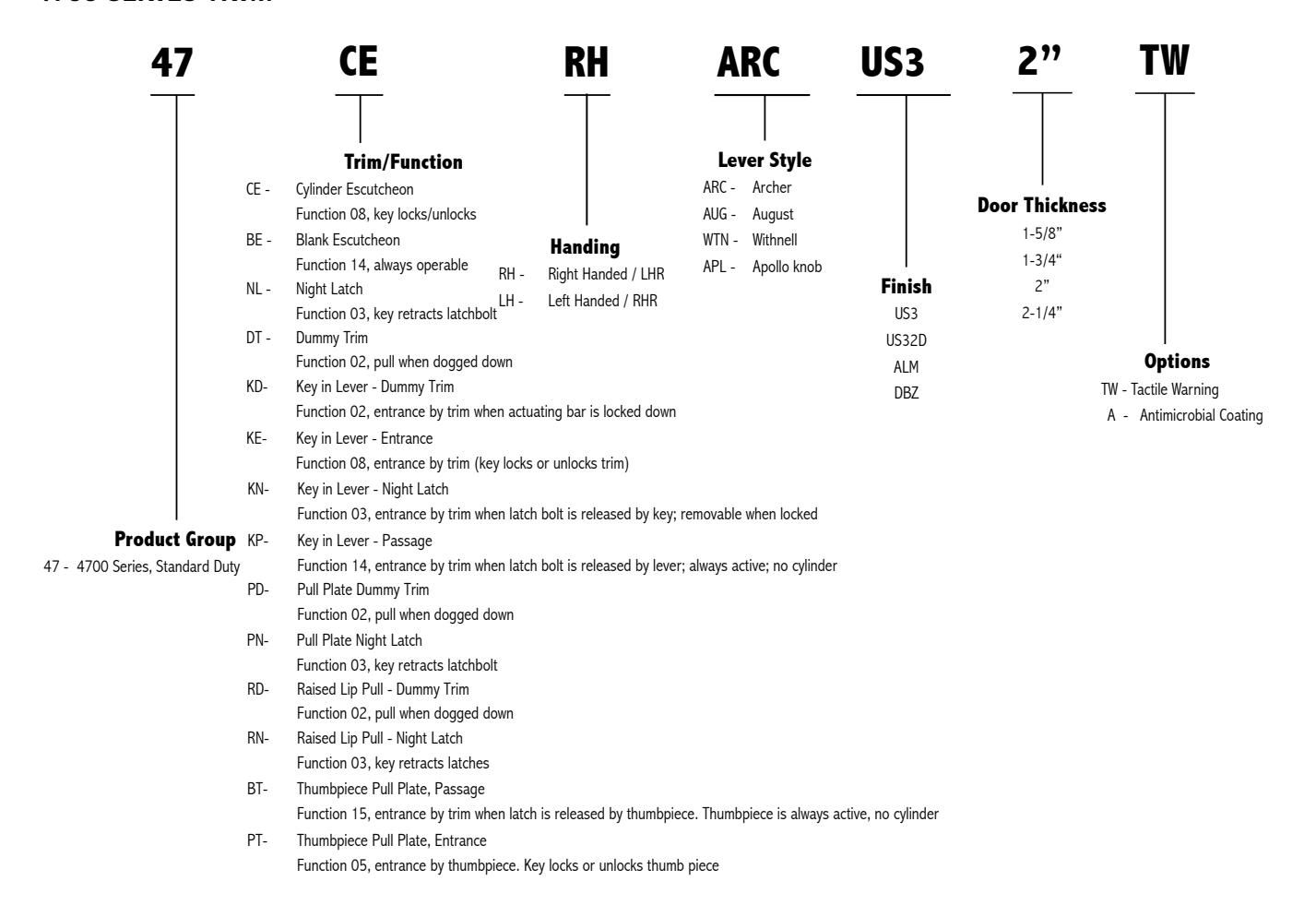

4700 SERIES TRIM

Notes:

  • 1. Handing is required for the 4700 Series trim.
  • 2. Cylinders sold separately.
  • 3. For more cylinder information, please refer to Cylinder, Core & Keying in the Locks section of the catalog.
  • 4. Maximum door thickness compatibility for key-in-lever (Entrance, Night Latch, and Passage) trim is 1-3/4" (44 mm)
