HOSPITAL TRIM

Asylum Trim Series - "B" & "FM" Types

ABH Asylum Trim

Helps support a safer environment in hospitals and other institutions where safety is of the highest priority

• Cylindrical latch and Mortise Lock application
• 1-3/4" standard door thickness (specify if different)
• "SEC" Security fasteners provided standard
• Trim is mounted using thru-bolts for maximum stability
• Non-handed unit for installation and stocking ease
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• Patent# 6,196,599 & Additional Patent Pending

Horizontal Position Vertical Position

ABH manufactures multiple Asylum Trim types from which to choose - all operate in the same manner, by simply rotating the "knob" either clockwise or counterclockwise.

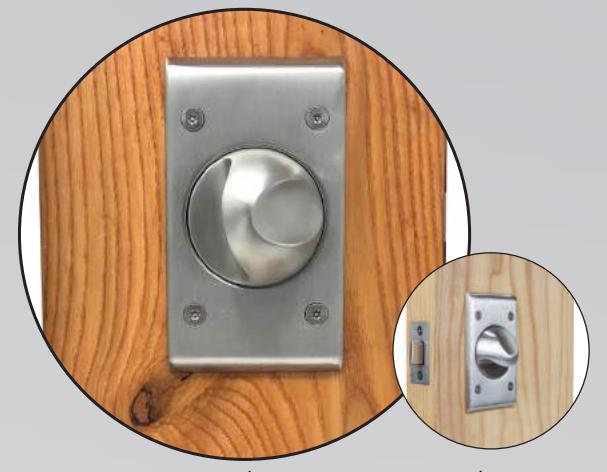

"B" Round Asylum Trim

• Operates by simply rotating the "knob" either clockwise or counterclockwise
• Place your thumb on top of the knob and your finger beneath to rotate the knob
• Knob can be mounted in either horizontal or vertical positions

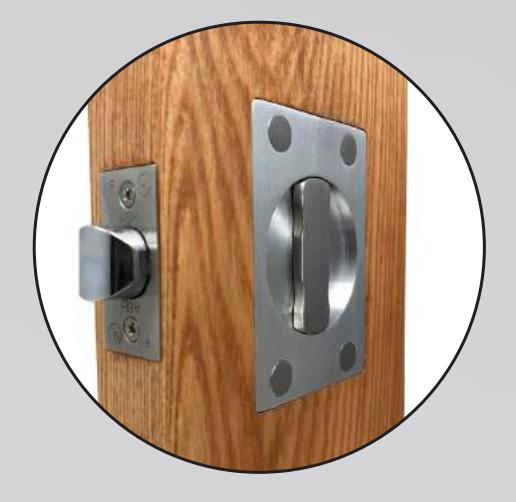

"FM" Flush Mount Asylum Trim

• Trim is flush to the door.
• Operates by simply rotating the Turn Bar either clockwise or counterclockwise
• Turn Bar is notched for ease of rotating to operate the Latch
