HITOWER Z, S, I, D, P, T, H & N 7500 SERIES TEMPLATE 1-1/4" - 1-3/4" FRAMES

IMPORTANT

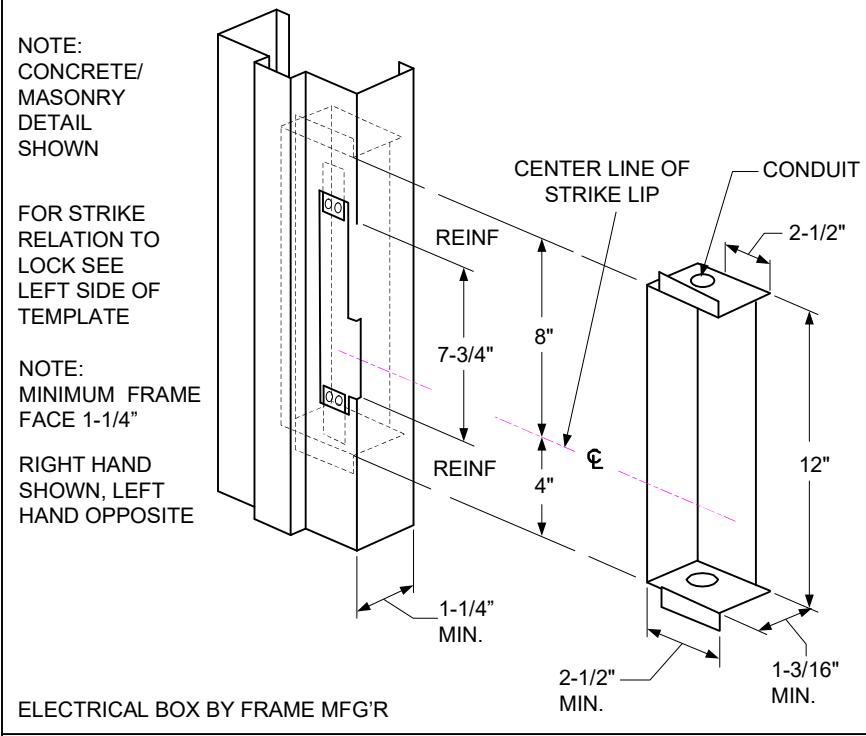

Details show space requirements for electric controller box. Allowances for different wall construction materials must be taken into consideration. Install conduit connectors in top of box before welding to frame.

NOTE:

THE 7-3/4" CLEARANCE BETWEEN THE STRIKE REINFORCEMENT TABS IS CRITICAL. *MAXIMUM THICKNESS OF TABS 125

UL LISTED BOX AS SHOWN AVAILABLE FROM SECURITY DOOR CONTROLS PART #7500EB-N

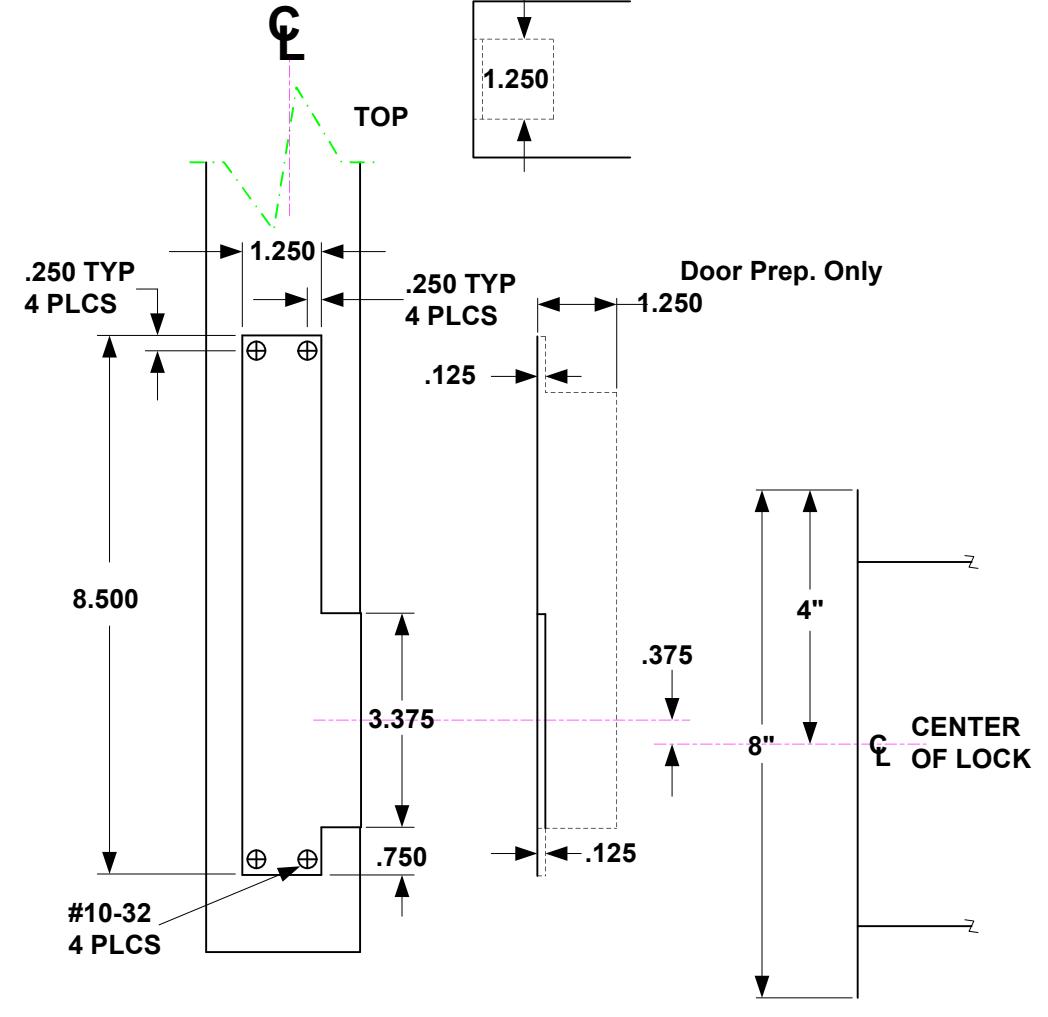

HOLES REQUIRED FUNCTIONS

Door Prep. Only

Identify the lock and manufacturer by letter prefix. Review proper manufactures template requirements for door prep only. See details far left and above for frame prep.

SOURCE #	MODEL#
Z SDC	7500
S Schlage	L9080
I Corbin/Russwin	ML2057
D Sargent	8200
P Yale	8805
T Best	45H
N Arrow	B12
H Hager	3880

NOT TO SCALE
