View PDFHINGE WITH 1840 AUTOMATIC DOOR BOTTOM

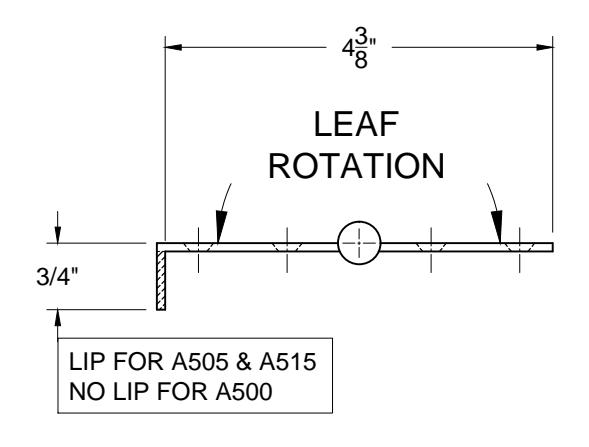

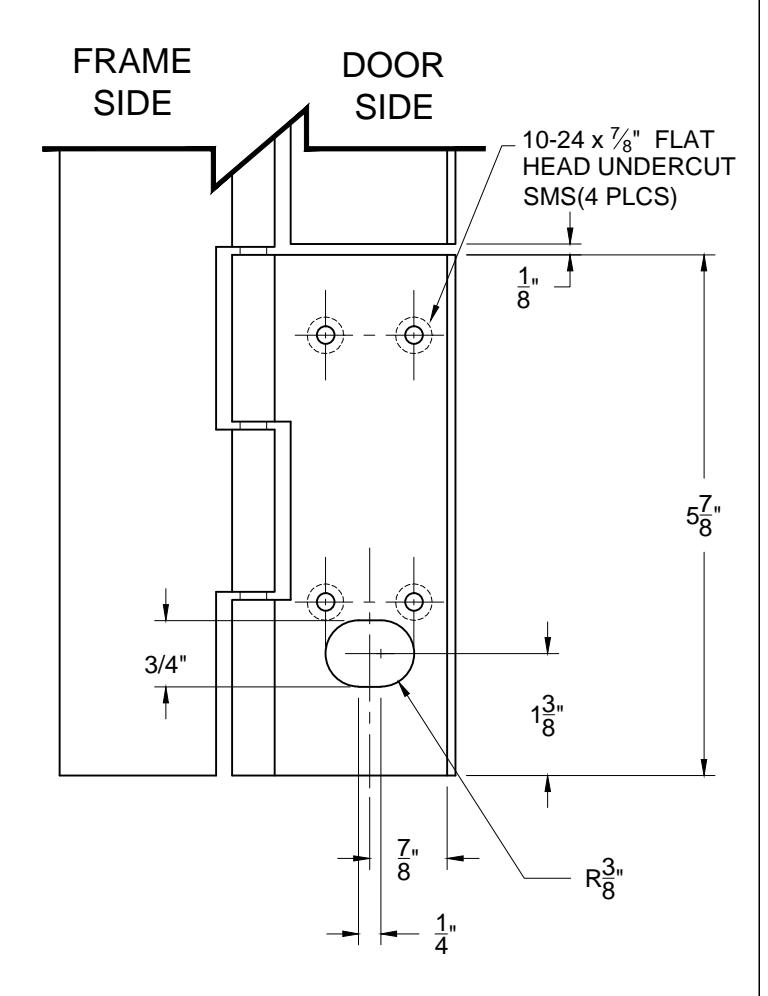

LEFT HANDED

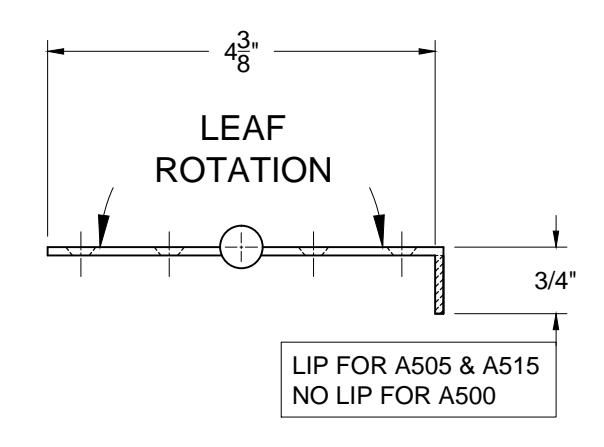

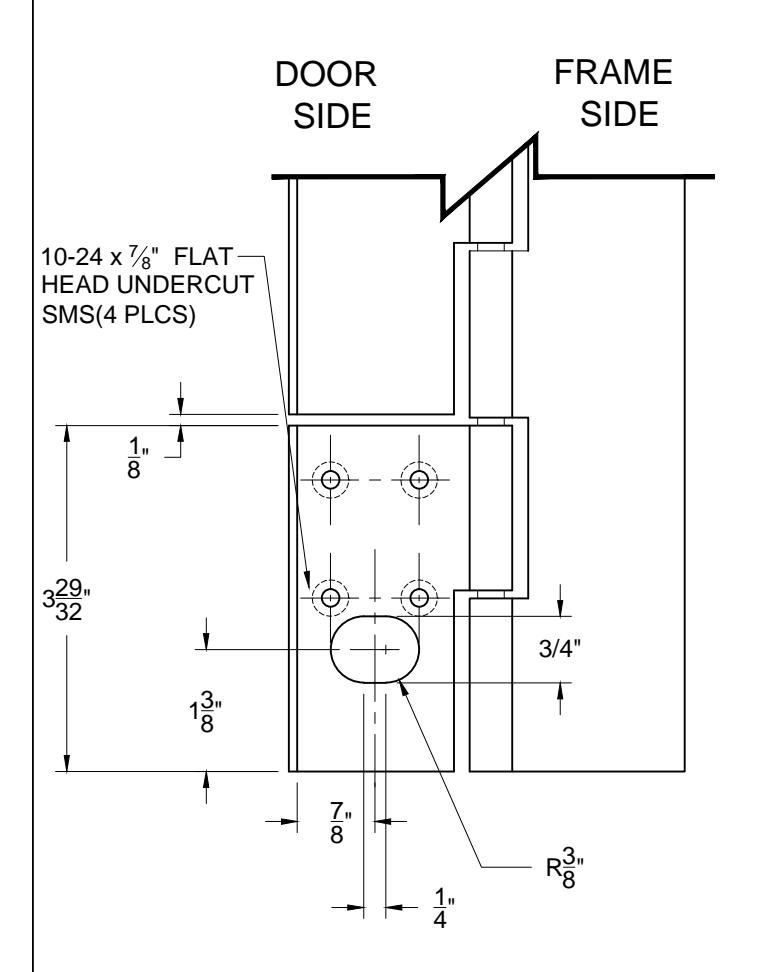

RIGHT HANDED
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
TM-HINGE W-1840 DR BOTTOM-04.DWG
HINGE W/ 1840 AUTOMATIC DOOR BOTTOM REVISED 06-19-18
© 2016 ABH Mfg., Inc. printed in USA
