SECURITY DOOR CONTROLS
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

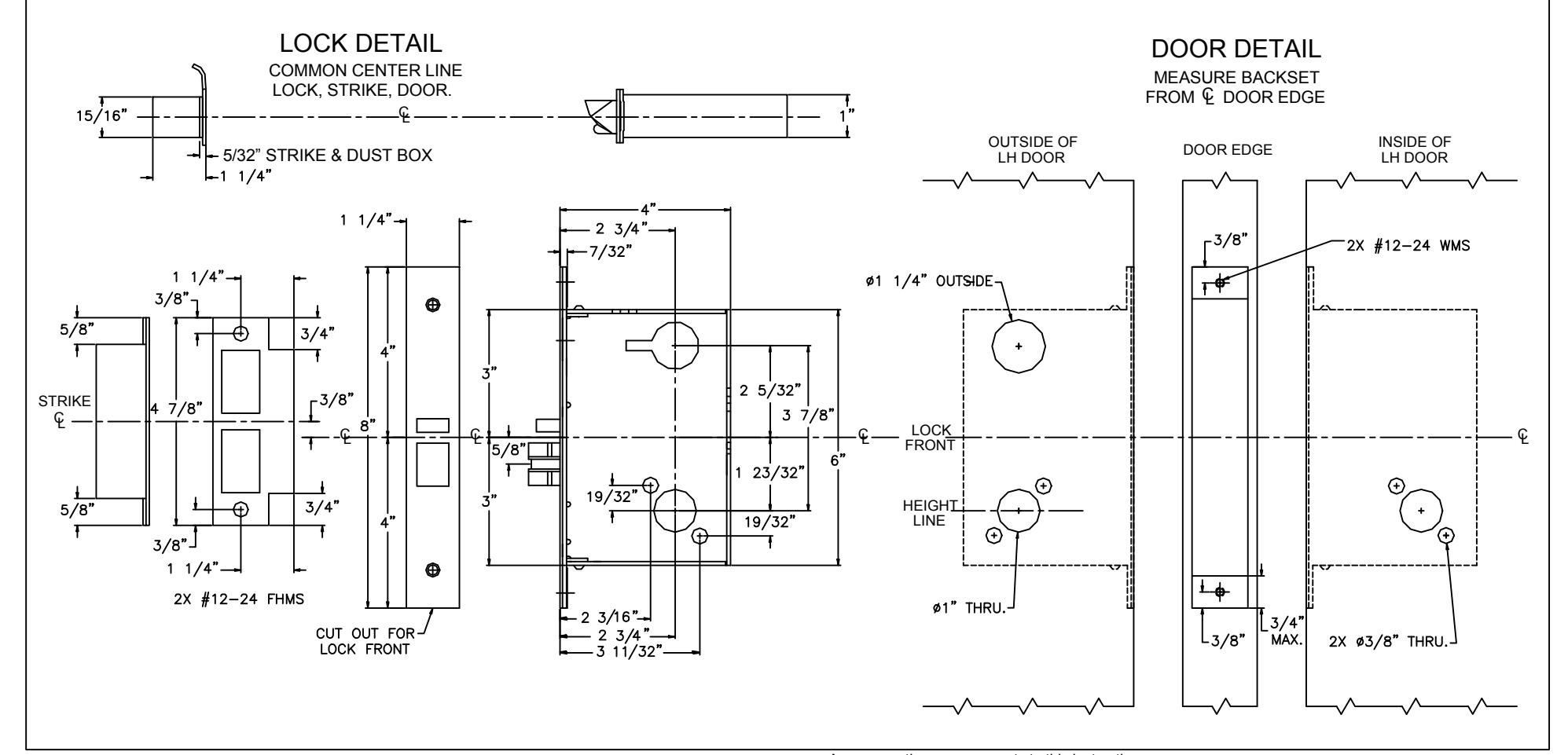

HITOWER Z7800 SERIES TEMPLATE ROSE TRIM, METAL DOOR, PREP.
FLAT OR BEVELED, HOLLOW METAL DOORS
| CHART FOR DRILLING TRIM HOLES | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| TSIDE | INSIDE | |||||||||
| FUNCTION |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
||||
| Z7850 | • | • | • | |||||||
| Z7852 | • | • | • | |||||||
| Z7830 | • | • | • | • | ||||||
| Z7832 | • | • | • | • | ||||||
| Z7835 | • | • | • | • | ||||||
SECURITY DOOR CONTROLS
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

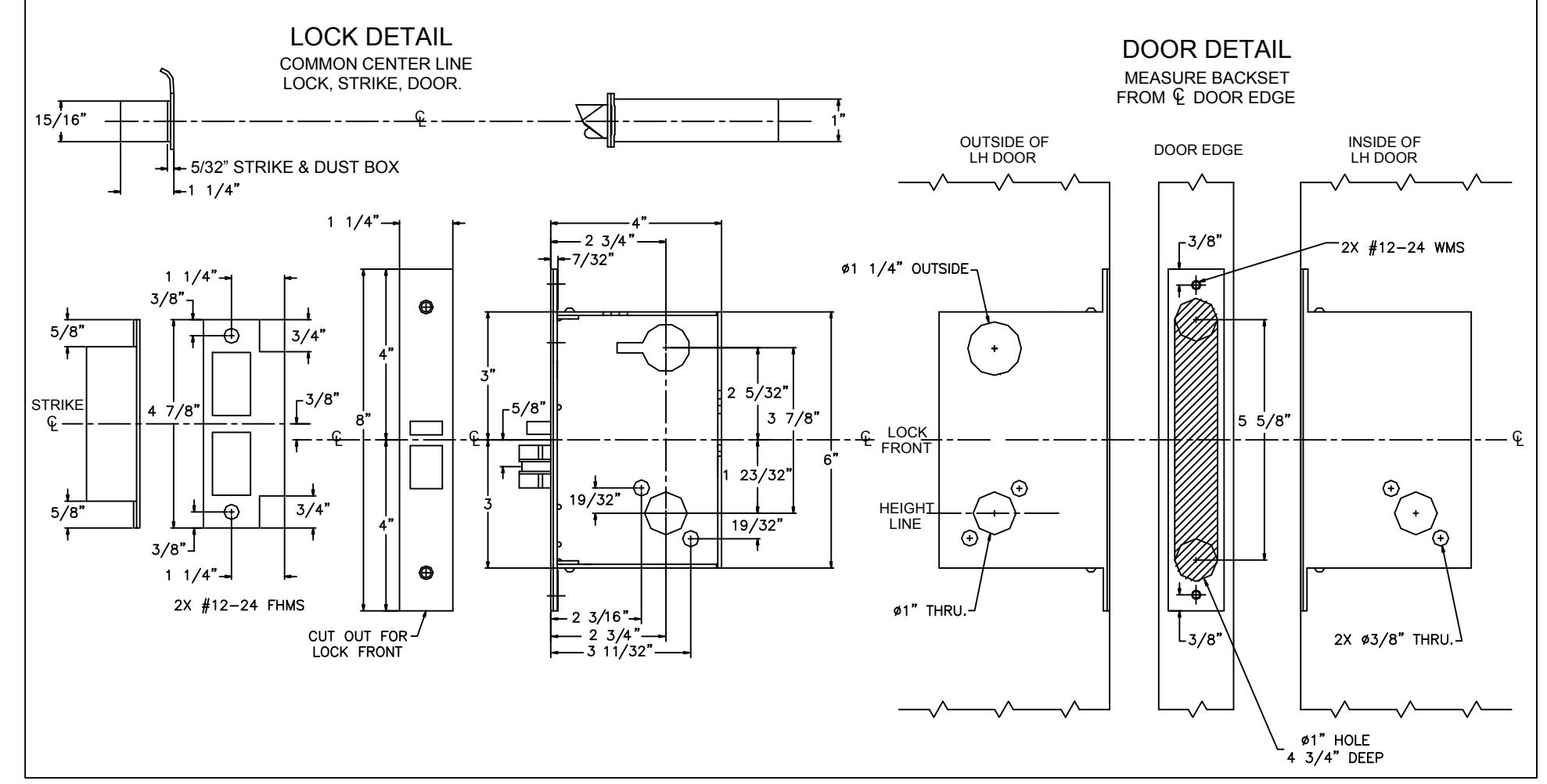

HITOWER Z7800 SERIES TEMPLATE ROSE TRIM, WOOD DOOR, PREP.
FLAT OR BEVELED, WOOD OR COMPOSITE DOORS
| CHART FOR DRILLING TRIM HOLES | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| TSIDE | INSIDE | |||||||||
| FUNCTION |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
||||
| Z7850 | • | • | • | |||||||
| Z7852 | • | • | • | |||||||
| Z7830 | • | • | • | • | ||||||
| Z7832 | • | • | • | • | ||||||
