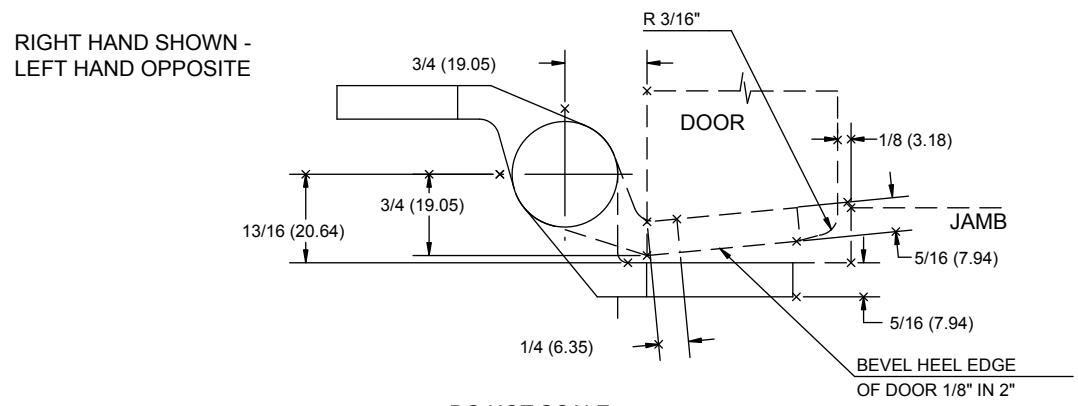

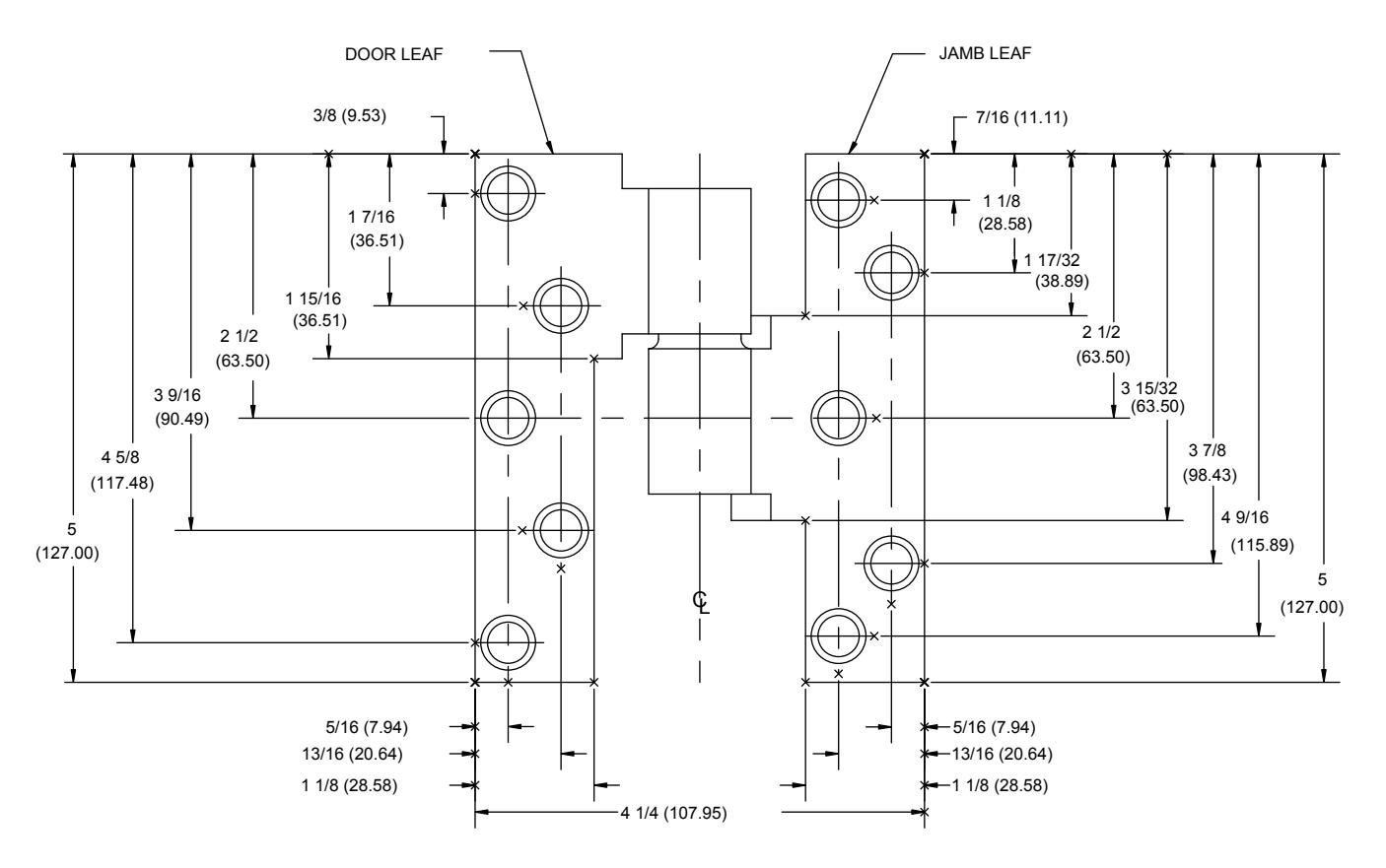

Heavy Weight Intermediate Pivot Hinge Template T354

354

Rev. '96

-DO NOT SCALE-

CATALOG NUMBER	MATERIAL
496	BRONZE

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 1/4-20 x 5/8" F.H. Wood Screw Size- No. 14 x 1 1/2" F.H.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
