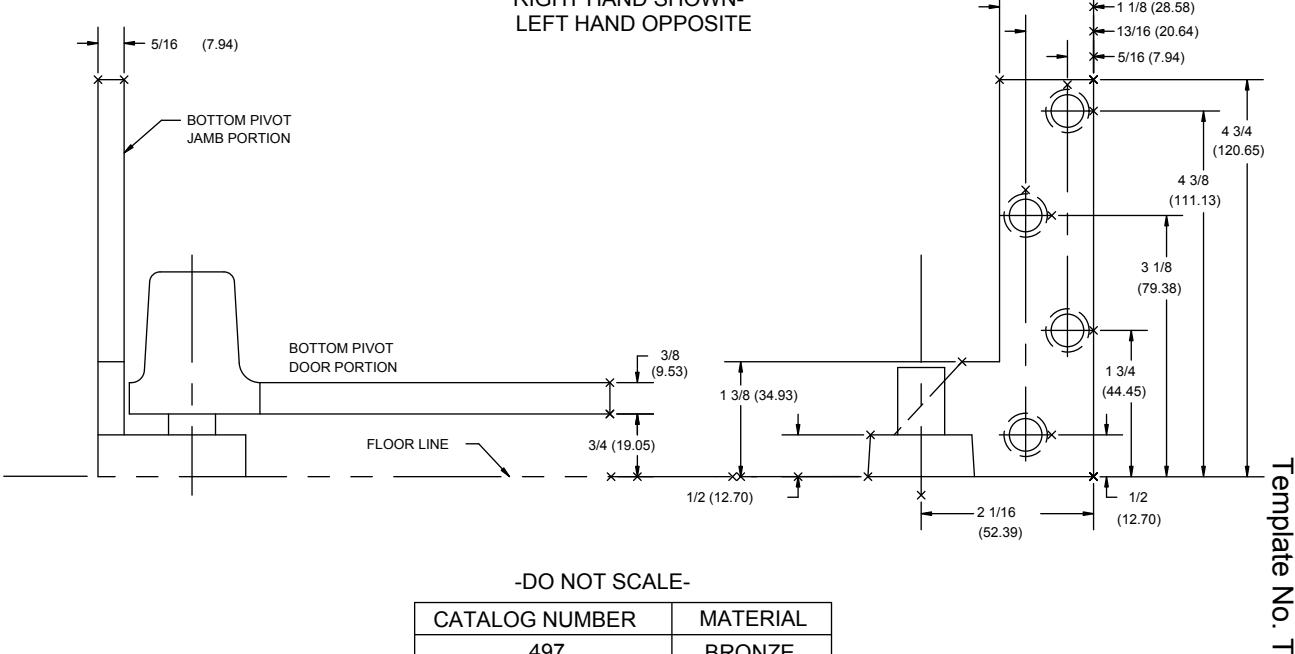

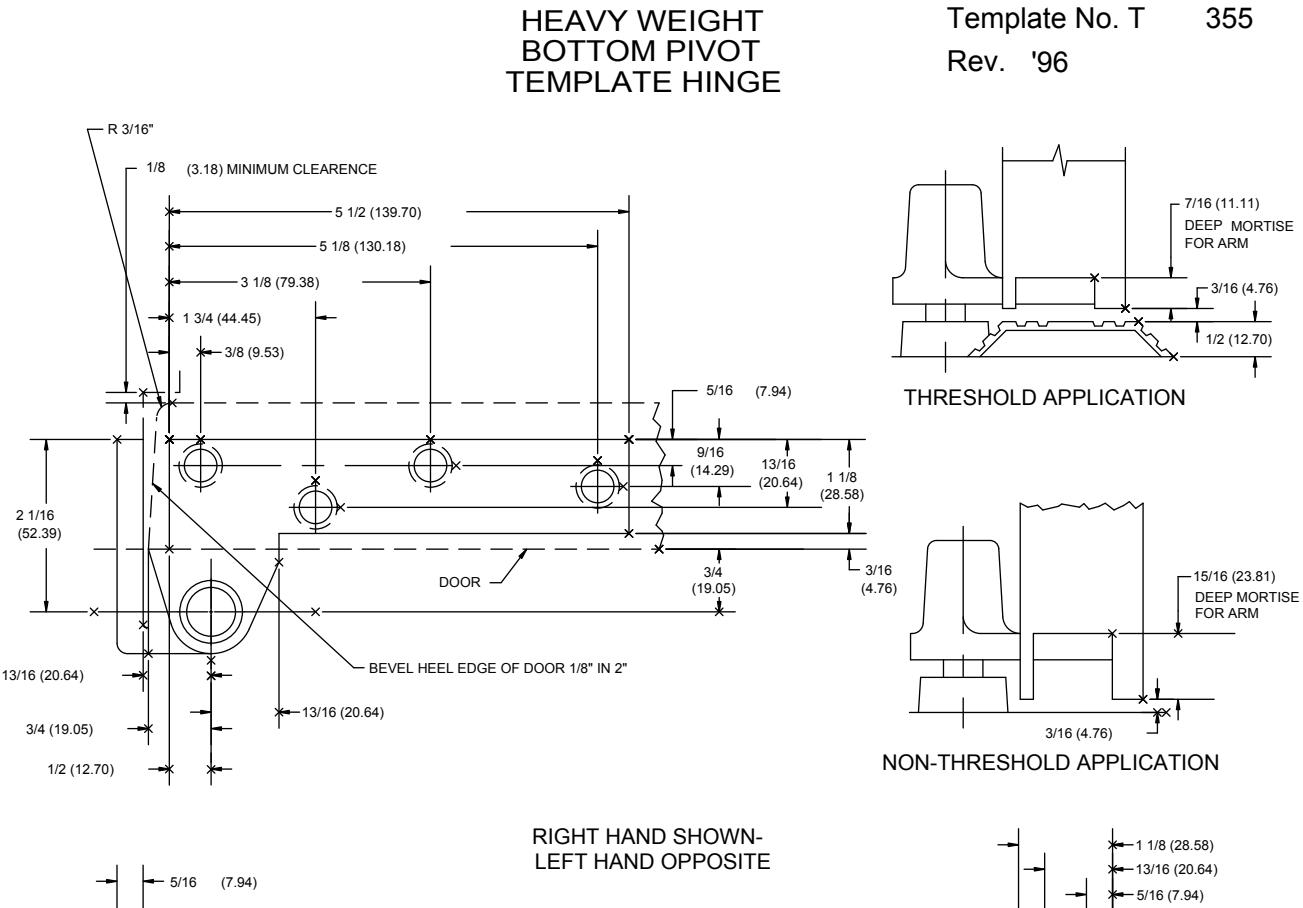

Heavy Weight Bottom Pivot Hinge Template T355

-DO NOT SCALE-

CATALOG NUMBER	MATERIAL
497	BRONZE

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 1/4-20 x 5/8" F.H. Wood Screw Size-No. 14 x 1 1/2" F.H.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET

P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
