DOOR SAFETY DECALS

DOOR SAFETY DECALS

Self-sticking, exterior grade decals meet the requirements of ANSI A156.10 & A156.19.

Two sided decals are depicted with opposite side partially shown.

MSS-5 White & Blue

MSS-6

MSS-13 Red & White

MSS-15 Yellow, Black & Blue

MSS-11 White & Blue

MSS-10

Red. Black & White

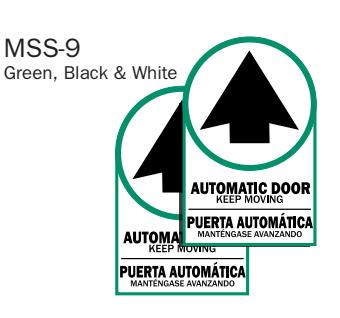

Green, Black & White

AUTOMA PUERTA AUTOMÁTICA

PUERȚA AUTOMÁTICA

DO NOT

AUTOMATIC DOOR

MSS-12

MSS-14 Red & White

MSS-16 Yellow, Black & Blue

MSS-1 Blue & White

MSS-7 Blue & White

ACTIVATE SWITCH TO OPERAT ACTIVE EL INTERRUPTOR PARA OPERA

MSS-8 Yellow & Black CAUTION CUIDADO PUERTA AUTOMÁTICA PUERTA AUTOMÁTICA PUERTA AUTOMÁTICA

HEAVY DUTY KEYPADS

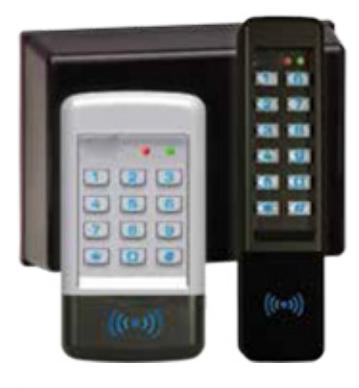

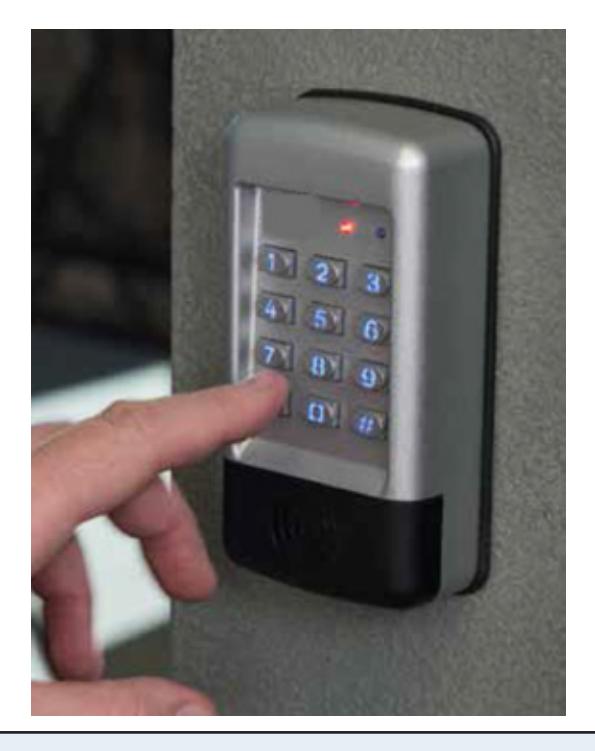

ENTRYCHECK™ SERIES DIGITAL KEYPADS

The IDC EntryCheckTM series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Optional Prox Readers are available for selective models

918 EntryCheck® Vandal Resistant, Thick S. S. Faceplate

920 EntryCheck® Vandal Resistant, Surface Mount

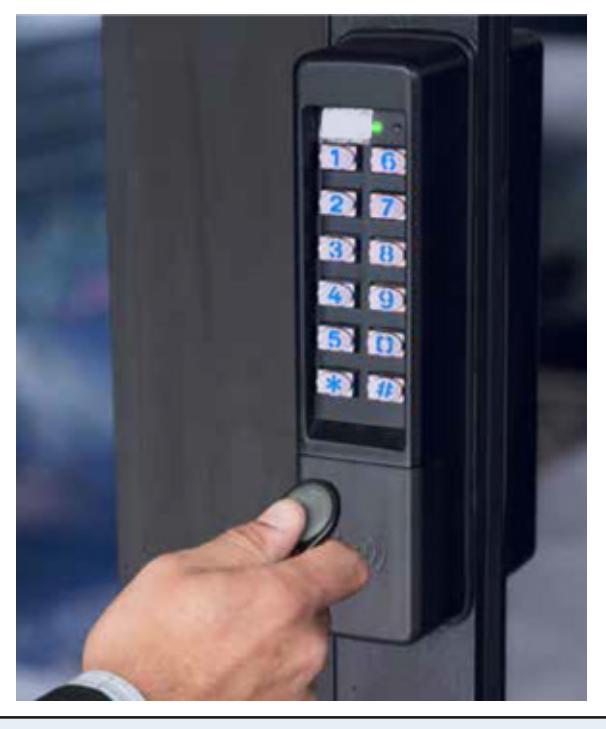

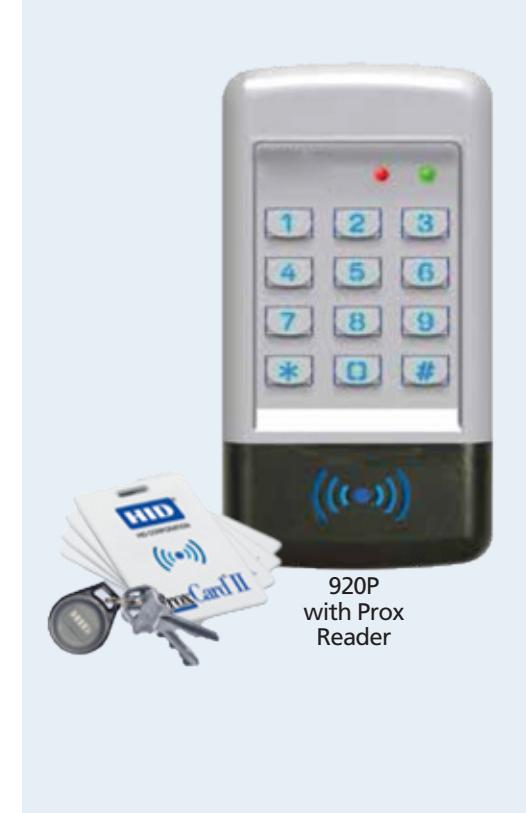

920P EntryCheck® Vandal Resistant, with Prox Reader

923 EntryCheck® VNarrow, Surface Mount

244

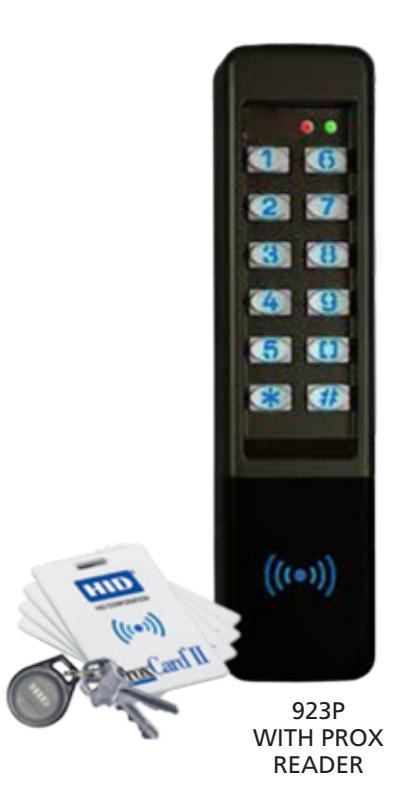

923P EntryCheck® VNarrow, Surface Mount

921P & 924P EntryCheck® Vandal Resistant, with Prox Reader, 2 piece Configuration

FEATURES

• Weather Resistant
• Heavy Cast Vandal Resistant Housing
• Heavy Cast Metal Blue Backlit Keys
• Keypad programmable
• 500 Users, 4-6 digit PIN codes
• 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
• Assign entry PIN's to relays 1 and/or 2
• LED Status: Access, lockout
• Tactile keys with loudness selectable audible volume for key depression or output activation
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-Exit/Enter input
• Choice of door sense/relay inhibit input functions

Forced entry Door ajar

Inhibit relay 1 or 2

Auto relock when door closes

• Choice of 2 solid states outputs functions:

Alarm shunt Forced entry Door ajar Tamper lockout Keypad active

PROX Only:

3 User Modes:

• PIN or Card
• Card Only
• Card and PIN

ENTRYCHECK® SPECIFICATIONS

Voltage 12/24 VAC/DC

Current Outputs 30mA typical, 150mA maximum Relay 1 - SPDT 5 Amps @ 30VDC

Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4

– 100mA @ 30VDC

Temperature Humidity Finish -22°F to + 149°F (-30°C to + 65°C) 5% to 95% non-condensing 920/920P Powder Coat Painted

ACCESSORIES - ACCESS CREDENTIALS

HID1326-25 HID ProxCard® II, 25 cards HID1326-100 HID ProxCard® II, 100 cards HID1346-10 HID ProxKey® II, 10 key fobs HID1346-100 HID ProxKey® II, 100 key fobs

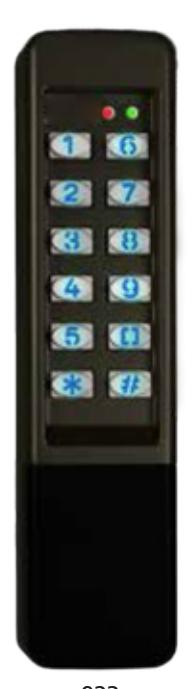

923

Indoor/Outdoor Stand-Alone Narrow Keypad, Surface Mount Dimensions:

1.75"W x 7-5/16"H x 1-3/8"D (1.5" wall projection)

923

West: 800-544-4422 • East: 800-225-6737

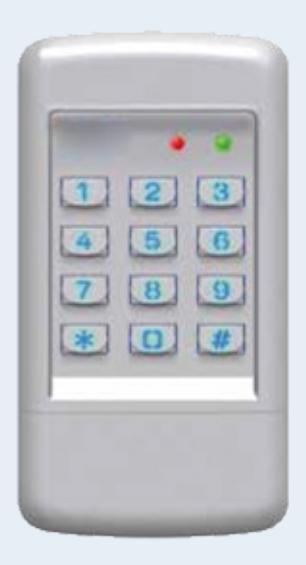

920

Indoor/Outdoor Stand-Alone Keypad, Surface Mount Dimensions:

3"W x 5-3/4"H x 1-7/16"D

(1.5" wall projection)

920

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

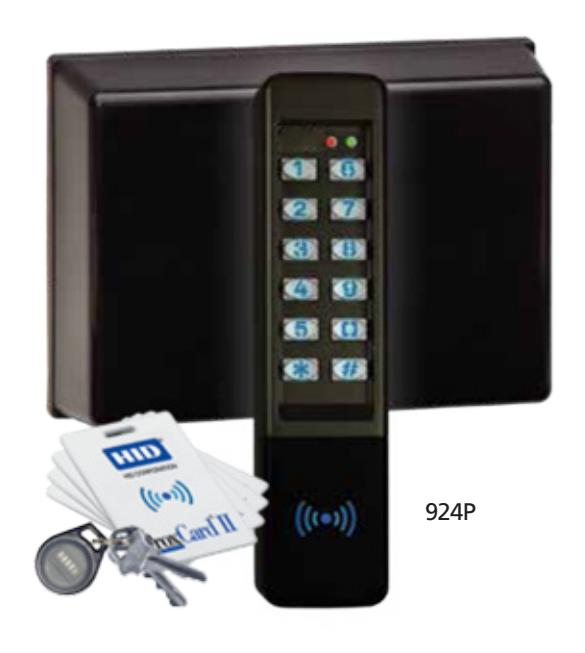

924P

Indoor/Outdoor Keypad, 2 piece Configuration: Keypad and Controller, Surface Mount

Keypad Dimensions :

1.75"W x 7-5/16"H x 1-3/8"D (1.5" wall projection)

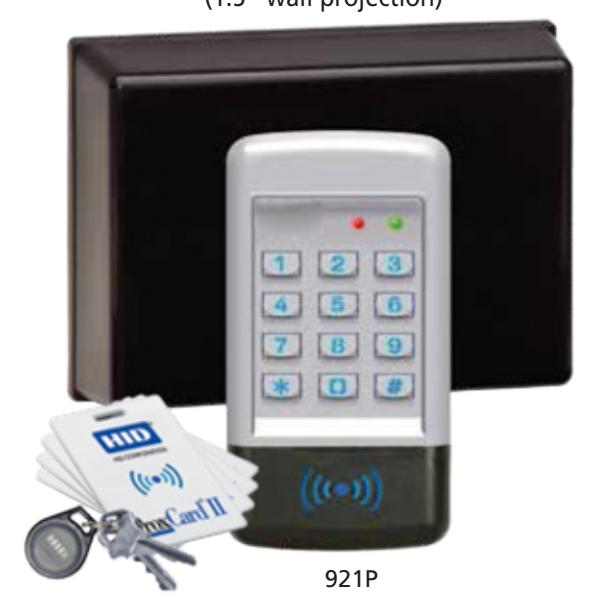

921P

Indoor/Outdoor Keypad, 2 piece Configuration: Keypad and Controller, Surface Mount

Keypad Dimensions:

3"W x 5-3/4"H x 1-7/16"D (1.5" wall projection)

West: 800-544-4422 • East: 800-225-6737

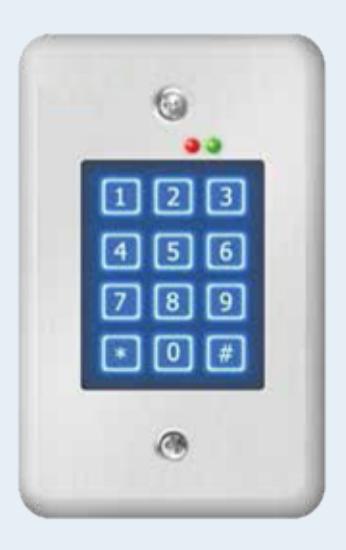

918

Indoor Stand-Alone Keypad,

Single Gang

Indoor blue backlit, moisture

resistant keypad

Thick S.S.

faceplate 3/32" (2mm)

Dimensions:

3"W x 4-3/4"H x 1-1/2"D (1/4" wall projection)

SPECIFICATIONS

Voltage 12/24 VAC/DC

Current Outputs 30mA typical, 150mA maximum Relay 1 - SPDT 5 Amps @ 30VDC

Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4

– 100mA @ 30VDC

Temperature -20°F to + 130°F (-30°C to + 54°C)

Humidity Finish 5% to 95% non-condensing 918 Brushed Stainless Steel

PROGRAMMING OPTIONS

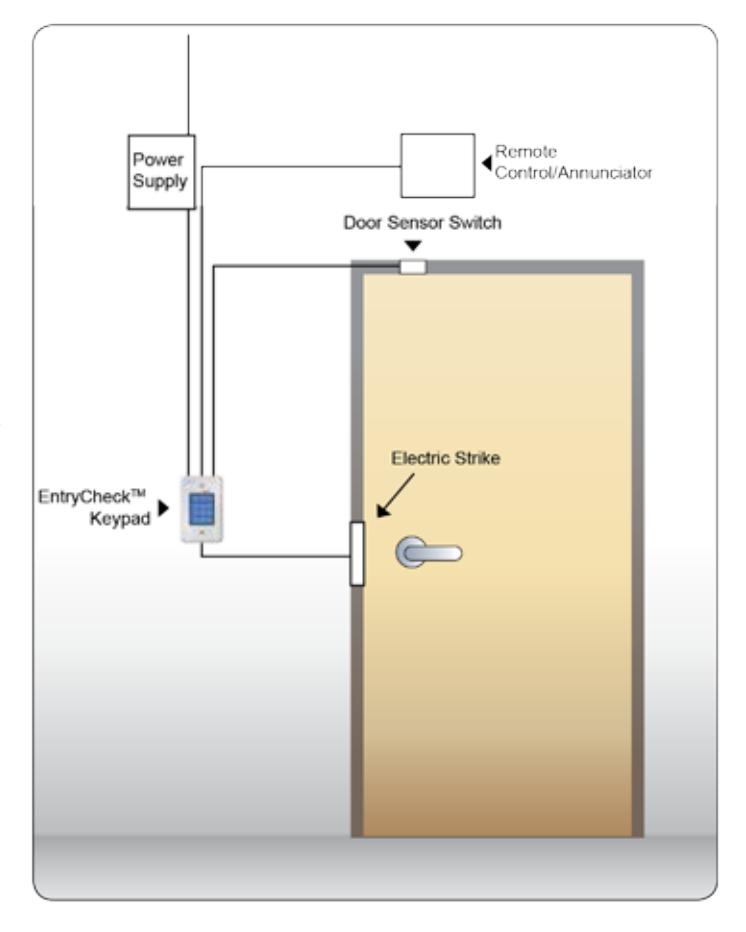

The EntryCheckTM series includes a Door Sense/ Inhibit Input feature. When programmed for "Door Sense", a door position switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "Inhibit Input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay.

The EntryCheckTM also has a request-to-exit input for connection to an exit switch and/or fire access key switch for fire/emergency access.

When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.
