Half Surface Geared Continuous Hinges Template
Open the original PDF document
View PDF

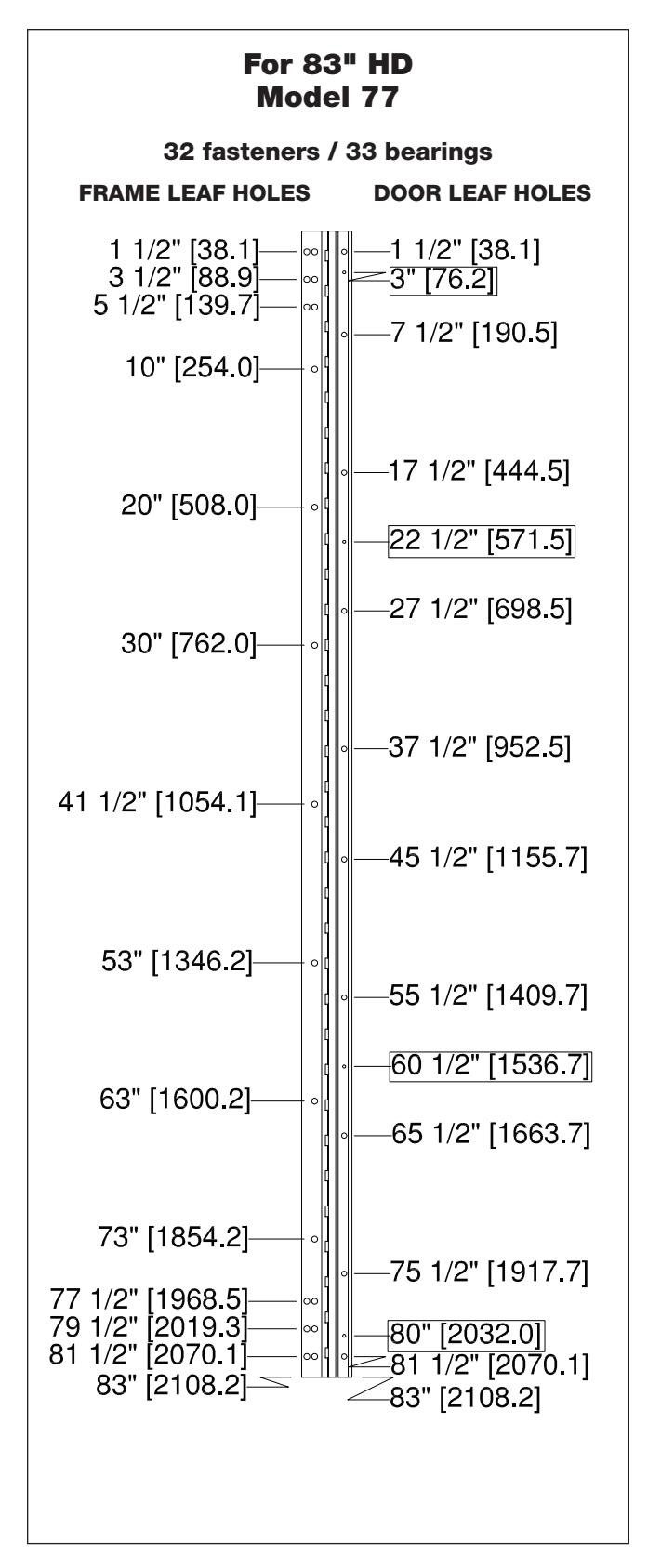

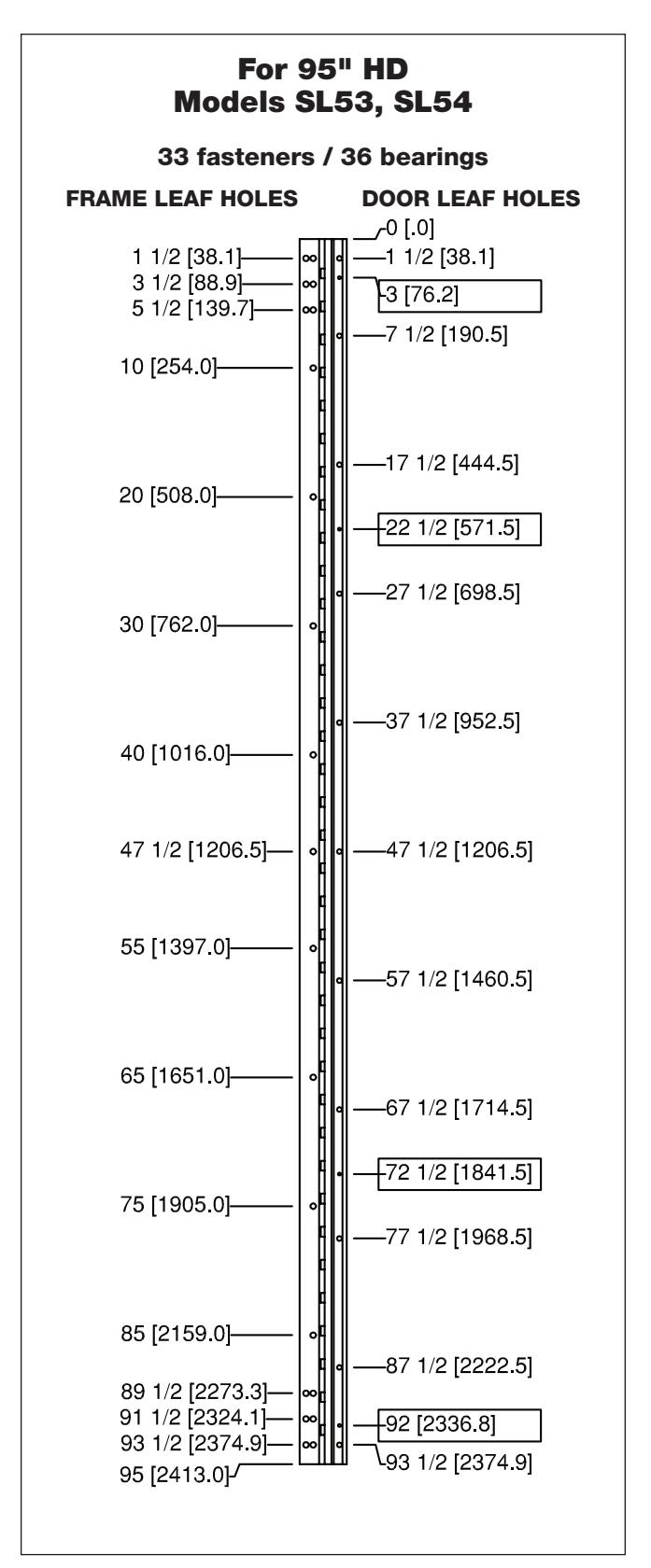

Half Surface Geared Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Dimensions shown inside boxes are locator screw mounting holes.

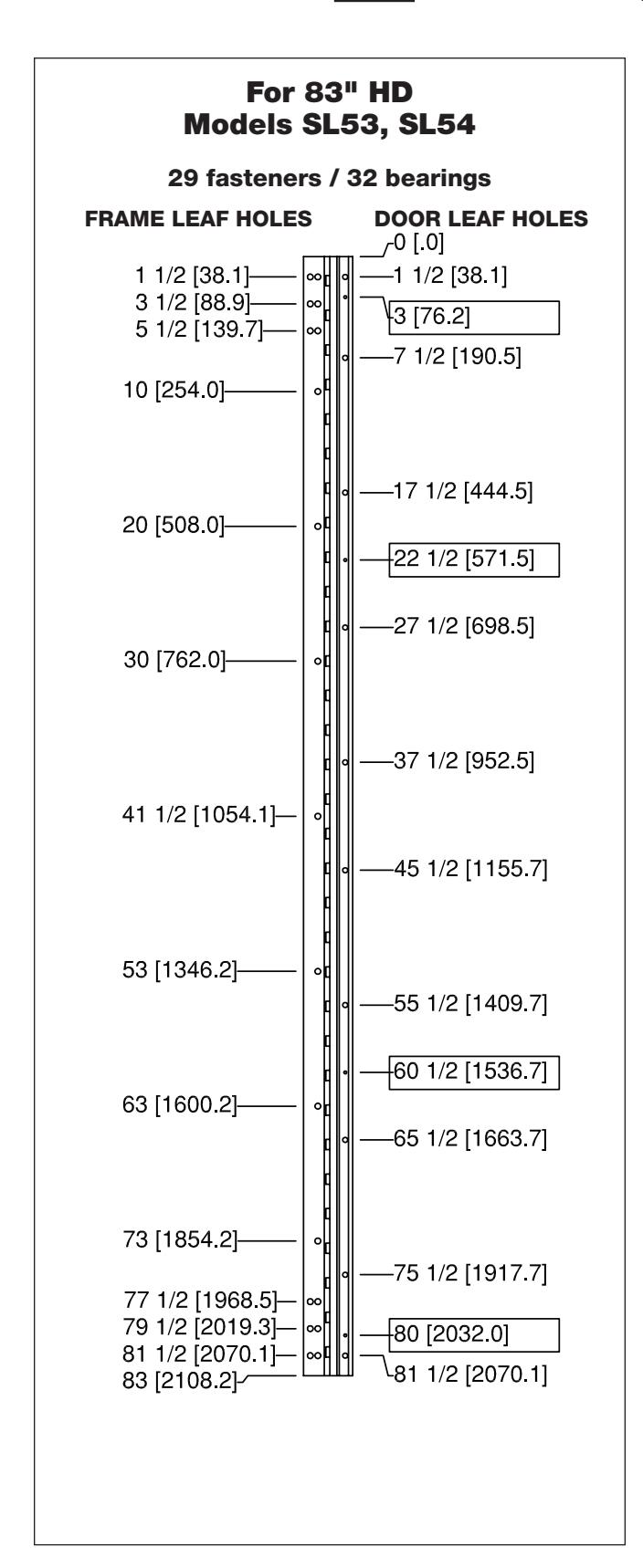

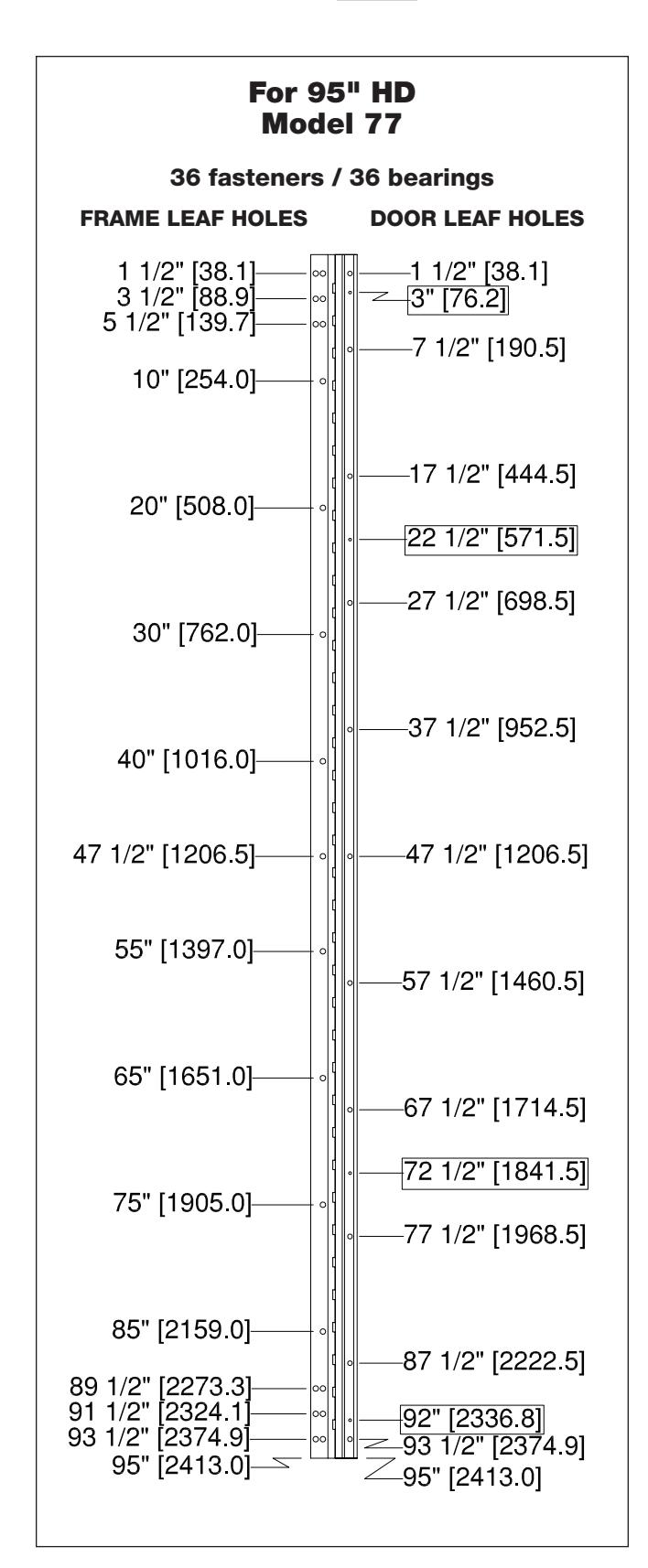

Half Surface Geared Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Dimensions shown inside boxes are locator screw mounting holes.

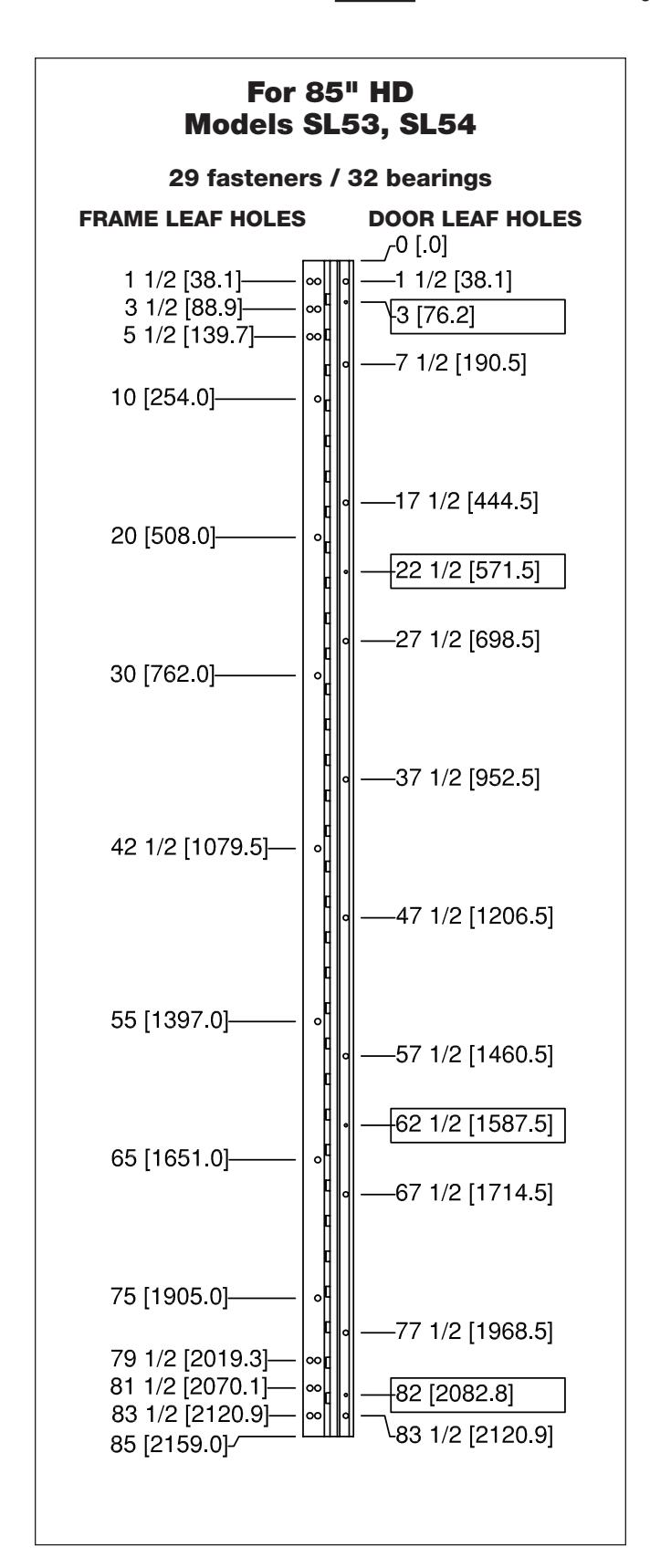

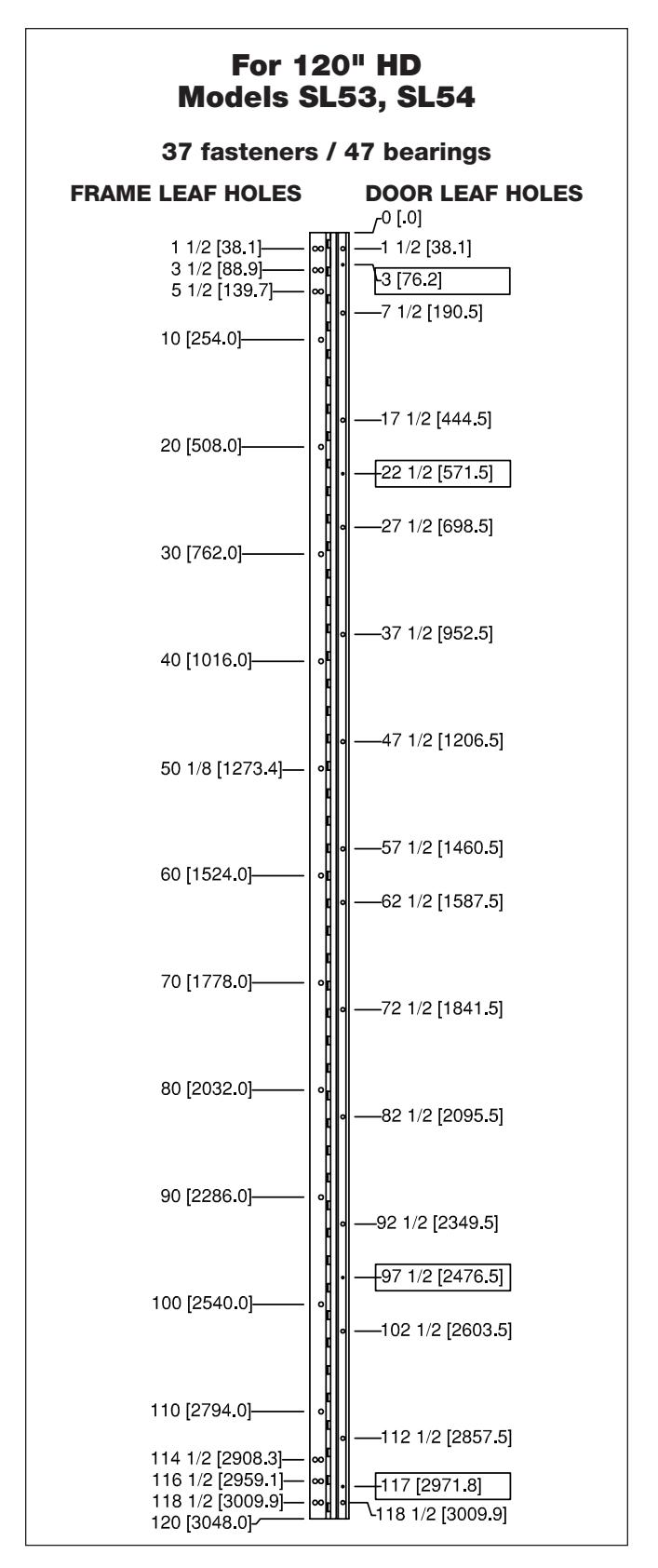

Half Surface Geared Hinges
- All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
- Dimensions shown inside boxes are locator screw mounting holes.
