Half Slip Template 4in – T309

T e m plate N o.

T

Template No. T Rev.

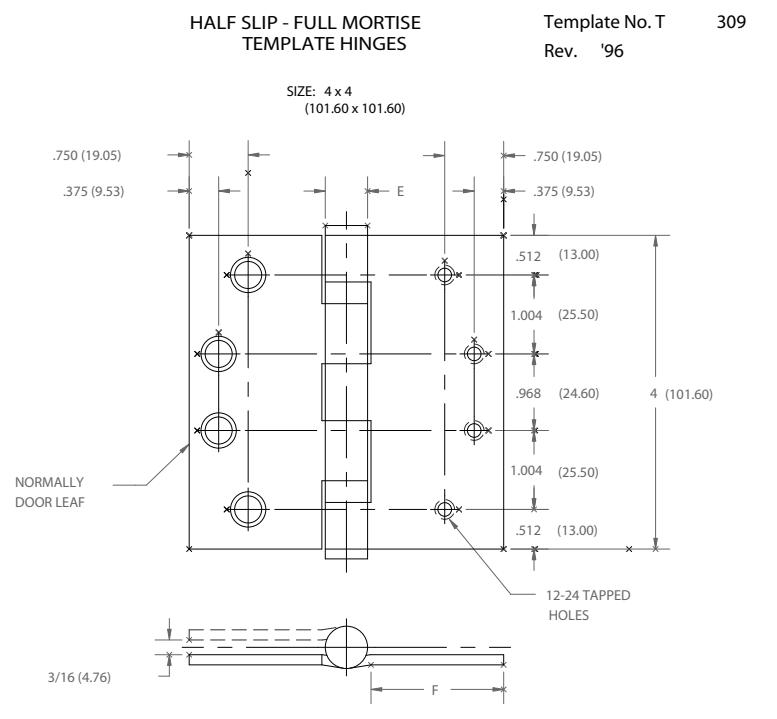

RIGHT HAND SHOWN - LEFT HAND OPPOSITE

-DO NOT SCALE-

CATALOG NUMBER				(F) DISTANCE FROM EDGE OF LEAF TO SWAGE LINE
	NON		(E)
STEEL	FERROUS	METAL	KNUCKLE	4 x 4
HINGES	HINGES	GAUGE	DIAMETER	(101.60 x 101.60)
1278	1579	.129 (3.28)	35/64 (13.89)	1 5/8 (41.28)
BB1278	BB1578	.129 (3.28)	35/64 (13.89)	1 5/8 (41.28)
AB7011	AB8011	.129 (3.28)	19/32 (15.08)	1 9/16 (39.69)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Hager template hinges are made in size, gauge, and with screw holes located

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
