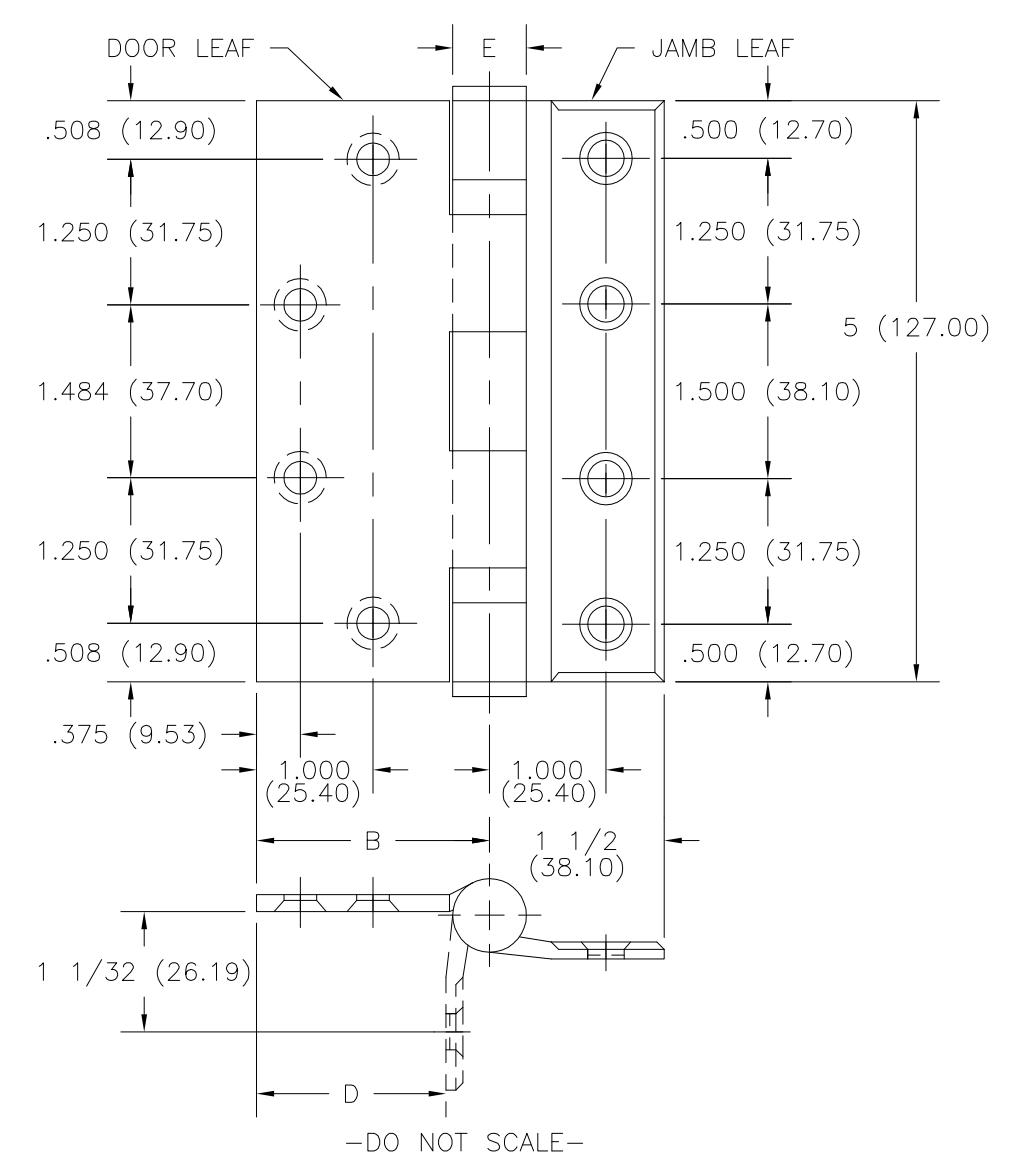

View PDFHALF MORTISE TEMPLATE HINGES
SIZE: 5 (127.00)
| ' | ||||
|---|---|---|---|---|
| No. | REVISION | BY | DATE | |
| 1 | ECO | CT03119 | RM | 12-16-03 |
Template No. T338
| CATALOG | NUMBER | ||||
|---|---|---|---|---|---|
| NON- | (B) | (D) | (E) | ||
| STEEL | FERROUS | METAL | DOOR LEAF | MAXIMUM | KNÚĆKLE |
| HINGES | HINGES | GAUGE | WIDTH | MORTISE | DIAMETER |
| AB701 | AB801 | .145 (3.68) | 2 (50.80) | 1 5/8 (41.28) | 5/8 (15.88) |
| BB1129 | BB1109 | .145 (3.68) | 2 (50.80) | 1 5/8 (41.28) | 41/64 (16.27) |
| AB751 | AB851 | .190 (4.83) | 2 1/16 (52.39) | 1 5/8 (41.28) | 47/64 (18.65) |
| BB1138 | BB2098 | .190 (4.83) | 2 1/16 (52.39) | 1 5/8 (41.28) | 47/64 (18.65) |
ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size: Door Leaf- " F.H. Jamb Leaf- " O.H.
Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.
Hager template (steel and brass) hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7 for doors 1 3/4" in thickness.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
