Half Mortise Template 4.5in – T337-Rev01

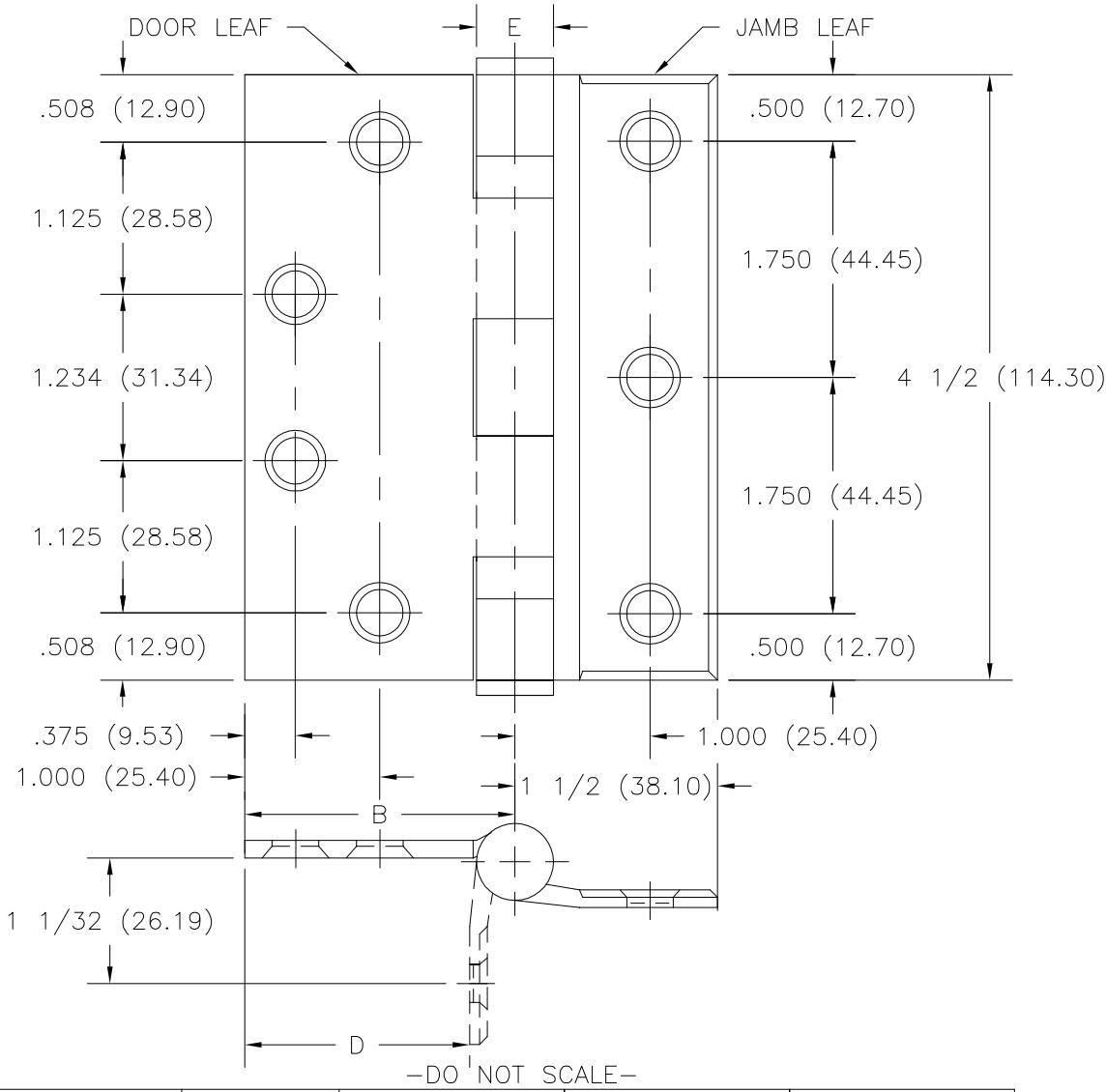

HALF MORTISE TEMPLATE HINGES

SIZE: 4 1/2 (114.30)

BO 1101 COXCE
CATALOG	NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE	(B) DOOR LEAF WIDTH	(D) MAXIMUM MORTISE	(E) KNUCKLE DIAMETER
1129		.134 (3.40)	2 (50.80)	1 5/8 (41.28)	39/64 (15.48)
AB701	AB801	.134 (3.40)	2 (50.80)	1 5/8 (41.28)	39/64 (15.48)
BB1129	BB1109	.134 (3.40)	2 (50.80)	1 5/8 (41.28)	39/64 (15.48)
AB751	AB851	.180 (4.57)	2 1/16 (52.39)	1 5/8 (41.28)	45/64 (17.86)
BB1138	BB2098	.180 (4.57)	2 1/16 (52.39)	1 5/8 (41.28)	45/64 (17.86)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size: Door Leaf- 12-24 x 1/2" F.H. Jamb Leaf- 12-24 x 1/2" O.H.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template (steel and brass) hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7 for doors 1 3/4" in thickness.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
