Half Mortise Geared Continuous Hinge Template

Open the original PDF document

Half Mortise Geared Hinges

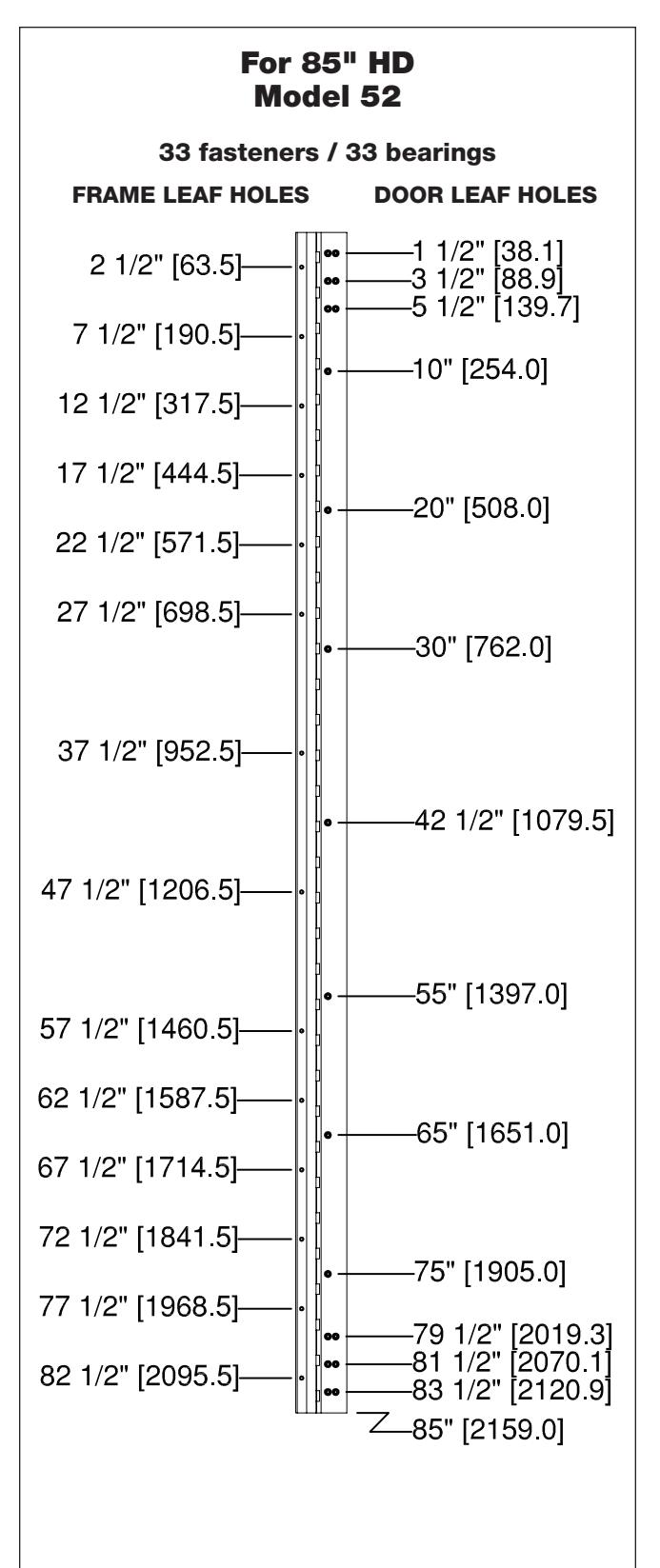

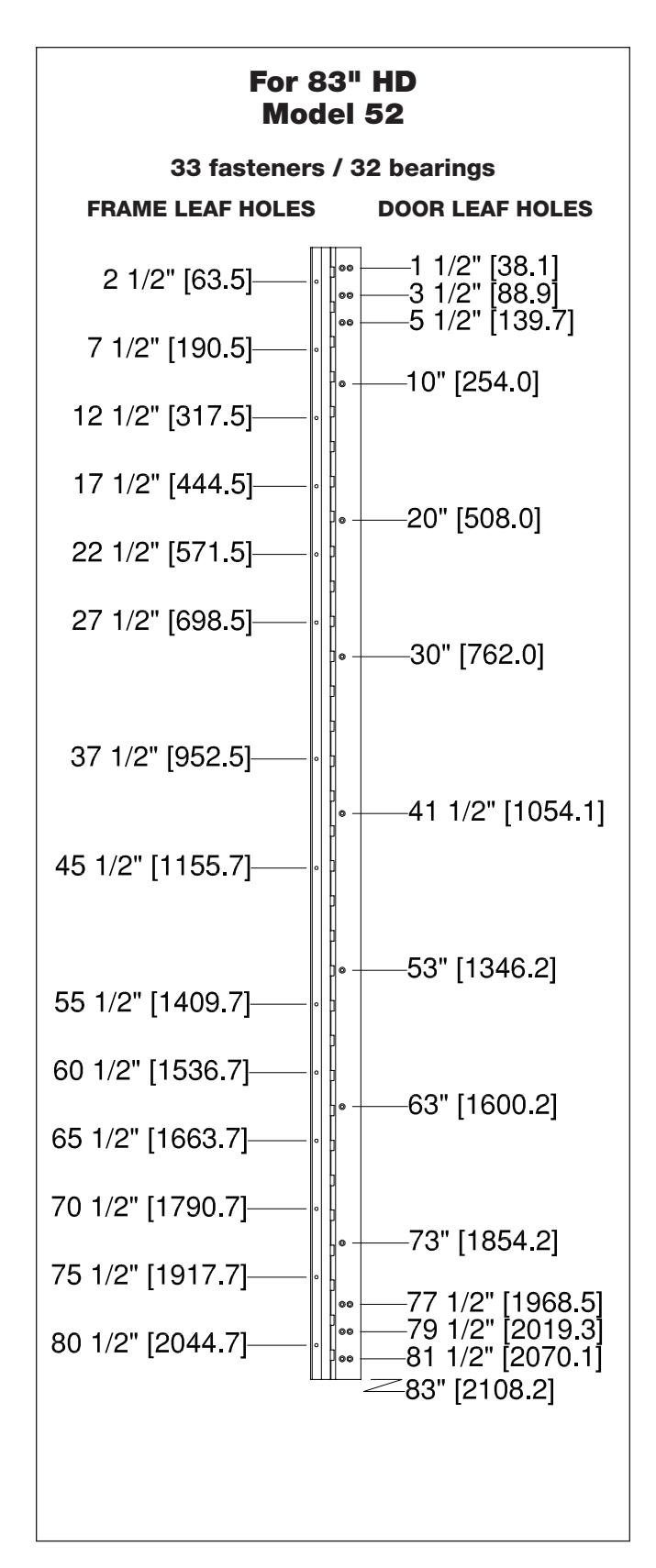

■ All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.

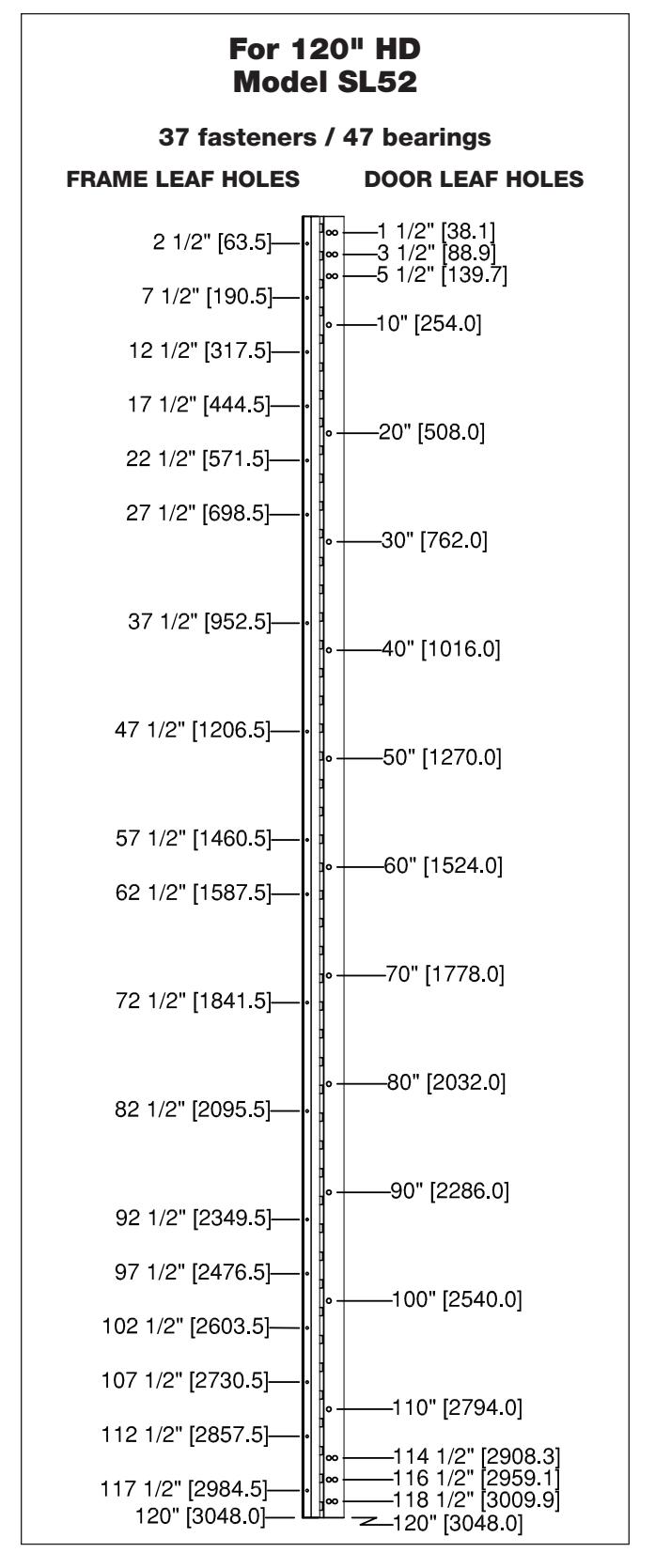

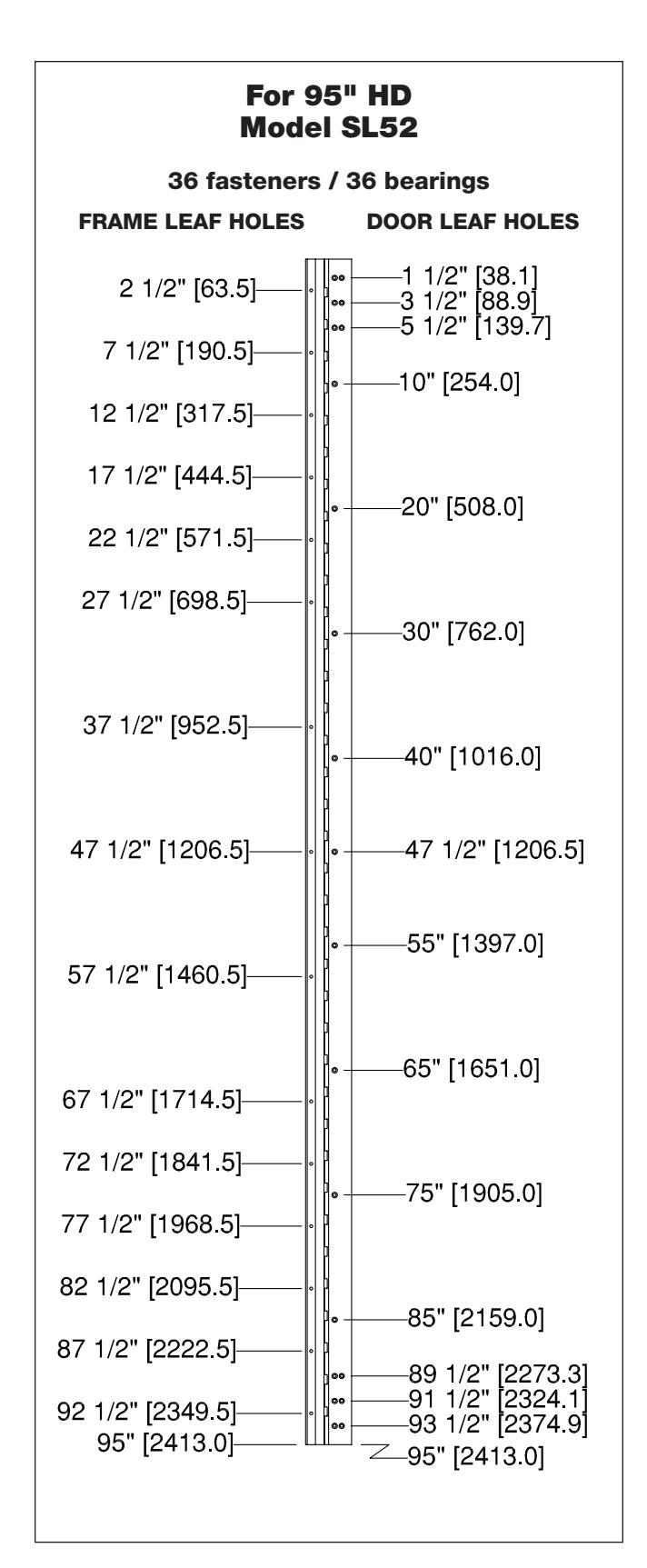

■ All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
