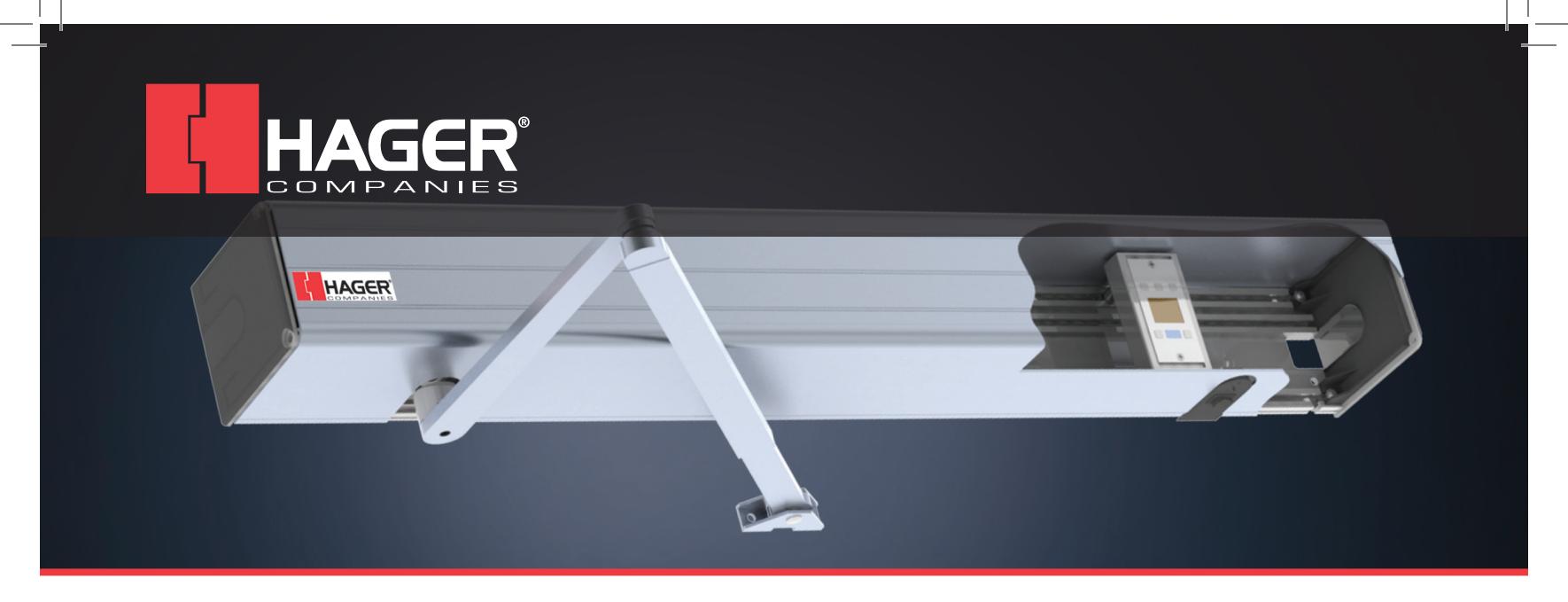

Low Energy Power Operator Conversion Chart
| DORMA | LCN | NORTON | SARGENT | BESAM | HORTON | HAGER | |
|---|---|---|---|---|---|---|---|
|
POWER
OPERATOR |
ED900 | 4640 Series | 6000 Series | 4000 Series | SW200i | 4100 Series | 8400 Series |
| 0 | ED100/250 | 9130/40 | 5600 |
M Power
3000 |
SW100 | 7100 Series | 8200 Series |
| DESCRIPTION | MS SEDCO | LCN | NORTON | SARGENT | HAGER | 1 | |
| 4.5" Square Actuator | 59 Series |
8310-853,
8310-853T |
502 |
2-659-0172,
2-659-0173 |
|||
| 6" Square Actuator | 505 | 4396HP |
2-659-0169,
2-659-0170 |
||||
| ORS | 4.5" Round Actuator | 59R45 Series |
8310-856,
8310-856T |
2-659-0165,
2-659-0166 |
|||
| ACTUATORS | 6" Round Actuator | 59R6 Series |
8310-852,
8310-852T |
506 | 4395HP |
2-659-0161,
2-659-0162 |
|
| ₹ | | Jamb Mount Actuator | 59J Series |
8310-818,
8310-818T |
503 | 4397HP |
2-659-0175,
2-659-0176 |
|
| Vestibule Mount Actuator | 59V Series | 8310-855 | 504 | 2-659-0242 | |||
| 36" Low Profile Actuator |
8310-836,
8310-836TW |
2-659-0178,
2-659-0179 |
|||||
| 4.5" Round Surface Mount Box | 1025 | 8310-868S | 2-659-0167 | ||||
| IES | 4.5" Round Weather Ring | 8310-800 | 2-659-0168 | ||||
| ACTUATOR ACCESSORIES | 6" Round Surface Mount Box | 1030 | 8310-869S | 2-659-0163 | |||
| 6" Round Weather Ring | 8310-802 | 2-659-0164 | |||||
| § | 4.5" Square Surface Mount Box | 1015 | 8310-867S | 2-659-0174 | |||
| 5 | 6" Square Surface Mount Box | 2-659-0171 | |||||
| { | Jamb Actuator Surface Mount Box | 1010 | 8310-819S | 2-659-0177 | |||
| Vestibule Actuator Surface Mount Box | 1015 | 8310-867S | 2-659-0243 | ||||
| _ | 1 | ||||||
| Wireless Transmitter | ClearPath CP/TX | 8310-861 | 536 | FOB1 | 2-659-0186 | ||
| RIES | Receiver | ClearPath CP/RX | 8310-865 | 539 | RFR2 | 2-659-0183 | |
| ACCESSORIES | Bollard Post | 608 | 8310-866 | 500 |
2-659-0180,
2-659-0181, 2-659-0182 |
||
| Relay and Door Sequencer | TDM | 8310-845 | 2-659-0240 |
Note: Please consult each manufacturer's catalog for specific options.
