Electrified Products Conversion Chart
Magnetic shear lock - 2700 lb
holding force
| DESCRIPTION | SDC | SECURITRON | RCI | DYNALOCK | HES | FOLGER ADAM | VON DUPRIN | HAGER | |
|---|---|---|---|---|---|---|---|---|---|

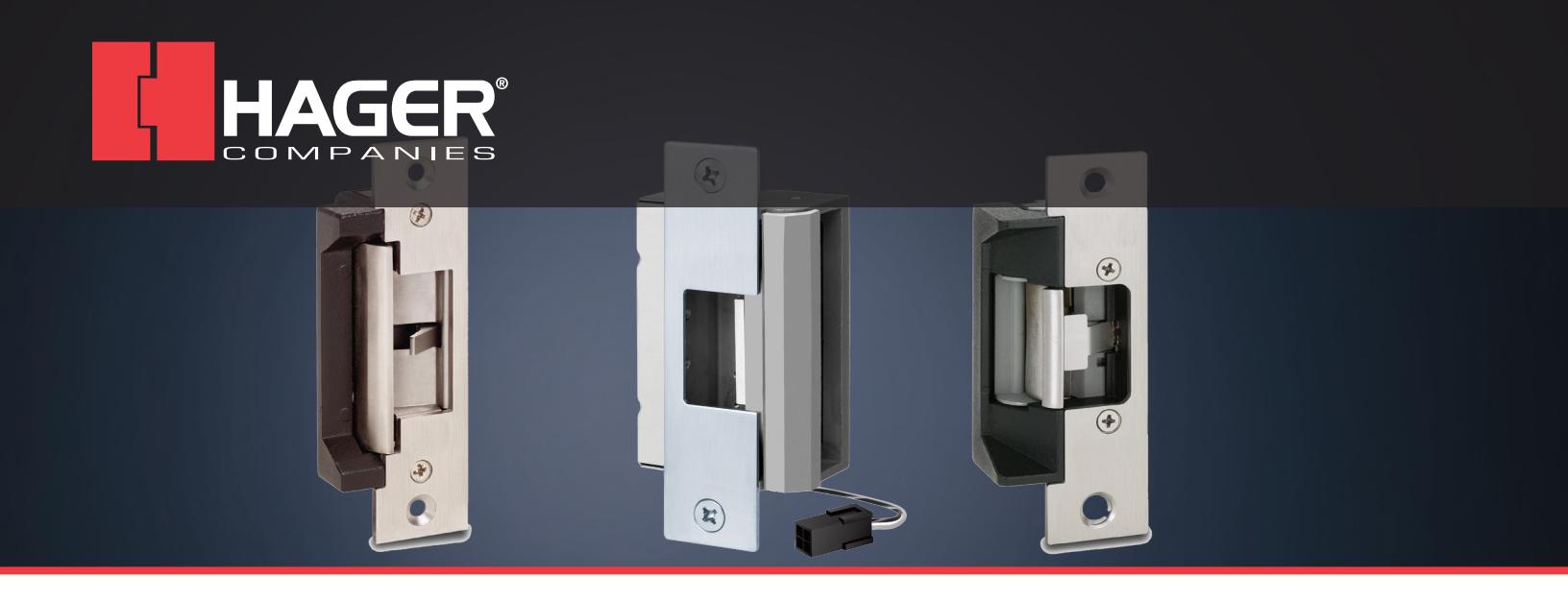

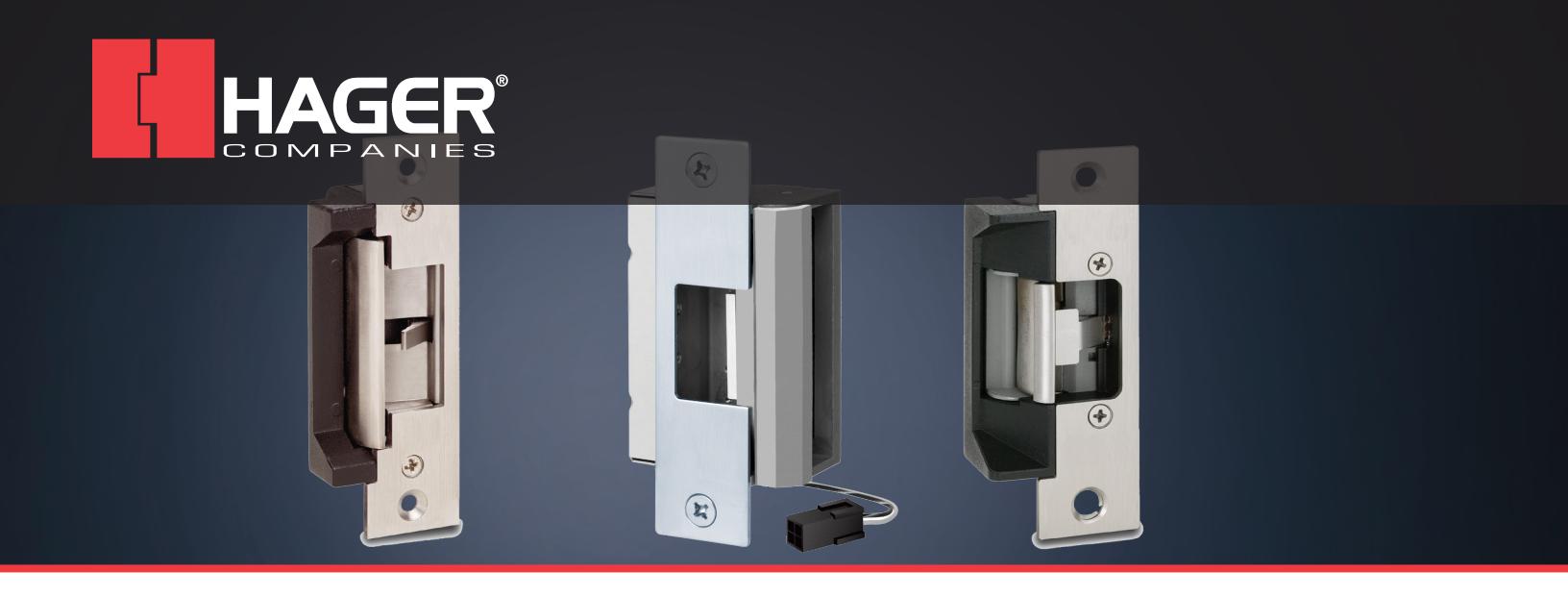

| ELECTRIFIED STRIKES | Low profile electric door strike | 25-4U | 5 SERIES | 1500 SERIES | 5100 | 2925 | |||
| Multi-application electric door strike | 45 SERIES | 6 SERIES | 1600 SERIES |
5000
SERIES |
VISTA 3 | 5100 SERIES | 2928 | ||
| Universal application electric door strike | 55 SERIES | UNL/MUNL | 2 SERIES | 1006 SERIES | 742-75 | 6200 SERIES | 2930 | ||
| DESCRIPTION | SDC | SECURITRON | RCI | DYNALOCK | SCHLAGE | DORTRONICS | HAGER | ||
| Magnetic lock - 600 lb holding force | E600 | M38 SERIES | 8371 | 2500 SERIES | M420 | 1115 | 2941 | ||
| MAGNETIC LOCKS | Magnetic lock - 1200 lb holding force | E1200 | M62 SERIES | 8310 | 2000 SERIES | M490 | TJ1000 | 2942 | |
| Magnetic lock (single) - 1650 Ib holding force | 1511 V | M82B SERIES | 8310 | 3000 SERIES | M490 | 1150 | 2951 | ||
|
Magnetic lock (double) - 1650
Ib holding force |
1512 V | DM62 SERIES | 8320 | 3002 | M492 | 1152 | 2952 | ||
|
Magnetic lock (single) - 1200
Ib holding force |
1571 V | M68 SERIES | 8310 | 200 SERIES | M450 | 1110 | 2953 | ||
|
Magnetic lock (double) - 1200
holding force |
1572 V | DM62 SERIES | 8320 | 2022 | M452 | 1120 | 2954 | ||
| Magnetic shear lock - 2000 lb holding force | 1561 ITCM | SAM | GF3000 | 2961 |
GF3000
Note: Please consult each manufacturer's catalog for specific options and fire rating information.
SAM
1565ITC
2965
Electrified Products Conversion Chart
| DESCRIPTION | SDC | SECURITRON | RCI | DYNALOCK | SCHLAGE | VON DUPRIN | HAGER | |
|---|---|---|---|---|---|---|---|---|
|
CONTROL
ACCESS ACCESSORIES |
HID ProxCard II | HID1326-25 | 932-10UCP | 7551 | 7510 | 2-679-0021 | ||
| HID ProxKey II | HID1346-10 | 932-10UKP | 7561 | 7610 | 2-679-0023 | |||
| Heavy duty indoor keypad | 918 U | DK-12 | 9212i | 7300 | 2915 | |||
|
Heavy duty indoor/outdoor
keypad |
920 | DK-16 | 9212iLW | 7300 | 2916 | |||
| Proximity/PIN reader | E4KP | 9320 | 7500 | SSXF2110 | 2920 | |||
| PIR egress sensor | MD-31D-W | XMS | 915 | 6420 | SCAN II | 2-679-0611 | ||
|
Concealed mortise power
transfer loop |
PT-5 | CEPT | 9512 | 2-679-0620 | ||||
| Power transfer (2 wire) | PTM-2 ALM | CEPT | EPT-2 | 2-679-0621 | ||||
| Power transfer (10 wire) | PTM-10 ALM | CEPT | EPT-10 | 2-679-0623 | ||||
| Emergency door release | 491 | 7075 | 740 SERIES | 2-679-0650 | ||||
|
Modular access control power
supply |
602RF | BPS-12/24-1 | 10-175UL | 5025 | PS902 | PS861 | 2908 | |
|
DELAYED
EGRESS |
Integrated delayed egress
lock |
1511S V NA K | DE8310 | 3101B | 2958 | |||
|
Delayed egress with wall
mount controller |
S61 Delayed
Egress 36" 626 - KDE |
DEMLS | QS1 | CHEXIT |
4501R Delayed
Egress |
|||
| Non-latching push bar | PSB560V | TSB-3 | 120 SERIES | 6451 | 692 | 4801 | ||
|
KEY & EXIT
SWITCHES |
Key switch | 701 U | MK | 960 | 7000 SERIES 650 SERIES | 29KS | ||
| Exit switch | 422 U | PB2 SERIES | 972 | 6270 | 700 SERIES | 2972 | ||
| Code compliant exit switch | 423M U | EEB | 972 | 2973 | ||||
| Piezoelectric exit switch | 463 630 | SP-1 | 917 | 6610 | 2977 | |||
| Touchless exit switch | 474 630 | 2978 |
Note: Please consult each manufacturer's catalog for specific options and fire rating information.
