2016 Hager Companies Hager Euroline Catalog
It's been more than 166 years since Charles Hager first started working in a blacksmith shop. In that timespan, we've grown from forging wheel rims for Conestoga wagons to offering more than 6,000 door hardware products. Today, the products created by Hager Companies are found all over the world. And for good reason: they're built to last.
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share.
Every product that Hager offers is backed by a legacy of quality, reputation, and excellence. For a complete collection of our products, visit us online at www.hagerco.com or request a complete catalog.
Euroline
Most people in the North American door hardware industry are familiar with ANSI - American National Standards Institute, BHMA - Builders Hardware Manufacturers Association, along with UL - Underwriters Laboratories and Intertek. However these standards and fire codes, which are strictly enforced in the United States and Canada, are not customary in approximately 90% of the rest of the world.
European standards - EN and CE - are dominant in Europe, the Middle East and most of Asia. Any hardware products sold into areas that embrace these standards must meet their cycle and fire tests, which are completely different than those of ANSI and UL.
Hager Companies launched the Euroline in 2008 to provide a comprehensive product line that meets and exceeds EN and CE standards. It currently consists of a complete product portfolio including hinges, trim & auxiliary, door controls, exit devices, mortise locks, cylinders, levers, and accessories.
Since the product line has expanded and Hager Companies has been successful in marketing in Latin America, the Middle East and Asia. In addition, our Euroline products recently passed separate stringent fire tests in Mainland China.
As always, service is our number one priority and that is true for our global customers as well. We have representatives across the globe as well as distribution centers in Dubai, United Arab Emirates and Zhuhai, China.
Table of Contents
|
Locks
5 |
|
|---|---|
| Lock Functions | 6 |
|
Lock Bodies
|
9 |
| Lever Options - Locks 13 | |
| Trim – Locks 21 | |
| Cylinders 23 | |
|
Door Controls
25 |
|
|
Surface Door Closers
26 |
|
| Surface Door Closers - Accessories 27 | |
| Concealed Door Closers 28 | |
| Floor Springs 29 | |
| Exits 31 | |
|---|---|
|
Patch Fittings
35 |
|
|

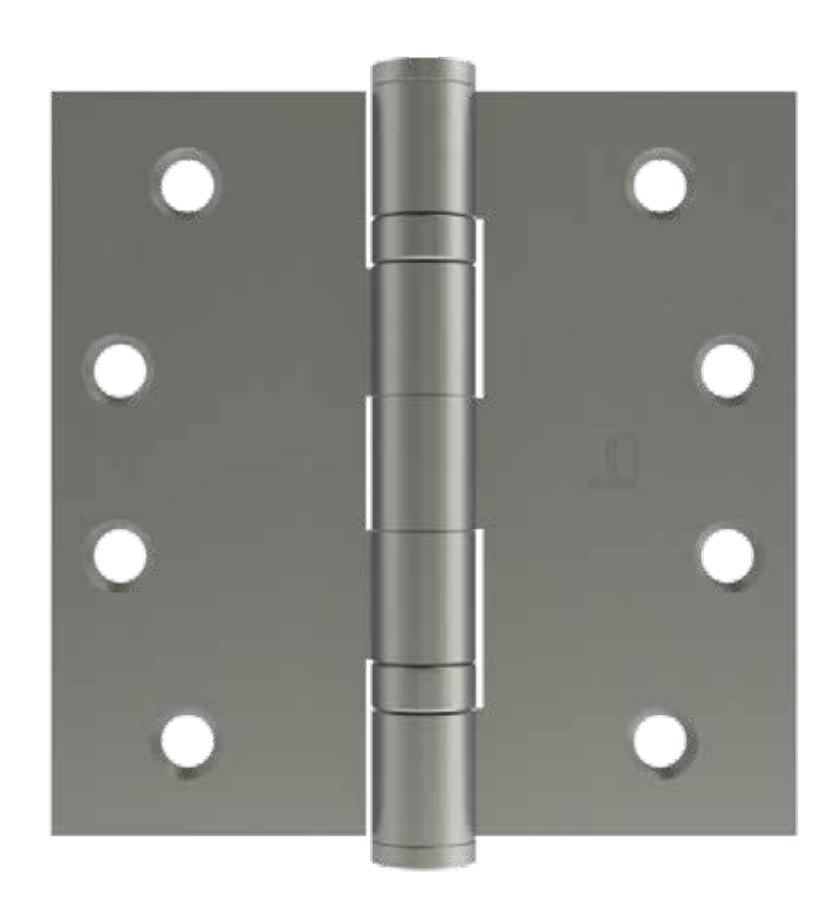

Commercial Hinges
39 |
|
|
Trim & Auxiliary
41 |

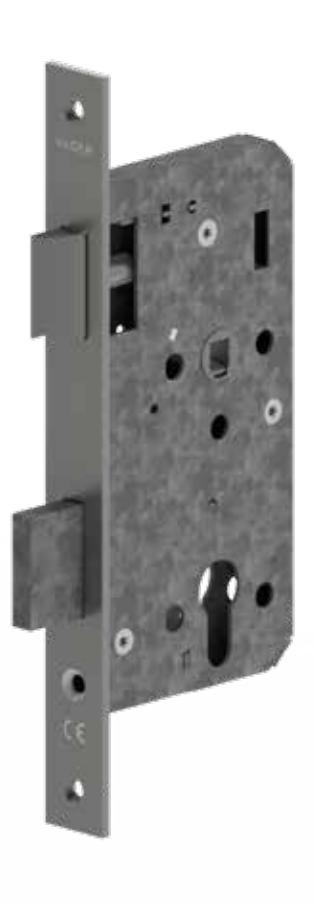

Locks
European locksets are sold in component form: lock body, lever set and cylinder. This allows end users to mix and match cylinders, levers and lock bodies from a vast array of different manufacturers. It also allows multiple mechanical and electronic keyways to be used interchangeably. This modular approach allows for greater flexibility on the jobsite. Consult the diagram and charts on the next three pages to see function options and the components required.
LOCK FUNCTIONS
Lock Components Symbol Key Active Lever Inactive Lever Key Cylinder Thumb-turn Emergency Release Blank Rose Standard Spindle Half Spindle Split Spindle No Spindle Latchbolt Anti-Thrust Bolt Deadbolt Cylinder Type Spindle Lever Type
LOCK FUNCTIONS
| Picture | Function | Function Description | Required Parts |
|---|---|---|---|
| Passage | Latchbolt operated by lever from either side at all times. |
3800U-55L
Leverset |
|
| Bathroom Indicator |
Latchbolt operated by lever from either side at all times. Deadbolt
operated by thumbturn from inside and by emergency release with indicator from outside. |
3800U-55B
Leverset 2-669-0736 |
|
| Privacy |
Latchbolt operated by lever from either side at all times. Deadbolt
operated by thumbturn from inside and by emergency release from outside. |
3800U-55S
Leverset 3000R |
|
| Classroom |
Latchbolt operated by lever from either side. Deadbolt operated by
key from outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000H |
|
| Storeroom |
Latchbolt operated by key from outside or by operating inside lever.
Outside lever never retracts latchbolt. |
3800U-55M
Leverset Half Spindle** 3000H |
|
| Security Storeroom |
Latchbolt operated by key from outside or by operating inside lever.
Outside lever never retracts latch. Anti-thrust bolt. |
3800U-55T
Leverset Half Spindle** 3000H |
|
| Exit |
Latchbolt operated by lever from either side. Deadbolt operated by
key from outside and by thumbturn from inside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000C |
|
| Entrance |
Latchbolt operated by lever from either side. Deadbolt operated by
key from either side. |
3800U-55S
Leverset 3000D |
* Use the split spindle in place of the spindle that comes with the leverset.
** Use the half spindle going into the inside lever in place of the spindle that comes with the leverset.
LOCK FUNCTIONS
| Picture | Function | Function Description | Required Parts |
|---|---|---|---|
| Bedroom | Latchbolt operated by lever from either side. Deadbolt operated by thumbturn from inside and emergency release from outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000R |
|
| 412 | Dormitory | Latchbolt operated by lever from either side. Deadbolt operated by key from outside and thumbturn from inside. |
3800U-55S
Leverset 3000C |
| Institutional | Latchbolt operated by key from either side. Neither lever retracts latchbolt. |
3800U-55M
Leverset** 3000D |
|
| Security Institutional | Latchbolt operated by key from either side. Neither lever retracts latchbolt. Anti-thrust bolt. |
3800U-55T
Leverset** 3000D |
|
| Security Classroom | Latchbolt operated by lever from either side. Deadbolt operated by key from inside or outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000D |
|
| ⊶ | Double Deadbolt | Deadbolt operated by key from either side. No latchbolt. |
3800U-55F
3000D |
| SH LIHM | Privacy Deadbolt | Deadbolt operated by key from outside and by thumbturn from inside. No latchbolt. |
3800U-55F
3000C |
| . | Single Deadbolt | Deadbolt operated by key from outside only. No latchbolt. |
3800U-55F
3000H |
* Use the split spindle in place of the spindle that comes with the leverset. ** Do not install the spindle that comes with the leverset.
3000U-60H Series Sliding Door Mortise Lock
Warranty: Three-year
Backset: • 60 mm - 3800U-60H Forend Length: • 169.3 mm - 3800U-60H
Forend Width: 22 mm
Deadbolt Length: • 18 mm - 3800U-60H
Strike Length: 104 mm Strike Width: 22 mm Material: Steel Finish: US32D
Fasteners: Four (4) 3.5 mm x 25 mm FPHWS
Includes: Mortise lock, strike plate, and fixing screws
Notes: 3 mm forend round corners available upon request
3800U-55B
Bathroom Mortise Lock
Warranty: Three-year
Certifications: • EN 12209: 2003 / EN1634 -1: 2000 (4-Hour Fire-Rated)
• CE Classification 3X510F-BG20
• CertiFire CF 5283
Backset: 55 mm Center to Center: 78 mm Forend Length: 235 mm Forend Width: 24 mm Deadbolt Throw: 20 mm Latchbolt Throw: 12.5 mm Strike Length: 172 mm Strike Width: 24 mm Strike Width w/ Lip: 39 mm Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS and three (3) 3.5 mm x 20 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
• Non-CE certified version available
3800U-55D
Deadlock Small Mortise Lock
Warranty: Three-year Backset: 55 mm Forend Length: 150 mm Forend Width: 24 mm Deadbolt Throw: 22 mm Strike Length: 90 mm Strike Width: 24 mm Material: Steel Finish: US32D
Fasteners: Four (4) 3.5 mm x 25 mm
Includes: Mortise lock, strike plate, and fixing screws Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
3800U-55F
Deadbolt Mortise Lock
Warranty: Three-year
Certifications: • EN12209: 2003 / EN1634-1: 2000 (4-Hour Fire-Rated)
• CE Classification 3X510F3BC00
• CertiFire CF 5283
Backset: 55 mm Forend Length: 235 mm Forend Width: 24 mm Deadbolt Throw: 20 mm Strike Length: 90 mm Strike Width: 24 mm Finish: US32D
Fasteners: Two (2) each 4 mm x 25 mm FPHWS and 3.5 mm x 25 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Cylinders and levers sold separately
• 3 mm forend round corners available upon request
3800U-55L
Latch Mortise Lock
Warranty: Three-year Backset: 55 mm Forend Length: 235 mm Forend Width: 24 mm Latchbolt Throw: 12.5 mm Strike Length: 102 mm Strike Width: 24 mm Strike Width w/ Lip: 39 mm Finish: US32D
Fasteners: Two (2) each 4 mm x 25 mm FPHWS and 3.5 mm x 19 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
3800U-55M
Nightlatch Mortise Lock
Warranty: Three-year
Certifications: • EN 12209: 2003 / EN 1634-1: 2000 (4-Hour Fire-Rated)
• CE Classification 3X510F-B020
• CertiFire CF 5283
Backset: 55 mm Center to Center: 72 mm Forend Length: 235 mm Forend Width: 24 mm Latchbolt Throw: 12.5 mm Strike Length: 102 mm Strike Width: 24 mm Strike Width w/ Lip: 39 mm Finish: US32D
Fasteners: Two (2) each 4 mm x 25 mm FPHWS and 3.5 mm x 19 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
• To be used with half spindle (2-669-0732), sold separately
3800U-55P Anti-Panic Mortise Lock
Warranty: Three-year
Certifications: • EN 179: 2008 / EN 1634-1: 2000 (4-Hour Fire-Rated)
• CE Classification 376B1342A B/D
• CertiFire CF 5283
Backset: 55 mm Center to Center: 72 mm Forend Length: 235 mm Forend Width: 24 mm Latchbolt Throw: 12.5 mm Deadbolt Throw: 20 mm Strike Length: 172 mm Strike Width: 24 mm Strike Width w/ Lip: 39 mm Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS and three (3) 3.5 mm x 19 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Deadbolt retracts with latch when inside lever is turned to allow
emergency exit
• Cylinders and levers sold separately
• Field reversible, non-handed
• Must be used with 6802 lever for anti-panic compliance
• 3 mm forend round corners available upon request
• To be used with split spindles, 2-669-0733, sold separately
3800U-55S Sash Mortise Lock
Warranty: Three-year
Certifications: • EN 12209: 2003 / EN 1634-1: 2000 (4-Hour Fire-Rated)
• CE Classification 3X510F3BC20
• CertiFire CF 5283
Backset: 55 mm Center to Center: 72 mm Forend Length: 235 mm Forend Width: 24 mm Deadbolt Length: 20 mm Latchbolt Length: 12.5 mm Strike Length: 172 mm Strike Width: 24 mm Strike Width with Lip: 39 mm Material: Steel Finish: US32D
Includes: Mortise lock, strike plate, and fixing screws
Fasteners: Four (4) 3.5 mm x 25 mm FPHWS Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
• Non-CE certified version available
3800U-55T
Nightlatch w/ Anti-Thrust Bolt Mortise Lock
Warranty: Three-year
Certifications: • EN 12209: 2003 / EN 1634-1: 2000 (4-Hour Fire-Rated)
• CE Classification 3X510F2BB20
• CertiFire CF 5283
Backset: 55 mm Center to Center: 72 mm Forend Length: 235 mm Forend Width: 24 mm Latchbolt Throw: 12.5 mm Strike Length: 102 mm Strike Width: 24 mm Strike Width w/ Lip: 39 mm Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS and two (2) 3.5 mm x 19 mm FPHWS
Includes: Mortise lock body, strike plate, and fixing screws
Notes: • Cylinders and levers sold separately
• Field reversible, non-handed
• 3 mm forend round corners available upon request
• To be used with half spindle (2-669-0732), sold separately
LEVER OPTIONS - LOCKS
6801
Tube Lever
Warranty: Three-year Lever Rose: 54 mm diameter Cylinder Rose: • 54 mm diameter • 10 mm width
Door Thickness: 35 mm to 50 mm Material: Stainless steel Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
6802
Tube Lever
Warranty: Three-year Lever Rose: 54 mm diameter Cylinder Rose: • 54 mm diameter • 10 mm width Door Thickness: 35 mm to 50 mm Material: Stainless steel
Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
6803
Tube Lever
Warranty: Three-year Lever Rose: 54 mm diameter Cylinder Rose: • 54 mm diameter • 10 mm width Door Thickness: 35 mm to 50 mm Material: Stainless steel
Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
6805
Tube Lever
Warranty: Three-year Lever Rose: 54 mm diameter Cylinder Rose: • 54 mm diameter • 10 mm width Door Thickness: 35 mm to 50 mm
Material: Stainless steel Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
LEVER OPTIONS - LOCKS
6815
Solid Lever Warranty: Three-year Lever Rose: 54 mm diameter Cylinder Rose: • 54 mm diameter • 10 mm width
Door Thickness: 35 mm to 50 mm Material: Stainless steel
Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
6823
Solid Lever
Warranty: Three-year
Lever Rose: 52 mm x 52 mm x 10 mm Cylinder Rose: 52 mm x 52 mm x 10 mm Door Thickness: 35 mm to 50 mm
Material: Stainless steel Finish: US32D
Includes: Two (2) levers, two (2) cylinder roses, and mounting hardware
Notes: Must specify handing
TRIM - LOCKS
2-669-0644
Replacement Rose Kit
Application: For use with Euroline deadlock mortise locks
Material: Stainless steel
Finish: US32D
Dimensions: 54 mm diameter
10 mm width Fasteners: Two (2) M4 x 60 mm FPHMS with sex nuts plus
four (4) 4 mm x 22 mm FPHWS
2-669-0645/2-669-1363
Lever Spindle Extension Kit
Application: For use on doors 50 mm thick to 63.5 mm thick Models: 2-669-0645; used with circular rose levers
2-669-1363; used with square rose levers Material: Steel
Includes: One (1) extension shaft and four (4) M4 x 75 mm screws with sex nuts
2-669-0735 Strike Dust Box
Application: For use with Euroline mortise lock strike plates
Material: Plastic (white) Includes: One (1) dust box
2-669-0736
Bathroom Turn Indicator with Emergency Release
Application: For use with 3800U-55B bathroom mortise lock
Rose Diameter: 52 mm Rose Thickness: 4 mm Knob Projection: 27 mm
Door Thickness: 51 mm maximum Material: Stainless steel
Finish: US32D
Fasteners: Four (4) 3.5 mm x 25 mm
TRIM - LOCKS
2-669-0732 Half Spindle
Length: 58 x 8 x 8 mm
Notes: • Used with 3800U-55M and 3800U-55T mortise night latches
• Hook at spindle head ensures secure fit when used with half lever sets
2-669-0733 Split Spindle
Length: 52.5 x 8 x 8 mm each spindle
105 mm total length
Notes: • Used with 3800U-55P mortise anti-panic split follower locks
• Enables independent operation on inside and outside of doors
3910 Padlock
Material: • Body - steel
• Shackle - hardened steel
Body Width: 44 mm Body Height: 56.2 mm Body Thickness: 22.8 mm Cylinder: Removable Shackle Height: 34.5 mm Shackle Diameter: 8 mm Keyway: Schlage C
Keying: • Keyed Different (KD) - Standard
• Master Key (MK) - Optional
Includes: One (1) padlock with removable cylinder and two (2) brass keys
Notes: Spring loaded shackle
CYLINDERS
3000-D Series Double Cylinder
Warranty: Three-year
Application: For use with Euroline mortise locks
Function: Key on both sides Length: • 60 mm - 3000-60D • 70 mm - 3000-70D
• 75 mm - 3000-75D; H1 • 80 mm - 3000-80D • 90 mm - 3000-90D
Material: Brass Finish: US15
Cylinder: • 5-pin (3000-60D)
• 6-pin (3000-70D and 3000-80D)
• 7-pin (3000-75D; H1) Keyways: Hager H1 or Schlage C
Keying: • Keyed Different (KD) - standard (Schlage C keyway only)
• Master Key (MK) - optional (H1 keyway only)
Keys: Three (3) keys
Includes: One (1) cylinder, three (3) nickel-plated steel keys, and one (1) fixing screw
3000-H Series Half Cylinder
Warranty: Three-year
Application: For use with Euroline mortise locks Function: Key one side, other side blank
Length: • 40 mm - 3000-40H
• 45 mm - 3000-45H
• 50 mm - 3000-50H; H1
Material: Brass Finish: US15
Cylinder: • 5-pin (3000-40H)
• 6-pin (3000-45H) • 7-pin (3000-50H; H1)
Keyways: Hager H1 or Schlage C
Keying: • Keyed Different (KD) - standard (Schlage C keyway only)
• Master Key (MK) - optional (H1 keyway only)
Keys: Three (3) keys
Includes: One (1) cylinder, three (3) nickel-plated steel keys, and one (1) fixing screw
CYLINDERS
3000-C Series Thumbturn Cylinder
Warranty: Three-year
Application: For use with Euroline mortise locks Function: Key one side, thumbturn other side
Length: • 60 mm - 3000-60C
• 70 mm - 3000-70C • 75 mm - 3000-75C; H1 • 80 mm - 3000-80C • 90 mm - 3000-90C
Material: Brass Finish: US15
Cylinder: • 5-pin (3000-60C)
• 6-pin (3000-70C and 3000-80C)
• 7-pin (3000-75C; H1)
Keyways: Hager H1 or Schlage C
Keying: • Keyed Different (KD) - standard (Schlage C keyway only)
• Master Key (MK) - optional (H1 keyway only)
Keys: Three (3) keys
Includes: One (1) cylinder, three (3) nickel-plated steel keys, and one (1) fixing screw
3000-R Series
Thumbturn Cylinder with Emergency Release
Warranty: Three-year
Application: For use with Euroline mortise locks
Function: Thumbturn one side, emergency release other side
Length: • 60 mm - 3000-60R
• 70 mm - 3000-70R • 80 mm - 3000-80R • 90 mm - 3000-90R
Material: Brass Finish: US15
Includes: One (1) cylinder and one (1) fixing screw
Door Controls
Door control devices allow for precise regulation of both the opening and closing of commercial doors. Hager Companies' Euroline portfolio includes a wide range of door control products including universal surface mount closers, concealed in door models, and floor springs.
SURFACE DOOR CLOSERS

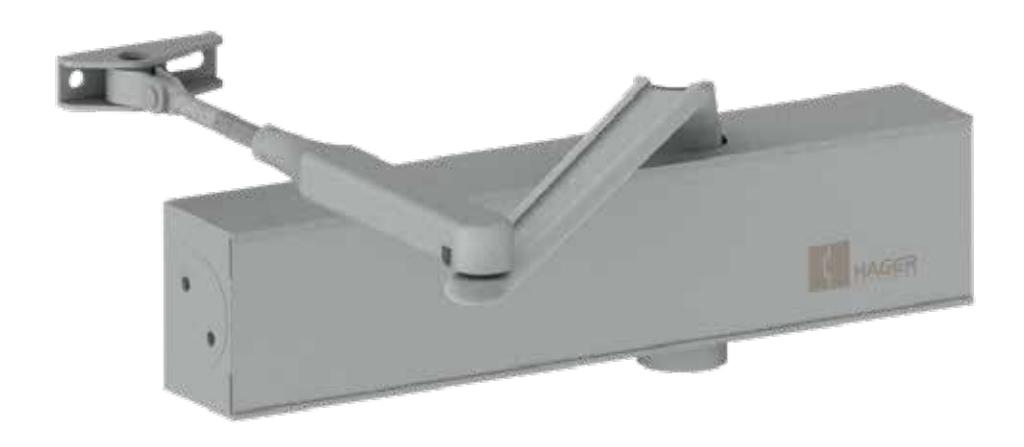

5800R
Surface Door Closer
Warranty: Five-year
Certifications: • CertiFire CF 5390
• Tested to EN1154 (4:8:2/5:1:1:3)
• Certified for fire doors
Overall Dimensions: 237 (l) x 55 (h) x 39 (projection) mm
Door Width: 850 mm to 1250 mm Door Weight: 45 kg to 110 kg Maximum Opening: 180 degrees
Valves: • Adjustable latching and sweep speed valve
• Adjustable backcheck valve
• Adjustable delayed action valve
Adjustable Size: 2 to 5 Material: Aluminum Finish: Aluminum
Options: Hold open arm (2-659-0149) Sliding track arm (2-659-0087) Metal closer cover (2-659-0088) Parallel arm bracket (2-659-0097)
5800V
Surface Door Closer
Warranty: Five-year
Certifications: • Tested to EN1154 (4:8:3:1:1:3)
• Certified for fire doors
Overall Dimensions: 218 (l) x 59 (h) x 42 (projection) mm
Door Width: 850 mm - 1100 mm Door Weight: 45 kg - 80 kg Maximum Opening: 180 degrees
Valves: • Adjustable latching and sweep speed valve
• Adjustable backcheck valve
Size: 2 to 4 adjustable via mounting position
Material: Aluminum Finish: Aluminum
Options: Hold open arm (2-659-0149) Sliding track arm (2-659-0087) Parallel arm bracket (2-659-0097)
5800X
Surface Door Closer
Warranty: Five-year
Certifications: • CertiFire CF 5390
• Tested to EN1154 (4:8:3/6:1:1:3)
• Certified for fire doors
Overall Dimensions: 275 (l) x 62 (h) x 45 (projection) mm
Door Width: 950 mm - 1450 mm Door Weight: 60 kg - 120 kg Maximum Opening: 180 degrees
Valves: • Adjustable latching and sweep speed valve
• Adjustable backcheck valve
Adjustable Size: 3 to 6 Material: Aluminum Finish: Aluminum
Options: Hold open arm (2-659-0149) Sliding track arm (2-659-0087)
SURFACE DOOR CLOSERS - ACCESSORIES
2-659-0087
Slide Arm and Track Assembly
Warranty: Five-year
Material: Aluminum track, steel arm
Finish: Aluminum
Overall Dimensions: 19 (h) x 547 (w) 29 (d) mm
Notes: For use with 5800R, 5800X and 5800V
2-659-0088
Surface Door Closer Cover
Material: Stainless steel Finish: US32D
Overall Dimensions: 73 (h) x 267 (w) x 38 (d) mm Notes: For use with 5800R only
2-659-0097 Parallel Arm Bracket
Material: Steel Finish: Aluminum
Notes: • Can be used to convert regular or top jamb arm to parallel arm
• For use with 5800R, 5800X and 5800V
2-659-0149
Hold Open Arm for Surface Door Closer
Material: Steel Finish: Aluminum
Notes: • For use with 5800R, 5800X and 5800V
• Adjustable hold open angle
CONCEALED DOOR CLOSERS
5800C
Concealed Door Closer
Warranty: Five-year
Certifications: Conforms to EN1154 Body Dimensions: 230 (l) x 32 (w) x 70 (h) mm Track Dimensions: 460 (l) x 29 (w) x 19 (h) mm
Size: 3
Maximum Opening: 120 degrees Door Width: 950 mm Door Weight: 60 kg
Mechanism: Rack and pinion Material: Aluminum Finish: Aluminum
Notes: Track comes standard with hold open feature (can be removed to
become non-hold open)
5800D
Concealed Door Closer
Warranty: Five-year Certifications: • CertiFire CF 5392
• Tested to EN1154 (4:8:2/4:1:1:3)
• Certified for fire doors (unless using hold open feature)
Body Dimensions: 210 (l) X 32 (w) X 53.5 (h) mm Track Dimensions: 460 (l) x 29 (w) x 19 (h) mm
Door Width: 850 mm - 1100 mm Door Weight: 40 kg - 80 kg
Adjustable Size: 2 to 4 Maximum Opening: 120 degrees Mechanism: Cam action Material: Aluminum Finish: Aluminum
Notes: • Track comes standard with hold open feature (can be removed
to become non-hold open)
• Double acting
FLOOR SPRINGS
5800F
Floor Spring
Warranty: Five-year
Certifications: Tested to EN1154 (4:8:3:1:1:3) Overall Dimensions: 306 (l) x 108 (w) x 40 (h) mm
Size: 3
Maximum Opening: 130 degrees Door Width: 950 mm maximum
Door Weight: 105 kg Material: Cast iron Finish: US32D
Cover: US32D stainless steel
5815F
Floor Spring with 90 Degree Hold Open
Warranty: Five-year
Certifications: Conforms to EN1154
Overall Dimensions: 306 (l) x 108 (w) x 40 (h) mm
Size: 3
Maximum Opening: 130 degrees Door Width: 950 mm maximum
Door Weight: 105 kg Material: Cast iron Finish: US32D
Cover: US32D stainless steel Notes: Built in hold open
5800H
Floor Spring
Warranty: Five-year
Certifications: Conforms to EN1154 (4:8:3/6:1:1:3)
Overall Dimensions: 323 (l) x 94 (w) x 62 (h) mm
Adjustable Size: 3 to 6 Maximum Opening: 150 degrees Door Width: 1450 mm maximum
Door Weight: 300 kg Material: Cast iron Finish: US32D
Cover: US32D stainless steel
5815H
Heavy Duty Floor Spring with 90 Degree Hold Open
Warranty: Five-year
Certifications: Conforms to EN1154
Overall Dimensions: 323 (l) x 94 (w) x 62 (h) mm
Adjustable Size: 3 to 6 Maximum Opening: 150 degrees
Door Width: 1450 mm maximum
Door Weight: 300 kg Material: Cast iron Finish: US32D
Cover: US32D stainless steel
Exit Devices
Exit devices are the most important life safety product in a building's security system. They are the item on a door that we all need to rely on to exit in either a panic or an emergency. Exit devices should not require any person to have prior knowledge of their function – you just push and go. Hager offers exit devices in rim and surface vertical rod versions in both stainless steel and silver painted finishes to suit the vast majority of door sizes and applications.
EXIT DEVICES

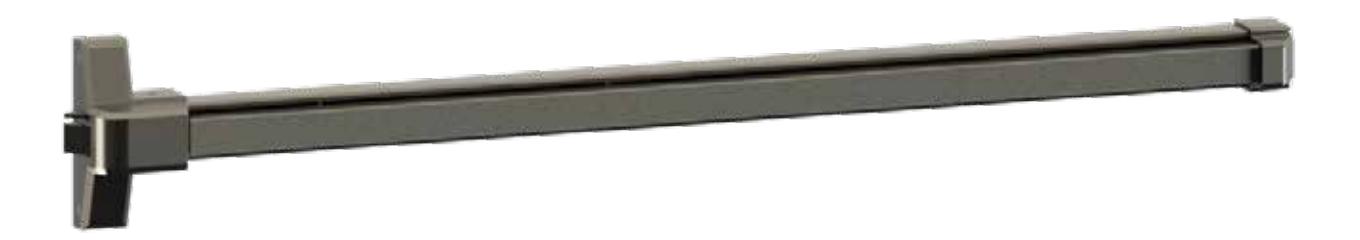

4200 Series Rim
Rim Exit Device
Warranty: Three-year
Certifcations: • Tested to EN1125 (3:7:6:B:1:4:2:2:B:A) • Certified for fire doors (60m Wood Doors)
Application: • For single doors
• The first opening leaf of double doors when using a
double door strike
Features: • Stainless steel construction
• Dead locking latch bolt standard
• Non-handed
Trim: • 42CE - William lever with cylinder escutcheon
• 42KE - Withnell lever with key in lever
Functions: • Cylinder escutcheon - key locks or unlocks lever
Door Width: • 762 mm to 1220 mm for single doors
• 1524 mm to 2440 mm for double doors
Door Thickness: • Up to 50 mm Projections: • 63 mm
Fasteners: • Wood and machine screws
• Thru-bolts
Latchbolt: • Stainless steel 15 mm throw with automatic dead-latching
Strikes: • Stainless steel door strike supplied standard
• Stainless steel double door strike optional (2-649-
5011)
Finishes: • US32D, ALM
• Trim only available in US32D
4200 Series Surface Vertical Rod Surface Vertical Rod Mount Panic Exit Device
Warranty: Three-year
Certifcations: • Tested to EN1125 (3:7:6:B:1:4:2:2:B:C)
• Certified for fire doors (60m Wood Doors)
Application: • For single or double doors Features: • Stainless steel construction
• Non-handed
Trim: • 42CE - William lever with cylinder escutcheon
• 42KE - Withnell lever with key in lever
Functions: • Cylinder escutcheon - key locks or unlocks lever
Door Width: • 762 mm to 1220 mm for single doors
• 1524 mm to 2440 mm for double doors
Door Height: • 1524 mm to 2134 Door Thickness: • Up to 50 mm
Projections: • 63 mm
Fasteners: • Wood and machine screws
• Thru-bolts (latches only)
Latchbolt: • Top - Stainless steel 15 mm throw with automatic
dead-latching
• Bottom - Stainless steel 15 mm throw, held
retracted during door swing
Strikes: • Stainless steel top and bottom strike supplied standard
• Stainless steel double door strike supplied standard
Finishes: • US32D, ALM
• Trim only available in US32D
EXIT DEVICE TRIM
42CE
4200 Series Cylinder Escutcheon Trim
Warranty: Three-year
Function: Key locks or unlocks lever
Levers: William lever Projection: 84.1 mm
Escutcheon: 47 mm x 211 mm
Cylinders: • 3000-40 H half cylinder (sold separately)
• 45 mm & 50 mm will work, but will not be flush (sold separately)
Door Thickness: Up to 50 mm
Backset: 56 mm for Hager 4200 Exit Devices
Finish: US32D Notes: Non-handed
42KE
4200 Series Key-in-Lever Trim
Warranty: Three-year
Function: Entrance by lever exit device trim (key locks or unlocks lever)
Levers: Withnell lever Projection: 55 mm
Standard Door Prep: 54 mm diameter (cross bore)
Rose Diameter: 76 mm
Keys: Three (3) brass keys supplied per lock Cylinders: Brass 5-pin (Schlage C keyway standard)
Door Thickness: Up to 50 mm
Backset: 56 mm for Hager Exit Devices
Finish: US32D Notes: Non-handed
Patch Fittings
Patch fittings allow for the hanging and operation of glass doors in conjunction with floor springs and locking systems. Hager Companies provides a comprehensive range of patch fittings and pivot assemblies to work seamlessly with their floor springs and euro cylinders.
PATCH FITTINGS

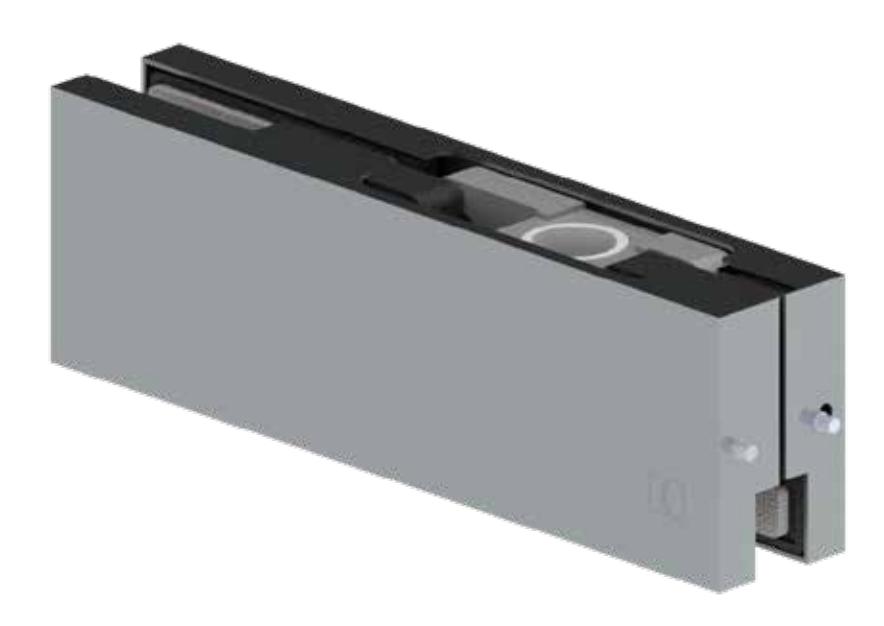

651
Bottom Patch Fitting
Glass Thickness: 10-12 mm
Material: • Cast aluminum base • Stainless steel cover
Maximum Door Weight: 80 kg Maximum Door Width: 1100 mm
Handing: Suitable for left and right hand door (double acting)
Finish: US32
Includes: One (1) patch fitting and one (1) allen key
Installation: Clamp fixing, concealed with hexagonal socket screws Notes: • Pivot post hole for use with all Hager 5800 floor closers
• Pivot laterally adjustable +/- 3 mm
652
Top Patch Fitting
Glass Thickness: 10-12 mm
Material: • Cast aluminum base • Stainless steel cover
Maximum Door Weight: 80 kg Maximum Door Width: 1100 mm
Handing: Suitable for left and right hand door (double acting)
Finish: US32
Includes: One (1) patch fitting and one (1) allen key
Installation: Clamp fixing, concealed with hexagonal socket screws
Notes: • Pivot post bearing for use with upper and corner over panel patch fitting
• Pivot laterally adjustable +/- 3 mm
653
Overpanel Patch Fitting
Glass Thickness: 10-12 mm
Material: • Cast aluminum base • Stainless steel cover
Maximum Door Weight: 80 kg Maximum Door Width: 1100 mm
Handing: Suitable for left and right hand door (double acting)
Finish: US32
Includes: One (1) patch fitting and one (1) allen key
Installation: Clamp fixing, concealed with hexagonal socket screws
Notes: • Pivot post for use with top patch fitting
• Pivot laterally adjustable +/- 3 mm
PATCH FITTINGS
654
Corner Overpanel Patch Fitting
Glass Thickness: 10-12 mm
Material: • Cast aluminum base • Stainless steel cover
Maximum Door Weight: 80 kg Maximum Door Width: 1100 mm
Handing: Suitable for left and right hand door (double acting)
Finish: US32
Includes: One (1) patch fitting and one (1) allen key
Installation: Clamp fixing, concealed with hexagonal socket screws
Notes: • Pivot post for use with top patch fitting
• Pivot laterally adjustable +/- 3 mm
655
Bottom Lock Patch Fitting
Glass Thickness: 10-12 mm
Material: • Cast aluminum base
• Stainless steel cover
Handing: Suitable for left and right hand door (double acting)
Finish: US32
Includes: Patch fitting, allen key, floor strikes hardware, Schlage C cylinder
and three (3) keys
Installation: Clamp fixing, concealed with hexagonal socket screws
2-659-0150
Heavy Duty Top Pivot
Material: Cast aluminum base Finish: US15 top pivot cover plate Includes: • One (1) frame pivot
• One (1) stainless steel US15 frame pivot cover with mount screws
• Mounting hardware screw bag
Installation: Vertically adjustable pivot pin for easy door installation
Notes: For use with 652 and non-glass frames
Commercial Hinges
Hager Companies has been the market leader in commercial hinges for over 166 years. That unrivaled experience has been channeled into a range of EN certified hinges to meet the exacting standards of international markets. The Hager Euroline hinge offering includes regular standard duty, rising, and falling models in multiple sizes.
TWO KNUCKLE HINGES FIVE KNUCKLE HINGES
7191
Rising Butt Hinge - Standard Weight - Full Mortise
Stainless steel with stainless steel pin
- Three-year warranty
- Raises door upon opening
- Used to keep door in closed position
- Handed
- Available in US32D
| Hinge Size | Gauge of Metal | Fasteners |
|---|---|---|
| 102 mm x 76 mm | 3 mm | 5 mm x 32 mm FPHWS |
| 102 mm x 102 mm | 3 mm | 5 mm x 32 mm FPHWS |
7192 Falling Butt Hinge - Standard Weight - Full Mortise
Stainless steel with stainless steel pin
- Three-year warranty
- Lowers door upon opening
- Used to keep door in open position
- Handed
- Available in US32D
| Hinge Size | Gauge of Metal | Fasteners |
|---|---|---|
| 102 mm x 76 mm | 3 mm | 5 mm x 32 mm FPHWS |
| 102 mm x 102 mm | 3 mm | 5 mm x 32 mm FPHWS |
BB6191
Ball Bearing - Standard Weight-Full Mortise
Stainless steel with stainless steel pin
- Three-year warranty
- Certifications: EN1935 Grade 13 (Severe Duty for doors up to 120 kg), Corrosion resistance - Grade 4, and EN Certification No: 476114013
- CertiFire CF 5288
- For use on medium weight doors
- Available in US3, US5, US10B, US32D
| Fasteners | |||
|---|---|---|---|
|
Hinge Size
Gauge of Metal |
Machine | Wood | |
| 89 mm x 89 mm | 3 mm | M4.5 x 12 mm |
4.5 mm x 25 mm
FPHWS |
| 102 mm x 76 mm | 3 mm | M5 x 15 mm | 5 mm x 32 mm FPHWS |
| 102 mm x 89 mm | 3 mm | M5 x 15 mm | 5 mm x 32 mm FPHWS |
| 102 mm x 102 mm | 3 mm | M5 x 15 mm | 5 mm x 32 mm FPHWS |
| 127 mm x 89 mm | 3 mm | M5 x 15 mm | 5 mm x 32 mm FPHWS |
INVISIBLE HINGES
1200 SERIES
Stainless steel with stainless steel pin
- Three-year warranty
- Available in US32D
Key to Dimensions Shown in Charts
All hinges are shipped with the proper size wood screws, unless ordered without. Do not exceed "E" dimension.
| Dimension | 1212 | 1214 | 1216 | 1218 |
| A | 19mm | 25.4mm | 28.2mm | 34.7mm |
| B | 13.1mm | 18.4mm | 22.7mm | 26.99mm |
| C | 95mm | 117.2mm | 117.2mm | 139.65mm |
| D | 3.97mm | 5.56mm | 9.53mm | 12.7mm |
| E | 4.76mm | 6.35mm | 6.35mm | 7.14mm |
| F | 51.7mm | 64.8mm | 61.7mm | 80.65mm |
| G | 2.3mm | 2.8mm | 3.1mm | 1.59mm |
| H | 27.3mm | 37mm | 40.5mm | 48.8mm |
| I | 8.9mm | 11.7mm | 10mm | 11.7mm |
Trim & Auxiliary
To complement our extensive European offering, Hager Companies delivers a wide array of trim & auxiliary products for international markets. This includes door stops, bolts, dust proof strikes, coat hooks, and signage.
DOOR STOPS
248E
Pedestal Door Stop
Base Diameter: 22 mm Height: 30.5 mm
Materials: Stainless steel with rubber bumper
Finish: US32D
Fasteners: One (1) 5 mm x 30 mm FPHWS with anchor
248U
Pedestal Door Stop - Tall
Base Diameter: 28 mm Height: 37.5 mm
Materials: Stainless steel with rubber bumper
Finish: US32D
Fasteners: One (1) 5 mm x 30 mm FPHWS with anchor
241E
Cast Flush Bolt
Base Diameter: 44 mm Height: 24.5 mm Materials: Stainless steel
Finish: US32D
Fasteners: One (1) 7 x 22 mm wood screw One (1) 6 x 25 mm plastic anchor
SURFACE BOLTS
277E
Surface Bolt
Bolt Length: 125 mm Bolt Height: 18 mm Bolt Depth: 6 mm Bolt Throw: 35 mm Base Width: 100 mm Knob Diameter: 25 mm Projection: 32 mm Material: Zinc Finish: US15
Fasteners: Seven (7) 3.5 mm x 25 mm FPHMS
277T

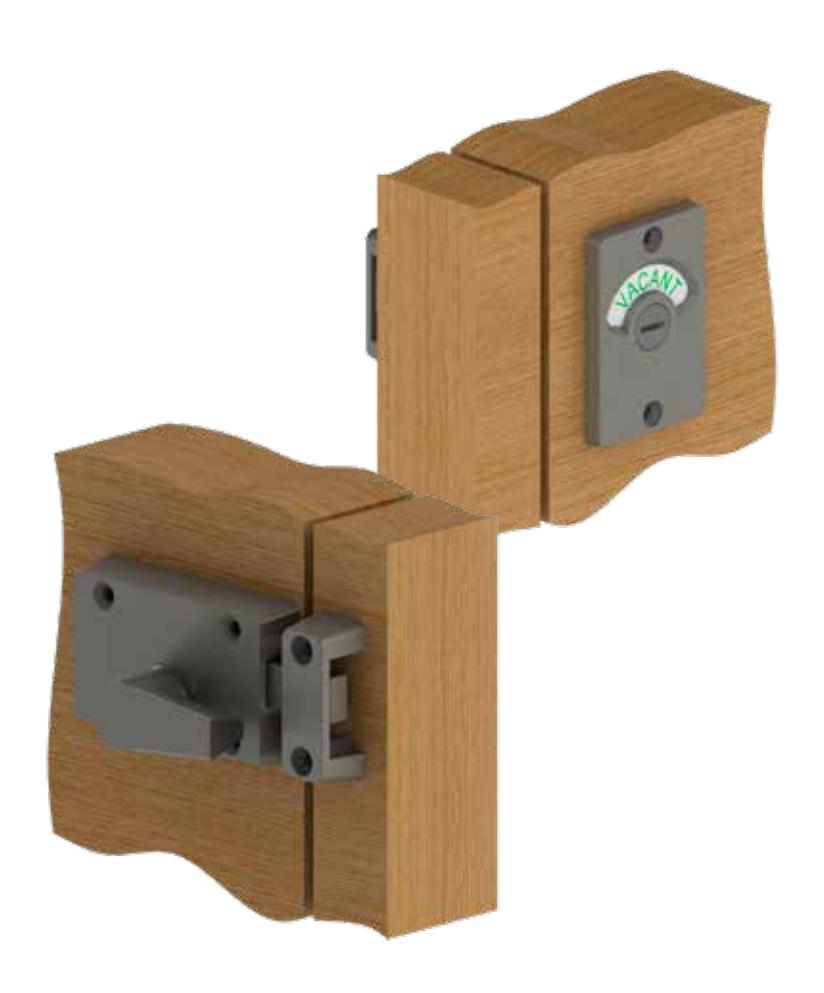

Indicator Thumbturn Bolt
Bolt Length: 87 mm Bolt Height: 11.5 mm Bolt Width: 6 mm Bolt Throw: 19 mm Projection: 29 mm Material: Stainless steel Finish: US32D
Fasteners: Eight (8) 3.5 mm x 25 mm FPHSMS Notes: 57 mm maximum door thickness
FLUSH BOLTS & STRIKES
280E
Dust Proof Strike
Barrel Diameter: 19 mm Barrel/Plunger Diameter: 13.5 mm Depth: 36.5 mm Material: Stainless steel Finish: US32D
281E
Cast Flush Bolt
Length: 203 mm Width: 19.5 mm Depth: 38 mm Bolt Throw: 16 mm Material: Stainless steel Finish: US32D Fasteners: One (1) strike
Two (2) #7 x 25 mm wood screws Two (2) #7 x 25 mm wood screws
282E
Stamped Flush Bolt
Length: 304 mm Width: 25 mm Depth: 26.5 mm Bolt Throw: 20 mm Material: Stainless steel Finish: US32D Fasteners: One (1) strike
Two (2) #7 x 19 mm wood screws Two (2) M4 x 12 mm machine screws
300mm
203mm
1420
Manual Flush Bolt
Length: 200 mm Width: 20.3 mm Depth: 16.5 mm Bolt Diameter: 9.9 mm Bolt Throw: 15.8 mm Material: Stainless steel Finish: US32D
Strike Fasteners: Two (2) 3.5 mm x 19 mm FPHWS Flush Bolt Fasteners: Two (2) 3.5 mm x 25 mm FPHWS
MISCELLANEOUS
299D
Concealed Door Chain
Materials: Strike - Stainless steel Latch body - Plastic
Latch faceplate - Stainless steel
Door Thickness: 35 mm - 55 mm
Finish: US32D
Fasteners: Five (5) 3.5 mm x 25 mm FPHWS
1757
Door Viewer
Viewing Range: 145 Degrees Material: Brass Finish: US26D
Notes: • PVC lens, with back cover
• For doors 35 mm - 55 mm thick, adjustable
• Requires 16 mm hole
298E
Door Selector
Material: Stainless steel Finish: US32D Length: 308 mm
Fasteners: Four (4) #10 x 35 mm wood screws
Four (4) M5 x 35 mm machine screws
6630
Double Coat Hook - Angled
Height: 72 mm Upper Projection: 75.5 mm Lower Projection: 30 mm Material: Stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
6640
Double Coat Hook - Straight
Height: 78 mm Upper Projection: 72 mm Lower Projection: 25 mm Material: Stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
SIGNAGE
371F Female
Size: 75 mm diameter
Material: 1.6 mm thick 304 stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
371H Handicap
Size: 75 mm diameter
Material: 1.6 mm thick 304 stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
371M Male
Size: 75 mm diameter
Material: 1.6 mm thick 304 stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
371S No Smoking
Size: 75 mm diameter
Material: 1.6 mm thick 304 stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
371U Unisex
Size: 75 mm
Material: 1.6 mm thick 304 stainless steel
Finish: US32D
Fasteners: Two (2) 4 mm x 25 mm FPHWS
Push/Pull Plates
90E Push Plate
Warranty: 3 Year Width: 100 mm Length: 300 mm Thickness: 1.5 mm Material: Stainless Steel
Finish: US32D
Fasteners: Four (4) #7 x 19 mm wood screws
95E
Pull Plate
Warranty: 3 Year Width: 100 mm Length: 300 mm Thickness: 1.5 mm Lever Projection: 60 mm Lever Diameter: 19 mm Material: Stainless Steel
Finish: US32D
Fasteners: Four (4) #7 x 19 mm wood screws
NOTES
NOTES
