DATASHEET

WALL READER ON-LINE by SALTO

SALTO offers a wide range of wall readers that, in combination with SALTO Door Controllers enable the expansion of SALTO access control benefits to all those doors where a stand-alone electronic lock cannot be fitted, i.e. barriers, lifts, sliding doors or electronic gates, where control must be boosted by online real-time access control.

www.saltosystems.com

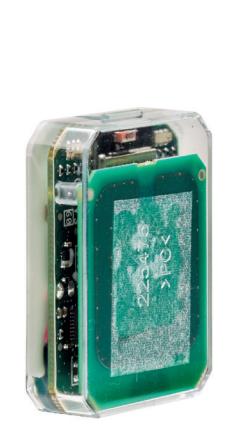

TECHNICAL SPECIFICATIONS: PANEL READER

TECHNICAL DATA:

Housing dimensions (H x W x D):	41 x 30 x 10 mm
Weight:	49 g
Cover material:	Polycarbonate
IP class:	IP66
Certifications:	CE, FCC/IC, RCM, MIC, UL294

ELECTRONIC FEATURES:

Power:	12V supplied by the door controller.
Connection to the door controller:	AWG24 twisted pair or AWG18 cable connection.
Firmware update:	Via ProAccess SPACE software.
LED lamps:	Multi colour led to indicate access authorisation.

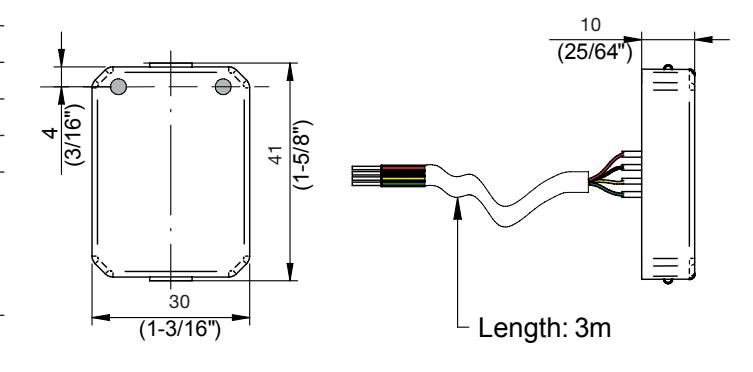

TECHNICAL DRAWING:

ID TECHNOLOGIES:

MIFARE:*	•
BLE Smart:	•
NFC:	•
Legic:**	—
HID iCLASS®:	•
Picopass:	—
i-Button:	—

^* MIFARE® (DESFire EV1, Plus, Ultralight C, FlexSpace, Classic - ISO/IEC 14443).

ELECTRICAL CHARACTERISTICS:

Operations conditions:

	Min	Max	Unit
Temperature:	-30	70	ºC
Humidity:	35	85	%

Power consumption:

	Min	Max	Unit
Reader		150	mA

Operating voltage:

	Min	Max	Unit
Reader	6 6	16	V

RF characteristics:

	Min	Cen	Unit
RFID frequency:		13,56	MHz
BLE frequency:	2,4	2,445	GHz

TECHNOLOGY PLATFORMS:

SALTO SPACE:

Smile - Selfprogrammable	—
ROM:	—
SVN data-on-card:	•
SALTO RFnet:	—
SALTO BLUEnet:	—

SALTO KS:

SALTO KS: •

SALTO SALLIS:

SALLIS: —

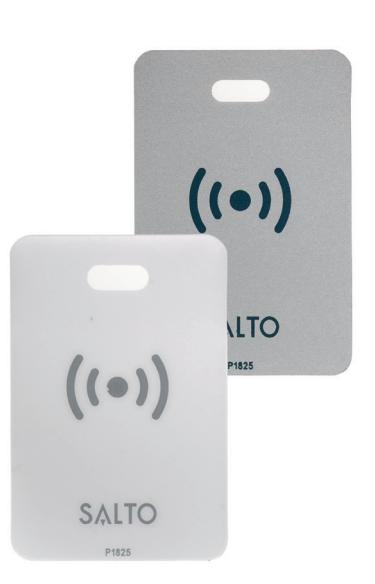

COVER STICKER FINISHES:

Silver: • White: •

Cable type and distances:

	Reader
UTP Cat5e 2 pairs AWG24	100m
UTP Cat5e 4 pairs AWG24 + SP224861/SP224895	320m
Twisted pairs AWG18	475m

^** Legic Prime and Legic Advant
