HS37 Fire Shield Mounting Supplemental Instructions – I-LS02187

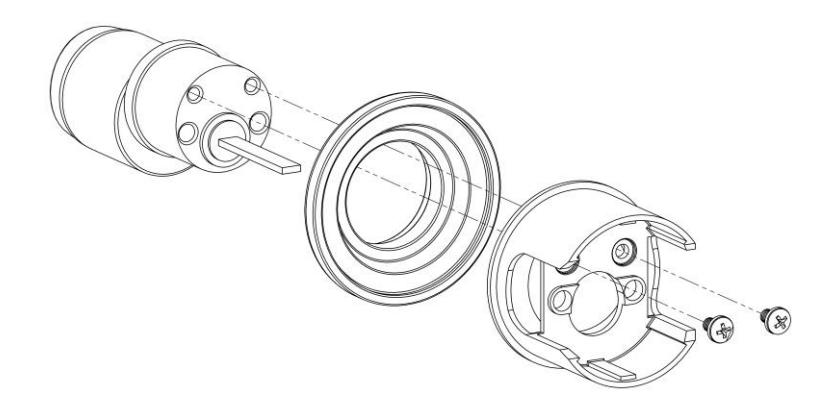

ASSEMBLE THE FIRE SHIELD ONTO THE GEO CYLINDER THROUGH THE CYLINDER COLLAR AND SCALP

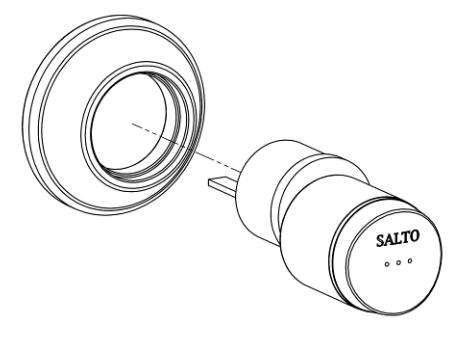

STEP 1: Insert the SALTO GEO cylinder into the Cylinder Collar

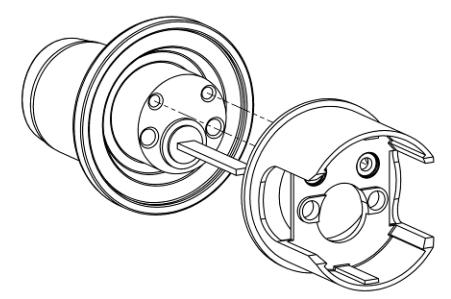

STEP 2: Put the Fire Shield onto the back of the GEO Cylinder, lining up the mounting holes

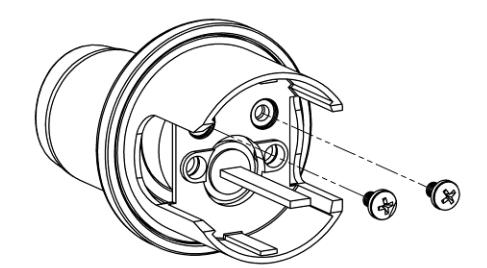

STEP 3: Install the two #8-32 x ¼" mounting screws from the screw pack into the top 2 mounting holes in the cylinder through the fire shield.
