HP Bored Lock Parts Manual
Open the original PDF document

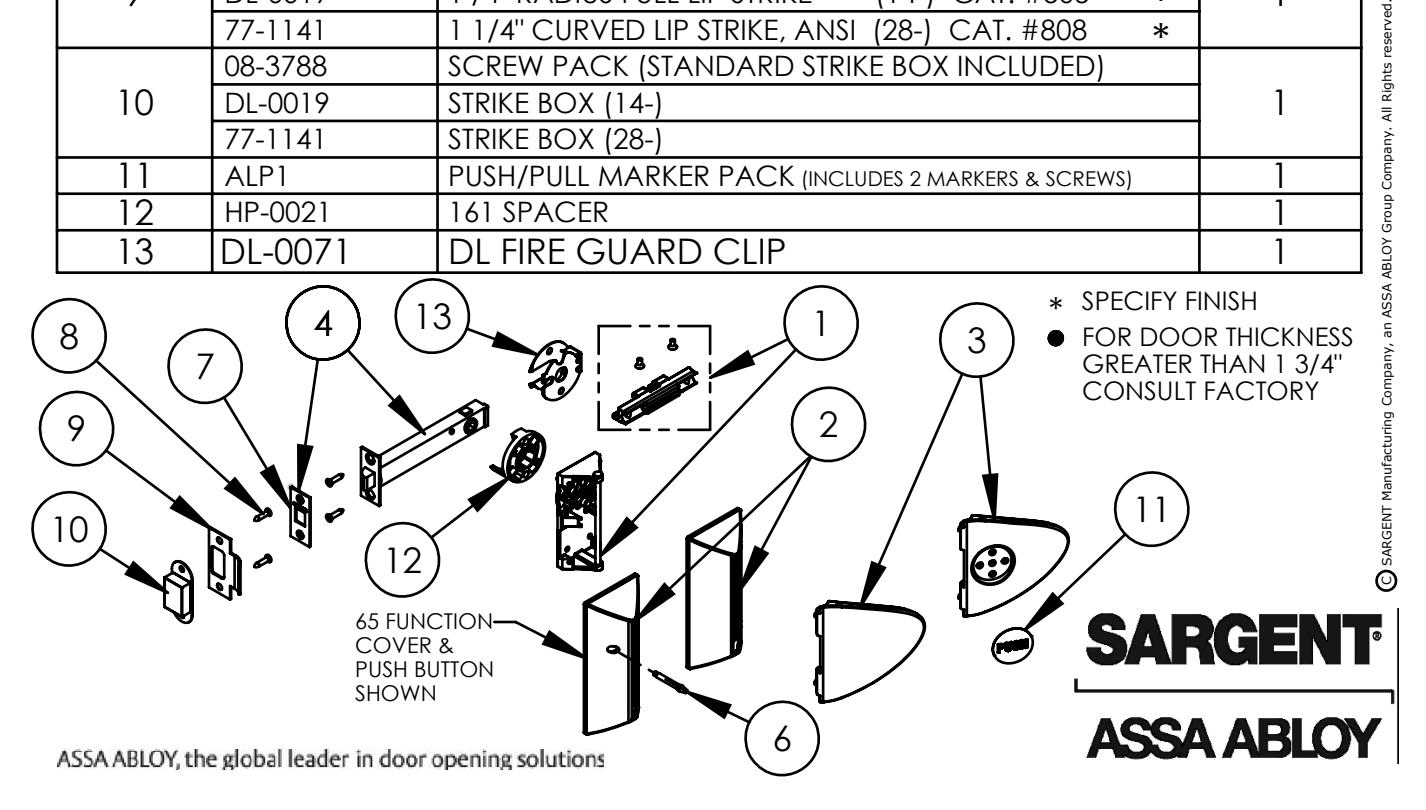

View PDFPAGE REV. HP.ALP1 B
15 FUNC 65 FUNC
| ITEM No. | PART No. | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | HP-2001 | 12-HP-ALP CHASSIS PACK | 1 |
| 2 | 78-0472 | COVER (NON HANDED) 15 FUNCTION * | |
| HP-0008 | COVER (INSIDE LH / LHRB) 65 FUNCTION * | 1 | |
| HP-0009 | COVER (INSIDE RH / RHRB) 65 FUNCTION * | 1 | |
| HP-0010 | COVER (OUTSIDE RH / RHRB) 65 FUNCTION * | 7 | |
| HP-0011 | COVER (OUTSIDE LH / LHRB) 65 FUNCTION * | ||
| 3 | 78-0478 | PADDLE * | 1 |
| 78-0504 | PADDLE (MARKER RELIEF) * | 1 | |
| 4 | HP-2009 | LATCH ASSEMBLY 2 3/4" (15 FUNCTION) * | |
| HP-2004 | 2 3/4" (65 FUNCTION) * | 7 | |
| HP-2005 | 5" (15 FUNCTION) * | ٦ , | |
| HP-2006 | 5" (65 FUNCTION) * | - | | | |
| HP-2007 | 7" (15 FUNCTION) * | 7 | |
| HP-2008 | 7" (65 FUNCTION) * | 7 | |
| 5 | 82-4846 | ALP TRIM MOUNTING HARDWARE PACK (STD) *• | |
| 82-4847 | ALP TRIM MOUNTING HARDWARE PACK (SECURITY TORX) * | 1 | |
| 82-4748 | ALP TRIM MOUNTING HARDWARE PACK (SPANNER) *• | ||
| 6 | HP-0007 | PRIVACY PIN (1 3/8" DOOR) *• | |
| HP-0012 | (2" DOOR) *• | 5 ] 1 | |
| HP-0013 | (2 1/4" DOOR) *• | • | |
| 7 | DL-0116 | FACE PLATE * | 1 |
| 8 | 08-3788 | SCREW PACK (STANDARD) * | 1 |
| 08-2853 | SCREW PACK (808 STRIKE) * | 1 | |
| 9 | 08-0312 | 2 3/4" CURVED LIP STRIKE (STANDARD) * | |
| DL-0019 | 1 /4" RADIUS FULL LIP STRIKE (14-) CAT. #505 * | 1 1 | |
| 77-1141 | 1 1/4" CURVED LIP STRIKE, ANSI (28-) CAT. #808 * | ||
| 10 | 08-3788 | SCREW PACK (STANDARD STRIKE BOX INCLUDED) | 1 |
| DL-0019 | STRIKE BOX (14-) | ||
| 77-1141 | STRIKE BOX (28-) | ||
| 11 | ALP1 | PUSH/PULL MARKER PACK (INCLUDES 2 MARKERS & SCREWS) | 1 |
| 12 | HP-0021 | 161 SPACER | 1 |
| 13 | DI-0071 | DL FIRE GUARD CLIP | 1 |
