A UNIQUE USER EXPERIENCE
HID Mobile Access® solution offers a patented gesture technology that allows door and gate access from a twist of the handset upon approach to an iCLASS SE® or multiCLASS SE® mobile-enabled reader.
iCLASS SE® AND multiCLASS® SE MOBILE-ENABLED READERS FEATURES:
- Adjustable read settings control overall power and read range of Mobile IDs, enabling flexibility for both close proximity "tap" and long range "Twist and Go" distances.
- Read settings administered using mobile phone during installation.
- Directional antenna enables long range reading distances of up to 6.6' in correct orientation – in front of the reader and not behind it.
MOBILE ENABLED ICLASS SE PLATFORM READERS THAT OFFER NEW WAYS TO OPEN DOORS
- Innovative Enables secure access with a mobile device by leveraging standard communications technologies that work with both iOS® and Android™ operating systems.

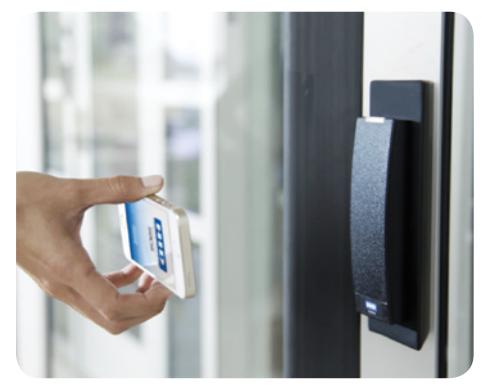

- Convenient Enhances the transactional experience by opening doors with a tap or "Twist and Go" gesture, merging security with convenience.
- Dynamic Supports new Mobile IDs and existing card populations for seamless migration to a more secure standard.
iCLASS SE® and multiCLASS SE® mobileenabled readers are part of the HID Mobile Access® solution that offers a consistent user experience across different devices and operating systems, including iOS and Android. The readers can be configured to activate with a tap of a smartphone, or with HID Global's patented "Twist and Go" gesture technology.
Ideal for new and existing installations, the interoperable iCLASS SE and multiCLASS SE readers support a variety of industry standard technologies, including iCLASS Seos®, standard iCLASS®, iCLASS SE, MIFARE®, MIFARE DESFire® and HID Prox. Simultaneous support of mobile device and existing card populations facilitates mixed population use and migration to a more secure standard.
Advanced multi-layered security is provided via the iCLASS SE platform with its Secure Identity Object® (SIO®) data model. This additional layer of security ensures tamper-resistant protection of keys and cryptographic operations. The incorporation of Seos® technology to manage identity data results in a dynamic and highly secure mobile solution.
Available through Platinum and Gold HID Advantage Partners in the United States, Canada, Europe, the Middle East and Africa.
SPECIFICATIONS
| Model Name | R10 | R15 | R30 | R40 | RK40 | |
|---|---|---|---|---|---|---|
| Base Part Number | 900NM | 910NM | 930NM | 920NM | 921NM | |
| Typical Read Range* |
Both "Twist and Go" and "Tap" ranges are characteristic of default configuration settings in typical lab environment. Reading ranges
and behavior will vary greatly in live installation environments that will have varying environments. Reader specific read range and power settings will contribute to adjusting behavior. |
|||||
|
Mobile IDs using
Bluetooth & Seos® |
Twist
and Go |
6.6 ft (2m) | 6.6 ft (2m) | 6.6 ft (2m) | 6.6 ft (2m) | 6.6 ft (2m) |
| Tap | 5.9" (15 cm) | 5.9" (15 cm) | 5.9" (15 cm) | 5.9" (15 cm) | 5.9" (15 cm) | |
| Mounting |
Mini-Mullion Size; mount
on door mullion or any flat surface |
Mullion Size; mount on
door mullion or any flat surface |
EU / APAC Square Size;
designed to mount to and cover standard European and Asian back boxes |
Wall Switch Size;
designed to mount to and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing |
Wall Switch Size;
designed to mount to and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing |
|
| Color | Black or Gray | |||||
| Keypad | No | No | No | No | Yes (4x3) | |
| Dimensions |
1.9" x 4.1" x 0.9"
4.8 cm x 10.3 cm x 2.3 cm |
1.9" x 6.0" x 0.9"
4.8 cm x 15.3 cm x 2.3 cm |
3.3" x 3.3" x 0.9"
8 4 cm x 8.4 cm x 2.3 cm |
3.3" x 4.8" x 1.0"
8.4 cm x 12.2 cm x 2.4 cm |
3.3" x 4.8" x 1.1"
8.5 cm x 12.2 cm x 2.8 cm |
|
|
Operating Voltage
Range |
5-16 VDC, Linear supply recommended | |||||
| Operating Temperature | -13º to 150º F (-25º to 65º C) | |||||
| Storage Temperature | -67º to 185º F (-55º to 85º C) | |||||
| Operating Humidity | 5% to 95% relative humidity non-condensing | |||||
| Transmit Frequency | 2.4GHZ, 13.56 MHz | |||||
|
2.4 GHz Credential
Compatibility* |
Secure Identity Object (SIO) on Mobile IDs (Bluetooth Smart) | |||||
|
13.56 MHz Credential
Compatibility |
Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE, MIFARE DESFire EV1 SE and MIFARE Classic SE
standard iCLASS Access Control Application (standard iCLASS cards) ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN Custom sectors on MIFARE, Custom app/file on DESFire EV1 (custom programming feature) Secure Identity Object (SIO) on NFC-enabled devices using Host-Based Card Emulation |
|||||
| Cable Distance |
Optional OSDP with SCP over RS485 (4000 ft)
Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) Use Shielded cable for best results |
|||||
| Reader Personalization |
Mobile-Enabled readers come fully personalized to read customer/site-specific Mobile IDs.
Mobile-Ready readers come fully prepared to read Mobile IDs but lack customer/site-specific personalization. Install Mobile-Ready readers as you prepare for Mobile IDs in the future. |
|||||
| Panel Connection | Pigtail or Terminal Strip | |||||
| Certifications | Bluetooth SIG certification, UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RoHS | |||||
|
Cryto Processor
Hardware Common Criteria Rating |
EAL5+ | |||||
| US7124943, US6058481, US6337619 | ||||||
| Patents | UL94 Polycarbonate | |||||
| Housing Material | ||||||
|
Manufactured with %
of recycled content (Pigtail) |
10.5% | 11.0% | 11.0% | 10.5% | 10.9% | |
|
Manufactured with %
of recycled content (Terminal Strip) |
11.0% | 11.5% | 10.5% | 11.0% | 12.4% | |
| UL Ref Number | R10E | R15E | R30E | R40E | RK40E | |
Available through Platinum and Gold HID Advantage Partners in the United States, Canada, Europe, the Middle East and Africa.
