TECHNOLOGY HIGHLIGHTS:

• NFC, 13.56 MHz
• Standards: ISO 10373, ISO 7816-1, ISO 14443A – NFC Tag Type 4
• Globally recognized card format
• Surface printable
• Preprogrammed to your specifications by HID

OPTIMIZED FOR SECURE CLOUD-BASED AUTHENTICATION OF UNIQUE, NON-REPLICABLE INTERACTIONS

• Secure Encrypted data changes on every tap, blocking attempts to share, clone or manipulate card activity
• Familiar format Immediately recognized and accepted by users
• Frictionless operation Simply tap to interact, no app to create or download
• Streamlined deployment No proprietary software or special readers required for card authentication

HID Global optimizes security, utility, and ease-of-implementation for NFC programs by combining recognized ISO-format cards with HID Trusted Tag® Services, the cloudbased authentication platform adding trust to NFC applications.

With HID Trusted Tag Services, each simple tap of a pre-programmed Trusted Tag ISO Card on a smartphone or other NFC device generates a secure, efficient transaction. The standards-based cryptographic code changes with every use, enabling each tap to be individually authenticated.

Every time a user taps their card, a unique code is transmitted to the HID Trusted Tag Services authentication cloud for verification. Once verified – or not – the web-based application generates an appropriate response to each card tap, while compiling results in real-time. Each interaction is distinct and non-replicable.

Achieve frictionless on-line authentication for your ISO card based application (e.g. as ID-badge verified by any NFC phone). HID Trusted Tag Services is an ideal choice for "proof of presence", time-and-attendance, brand protection and other Internet of Things applications using NFC-enabled smartphones today, and Bluetooth smart devices in the future.

HID can create a custom ISO card to fit your application requirements for chip type, programming and materials. You can even embed multiple technologies in a single card, providing transition paths that connect NFC applications with legacy systems that use LF, HF or UHF.

Also available from HID are various other hard-tag form factors, tamper evident seal tags and wet inlays optimized for use with HID Trusted Tag Services, or HID can customize a format to fit your application requirements.

APPLICATION AREAS:

• ■ Medical and health
• Alternate site care time and attendance

• ■ Marketing
  • Loyalty programs
  • Promotions
  • Stored-value

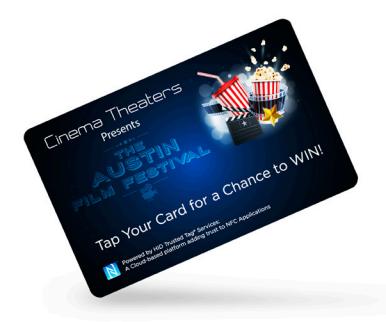

Imprint or engrave your brand or promotional message on card surfaces.

SPECIFICATIONS

	HID Trusted Tag® ISO Card
Base Model Number	6D6401-101
ELECTRONIC
Operating Frequency	13.56 MHz
Chip Type	HID Trusted Tag
Memory	8 KB
Anti-Collision	N/A
Reading Distance	Proximity NFC tap
PHYSICAL
Dimensions	3.4 × 2.1 × 0.03 in (85.6 × 54 × 0.76 mm)
Housing Material	PVC
Color	White
CHEMICAL AND MECHANICAL
Water	IP68, 68° F (20° C), 3.3 ft (1 m) x 24 h
Withstands Exposure To	Acetic acid, artificial perspiration, carbonated water, ethylene glycol, fuel B, humidity (95% at 50° C × 24h), salt mist, salt water, sugared water
Environmental Test Conditions	68° F (20° C), 100 h
Vibration	IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
Shock	IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
Bending	Dynamic bending and torsion, 4 × 250
THERMAL
Storage	-31° to +122° F (-35° to +50° C), 1000 h
Operating	-31° to +122° F (-35° to +50° C)
Shock/Fatigue	-31° to +176° F (-35° to +80° C), 1000 h
Peak	176° F (80° C), 1 × 24 h
OTHER
Standards	ISO 10373, ISO 7816-1, ISO 14443A - NFC Tag Type 4
Options	Alternative technologies, e.g. NTAG 424 DNA, MIFARE, MIFARE DESFire, LF, UHF or multi-frequency; Surface printing; laser engraving; encoding
Box Size	2,000 pcs
Warranty	1 Years
