Features:

• Offers universal compatibility with all HID proximity readers.
• Offers a one-card solution for companies desiring to incorporate a combination of proximity, Wiegand, bar code, magnetic stripe and photo ID technologies for multiple facilities.
• Ideal for companies transitioning from a Wiegand technology system to an HID proximity-based system.
• Card thickness is suitable for use with all Wiegand readers and most direct image printers and magnetic stripe readers.

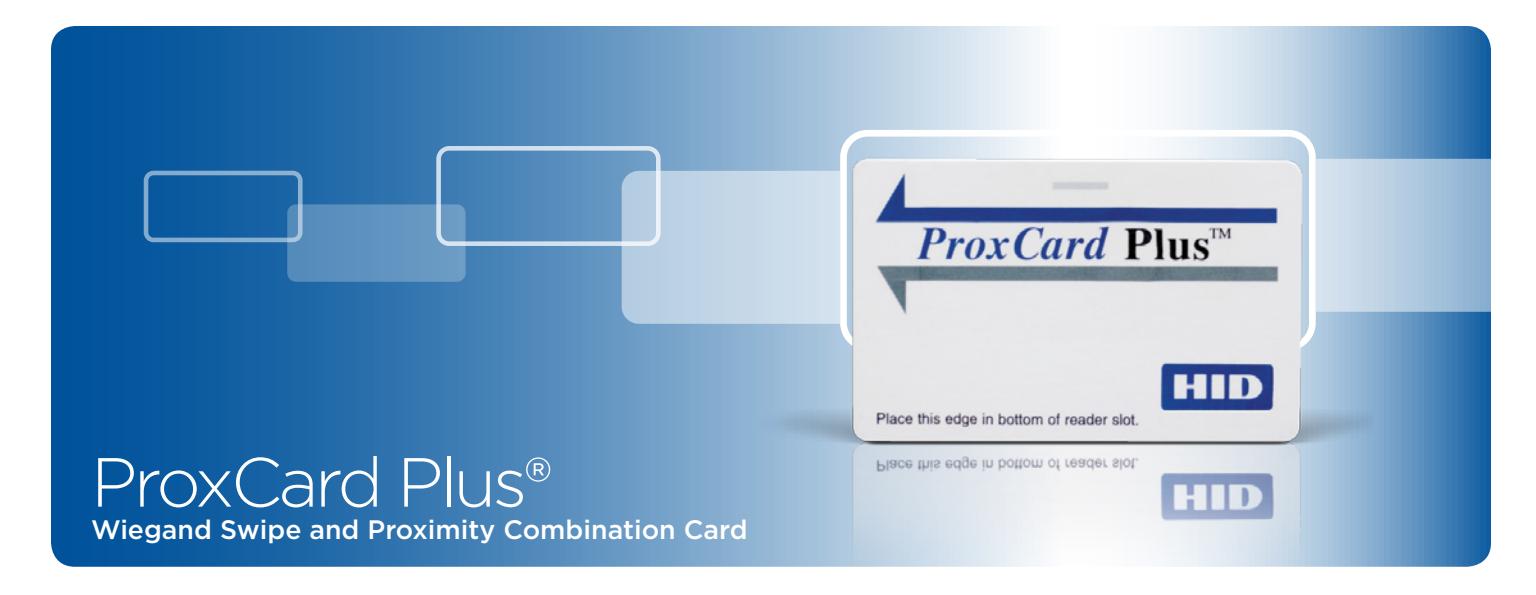

THE PROXCARD PLUS® COMBINATION CARD OFFERS PROXIMITY AND WIEGAND TECHNOLOGIES WITH OPTIONAL PHOTO ID CAPABILITY ON A SINGLE ACCESS CONTROL CARD.

• Proven, Reliable Technology Offers extremely consistent read range. Unaffected by body shielding or variable environmental conditions, even when close to keys and coins.
• Thin Can be carried with credit cards in a wallet or purse.
• Cross-reference A cross-reference list correlating the external card number and the programmed ID number is provided for easy system administration. External numbering matching the encoded numbers is available.
• Security The Wiegand code strip offers over one trillion unique codes. The proximity transponder is programmed to match the Wiegand strip.
• Long Life Passive, no-battery design allows for an infinite number of reads.
• Durability Strong, flexible and resistant to cracking and breaking.
• Custom Artwork Custom multicolor graphics and text are available.

Note: custom graphics may increase overall card thickness.

125 kHz, plain white finish (front), HID artwork (back), customerspecified ID numbers, location marked for slot punch.

SPECIFICATIONS

ProxCard Plus®

Part Number	16-9
Typical Maximum* Read Range	ProxPoint® Plus reader-up to 1.0" (2.5 cm) MiniProx™ reader-up to 2.0" (5.1 cm) ThinLine® II reader-up to 1.5" (3.8 cm) ProxPro® reader-up to 3.0" (7.6 cm) ProxPro® II reader-up to 4.0" (10.2 cm) Prox80™ reader-up to 1.5" (3.8 cm) MaxiProx® reader-up to 13.0" (33.0 cm) EntryProx™ reader-up to 1.0" (2.5 cm) pcProx™ reader-up to 1.0" (2.5 cm) *Dependent on local installation conditions.

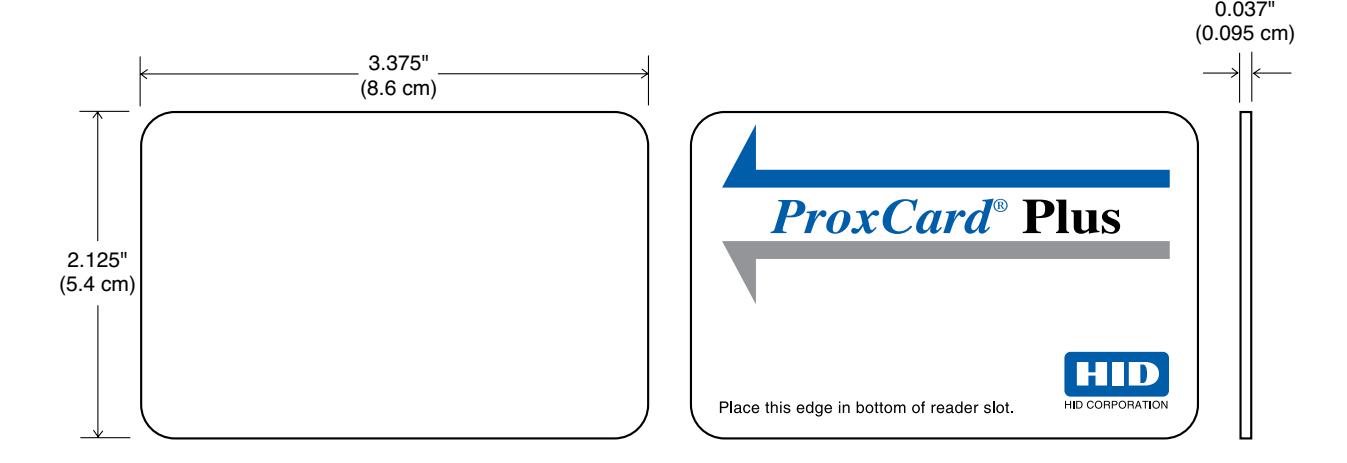

Dimensions	2.125" x 3.375" x 0.037" max. (5.4 x 8.6 x 0.095 cm)
Card Construction	Thin, vinyl laminate with an internal Wiegand code strip and proximity circuit. An external ABA standard, high coercivity magnetic stripe is optional.
Code strip layout options	A long edge / right side A1 long edge / left side
Operating Temperature	-50° to 160° F (-45° to 70° C)
Options	Card finish for direct printing (glossy or satin) Magnetic stripe External card numbering Slot punch (horizontal or vertical) Custom graphics
Weight	0.17 oz. (4.8 gm)
Warranty	Lifetime

NOTES:

^* Dependent on local installation conditions.
