Features:
- Offers universal compatibility with all HID proximity readers.
- Provides durable packaging and consistent read range.
- Provides an external number for easy identification and control.
- Supports formats up to 85 bits, with over 137 billion codes.
- Custom pre-printed artwork available.
- A PVC overlay allows for on-site photo ID using most direct image printers.
- Using HID's ProxProgrammer®, card vendors can ship ProxCard II proximity cards, custom programmed to their customers' requirements, from their own inventory. Enables smaller order quantities and overnight delivery. (Check with vendor for availablilty.)
THE RF-PROGRAMMABLE PROXCARD® II PROXIMITY ACCESS CARD IS THE INDUSTRY CHOICE FOR A COST-EFFECTIVE SOLUTION TO PROXIMITY ACCESS CONTROL.
- Proven, Reliable Technology Offers extremely consistent read range. Unaffected by body shielding or variable environmental conditions, even when close to keys and coins.
- Convenient To Use Can fit into a wallet or purse. Use with a strap and clip as a photo ID badge.
- Cross-reference A cross-reference list correlating the external card number and the programmed ID number is provided for easy system administration.
- Security Offers over 137 billion unique codes.
- Long Life Passive, no-battery design allows for an infinite number of reads.
- Durability Strong, flexible and resistant to cracking and breaking.
- Companion Products 1321 Photo pouch overlay 1324 PVC Direct print overlay

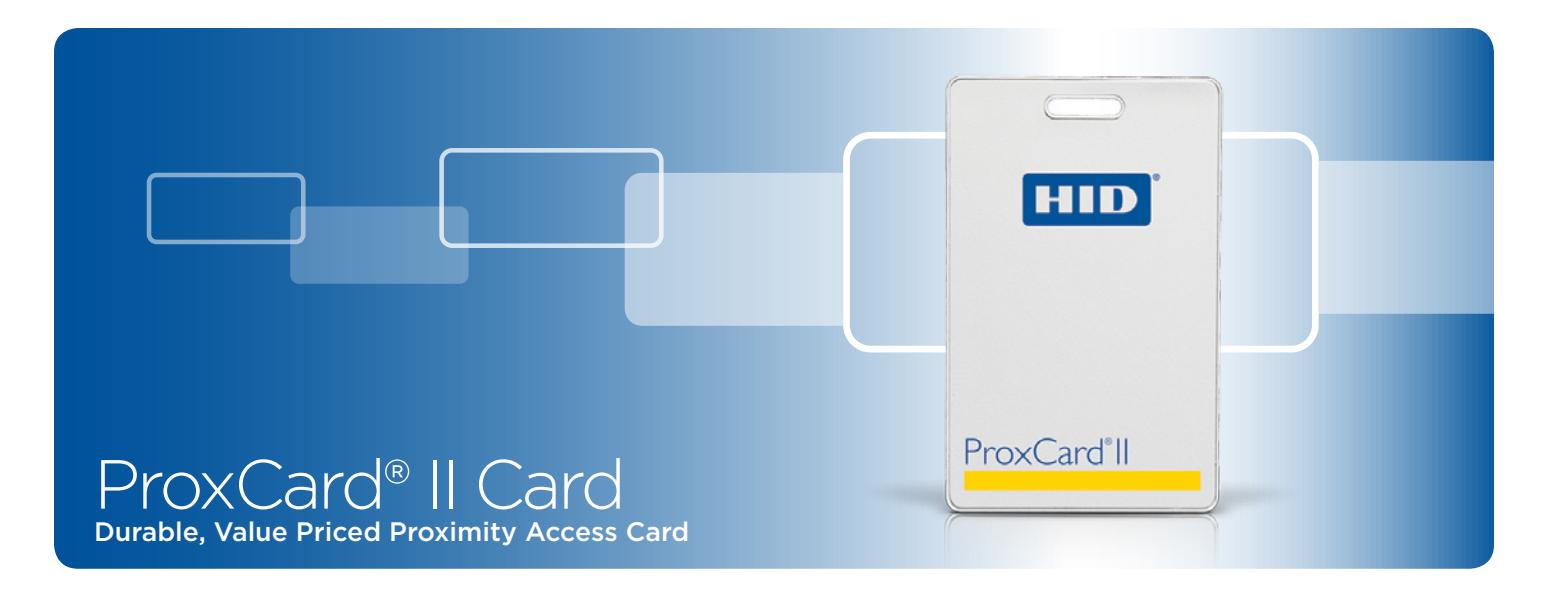

The RF-programmable ProxCard® II proximity access card is the industry choice for a cost-effective solution to proximity access control.
SPECIFICATIONS
ProxCard® II Card
| Base Part Number | 1326 |
|---|---|
|
Typical Maximum*
Read Range |
ProxPoint® Plus reader-up to 3" (7.5 cm)
MiniProx® reader-up to 5.5" (14 cm) ThinLine® II reader-up to 5.5" (14 cm) ProxPro® reader-up to 8" (20 cm) ProxPro® II reader-up to 9"(22.9 cm) Prox80™-up to 5.5" (14 cm) MaxiProx® reader-up to 24" (60 cm) |

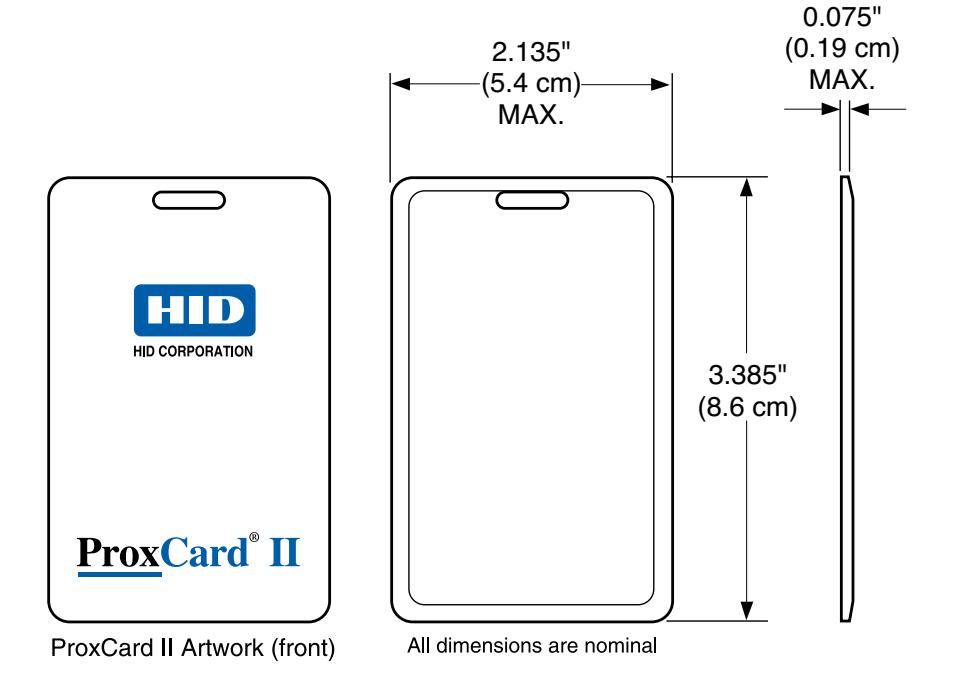

| Dimensions |
2.135" x 3.385" x 0.075" MAX.
(5.4 x 8.6 x 0.19 cm) |
|
Operating
Temperature |
-50° to 160° F (-45° to 70° C) |
| Options |
External card numbering
(inkjet only; no laser engraving) Custom artwork (text or graphics) |
| Weight | 0.24 oz. (6.8 gm) |
| Warranty | Lifetime |
NOTES:
* Dependent on local installation conditions.
