MULLION MOUNT PROXIMITY CARD READER
The MiniProx® proximity card reader's potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.
- Accepts 5 to 16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-Data interface.
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
- of new cable required.
- Offers high reliability, consistent read-range and low power consumption in an
- easy-to-install package.
- Mounts directly onto metal with no change in read range performance.
- Provides multicolor LED, compatibility with all standard access control systems
- and internal or host control of LED and beeper.
- Includes multilingual installation manual.
FEATURES
- Hazardous Location MiniProx® Reader Mounting Designed to mount onto a junction box included with each reader. The junction box is attached to an appropriate surface location utilizing four holes.
- Security Recognizes card formats up to 85 bits, with over 137 billion unique codes.
- Audiovisual Indication When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Diagnostics On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader
- operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Indoor/outdoor Design Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance.
- Easily Interfaced Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-and-Data (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Options LED and beeper operation and custom label. * Hazardous Location MiniProx® only available with terminal strip.

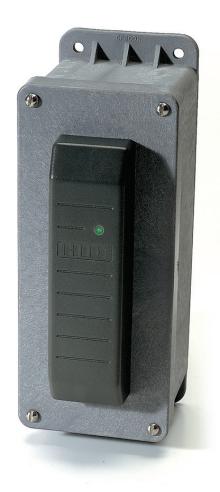

Hazardous Location MiniProx shown with incorporated junction box rated for use in hazardous locations.
SPECIFICATIONS
| *Model Name | MiniProx® |
|---|---|
| Model Number |
5365 Wiegand interface
5368 Clock-and-Data interface |
| **Read Range |
ProxCard® II card - up to 5.5" (14 cm)
ISOProx® II card - up to 5" (12.7 cm) DuoProx® II card – up to 5" (12.7 cm) Smart ISOProx®/DuoProx® cards – up to 5" (12.7 cm) Proximity & MIFARE® card - up to 5" (12.7 cm) ProxCard® Plus card - up to 2" (5.1 cm) ProxKey® II key fob - up to 2" (5.1 cm) MicroProx® Tag - up to 2.5" (6.4 cm) |
| Mounting | Unobtrusive design mounts directly onto metal including door mullions |
| Color |
• CLASSIC series cover in gray, beige, black or white (or)
• Designer series cover in grey, wave blue, black or white |
| Keypad | No |
| Dimensions |
6.0" x 1.7" x 1.0"
(15.2 x 4.3 x 2.54 cm) |
| Power Supply |
Standard MiniProx: 5-16 VDC
Haz. Loc. MiniProx: 5-16 VDC Linear power supplies are recommended |
|
Power Requirements
(Standard Power) |
Current (DC)
Average 30 mA, Peak 75 mA |
| Operating Temperature | -22° to 150° F (-30° to 65° C) |
| Operating Humidity | 0-95% relative humidity noncondensing |
| Transmit Frequency | 125 kHz |
| Environmental | IP55 |
| Cable Distance |
Wiegand interface: 500 feet (150 m)
Clock-and-Data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. |
| Termination | Pigtail or Terminal strip |
| Certifications |
UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick
(Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS Hazardous location - UL Class 1, Div. 2, Gas groups A, B, C, and D (US, Canada) |
| Housing Material | UL94 Polycarbonate |
| Warranty | Lifetime |
** Dependent upon installation conditions
