SmartTRANS®

13.56 MHz MIFARE® and DESFire® Contactless Cards and Readers

HID Global introduces its new 13.56 MHz ISO 14443 (MIFARE/ DESFire) contactless smart card readers. In response to customer demand for a greater multitude of smart card reader solutions, HID Global has increased its product line of multipletechnology products. SmartID® offers solutions in single technology 13.56 MHz (SmartID), multi-technology 13.56 MHz + 125 kHz (SmartTRANS®), multi-factor 13.56 MHz biometrics (SmartTOUCH™) and keypad authentication. This new, open architecture and highly customizable reader line augments HID's market-leading, flexible, open and highly secure iCLASS product line.

By producing the SmartID multi-technology line, HID Global asserts its commitment to support 13.56 MHz technologies. The company's offerings encompass the industry's broadest range of open standard contactless smart card products, available from over 40,000 resellers worldwide.

SmartTRANS® Readers

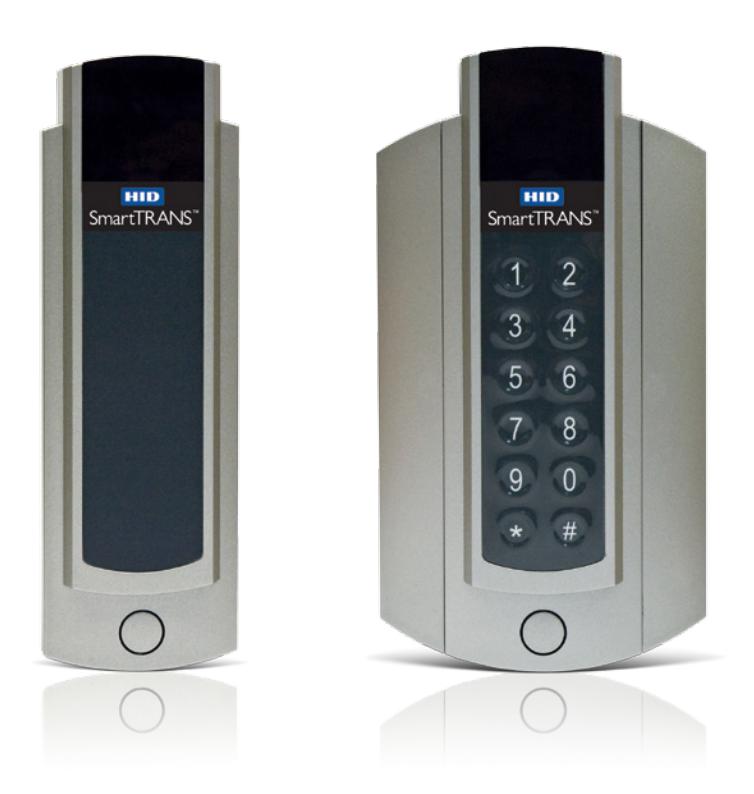

SmartTRANS® Mullion SP10 Reader

ISO 14443A Secure Reader

Base Part Number • 8100

• • Choose from a variety of reader applications, including HID MIFARE, custom MIFARE, custom DESFire and FIPS 201
• • Can be configured for almost any existing or new custom card population
• • Reads HID Prox (125 kHz) and AWID Cards
• • Outputs data over Wiegand, Clock-and-Data, RS232, RS485 or RS422 interface
• • Dimensions: 5.59˝ x 1.81˝ x 0.98˝ (14.2 x 4.6 x 2.5 cm)
• • Read Range: MIFARE Up to 1.5˝ (3.8 cm)* HID Prox/AWID - Up to 1.3˝ (3.2 cm)*
• • Additional accessory (p/n 8090AS) turns reader into single-gang electrical mount

FIPS 201 Approved. Call for details 800-872-5359

SmartTRANS® Mullion Keypad SPK10 Reader ISO 14443A Secure Reader

Base Part Number • 8101

• • Choose from a variety of reader applications, including HID MIFARE, custom MIFARE, custom DESFire and FIPS 201
• • Can be configured for almost any existing or new custom card population
• • Reads HID Prox (125 kHz) and AWID Cards
• • Keypad provides dual-factor authentication with a variety keypad output configurations
• • Dimensions: 5.59˝ x 1.81˝ x 0.98˝ (14.2 cm x 4.6 cm x 2.5 cm)
• • Read Range: MIFARE Up to 1.5˝ (3.8 cm)* HID Prox/AWID - Up to 1.3˝ (3.2 cm)*
• • Additional accessory (p/n 8090AS) turns reader into single-gang electrical mount

FIPS 201 Approved. Call for details 800-872-5359

^* Depends on installation environment and credential type

Did You Know?

SmartTRANS 13.56 MHz and 125 kHz compatibility allows you to solve any site's migration issue with a broad variety of reader and card migration strategies.

SmartTRANS™ Specifications SmartTRANS® Readers

	SmartTRANS® Mullion SP10	SmartTRANS® Mullion Keypad SPK10
Base Model Number	8100	8101
Dimensions	5.59˝ x 1.81˝ x 0.98˝ (14.0 cm x 4.5 cm x 2.5 cm)
Read Range	MIFARE: Up to 1.5˝ (3.8 cm); HID Prox/AWID: Up to 1.3˝ (3.2 cm)
Mounting	Mullion or Single-gang electrical box*
Power Supply	5-24 VDC (reverse current protected); Linear supply recommended
Current Requirements	79 mA / 96 mA (@12 VDC)
Termination	Terminal
Output Formats	Wiegand, Clock-and-Data, RS232, RS485, RS422
Tamper	Option
Indoor/ Outdoor	Both
Warranty	Lifetime

^* Single-gang mounting requires purchase of additional accessory

Multi-Technology Credentials

MIFARE®/Prox Combo Card

13.56 MHz Contactless Smart Card

Base Part Number • 1431

• • Combine MIFARE 1K and proximity technologies to add smart card applications, such as cashless vending, corporate and campus applications, event ticketing, customer loyalty and photo ID cards, to access control systems
• • Provides high security with mutual authentication, data encryption and unique 32-bit serial number and supports all HID proximity card formats, including Corporate 1000
• • Photo ID compatibility allows printing directly to the card with a direct image or thermal transfer printer
• • Cards can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing or a custom logo
• • Also Available in Composite Polyester / PVC and MIFARE 4K versions

DESFire®/Prox Combo Card

13.56 MHz Contactless Smart Card

Base Part Number • 1451

• • Proven, Reliable Technology Offers extremely consistent read range. Use is unaffected by body shielding or variable environmental conditions, even when close to keys and coins.
• • Fast Processing and Data Communication Transaction times are less than 100 milliseconds for a typical secure ticketing transaction.
• • True Credit Card Thickness Use with all direct image and thermal transfer printers.

MIFARE® / HID Prox Combo Card DESFire® / HID Prox Combo Card

Base Part	1431: PVC 1k Card	1451: PVC Card
Number	1441: PVC 4k Card	1457: Composite PET/PVC Card
	1437: Composite PET/PVC 1k Card
	1447: Composite PET/PVC 4k Card
Read Range: *
MIFARE	Up to 4.0˝ (10.0 cm)	N/A
DESFIRE	N/A	Up to 4.0˝ (10.0 cm)
HID Prox	Up to 4.5˝ (11.5 cm)
Indala Prox	N/A
Memory Size/ Application Areas	1k Byte (8k bits) or 4k Bytes (32k bits)	4k Bytes (32k bits)
HID Proximity 125 kHz	Yes
Contact Smart Chip Module Embeddable	Yes**
Wiegand Strip	No
Magnetic Stripe	Optional
Printable ***	Yes
Standard HID Artwork	Optional
Slot Punch	Vertical optional
Visual Security Options	Yes
Additional Security Options	Corp 1000
Warranty	Lifetime

^* Dependant upon installation conditions.

^** Contact smart chip module not included. Ask about HID's SMARTS Program for off-the-shelf contact smart chip embedded cards.

^*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
