Magstripe

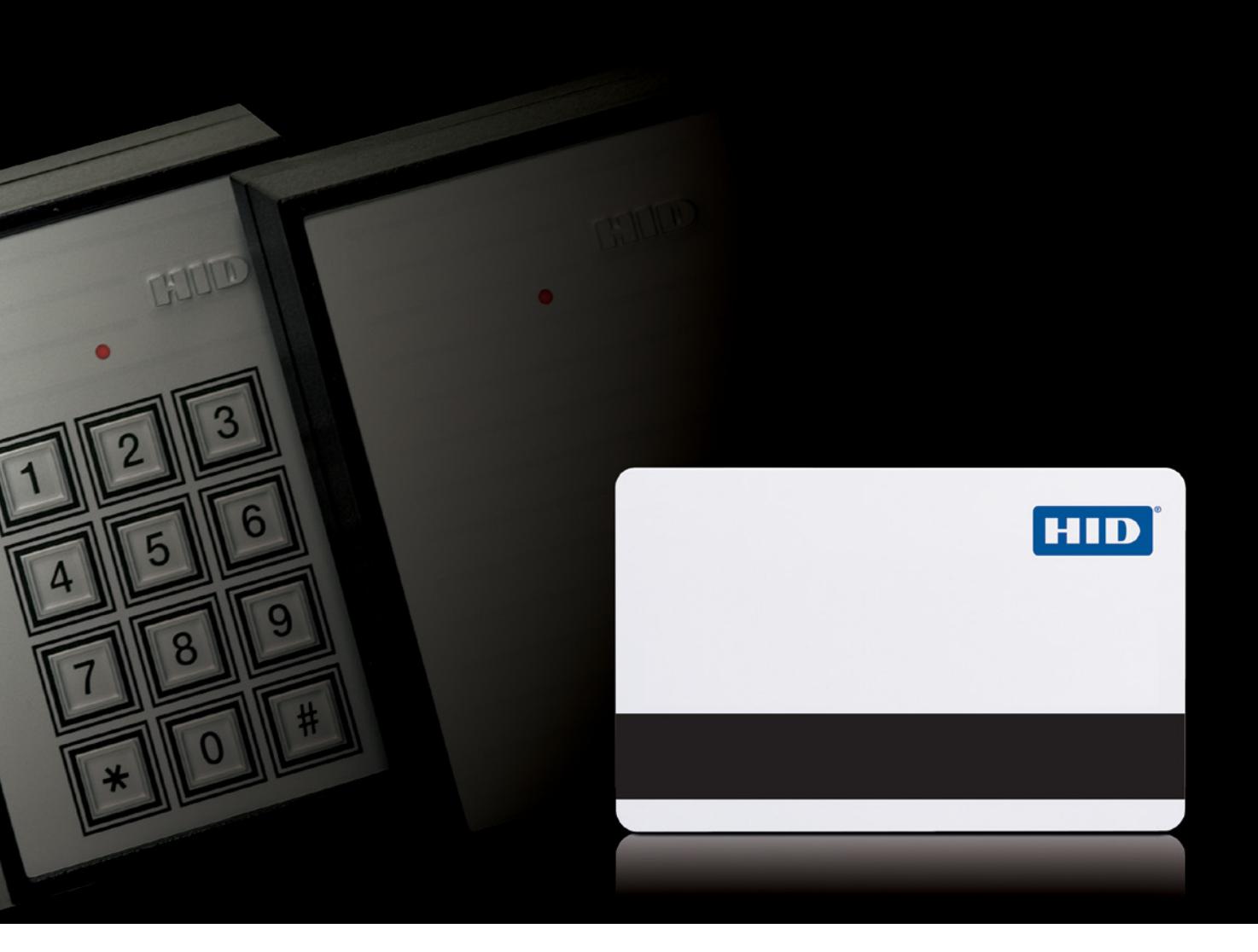

Classic magnetic stripe cards and readers

HID offers a wide range of magnetic strip readers fully equipped with both Clock-and-Data and Wiegand outputs. Combination readers read both magnetic stripe and proximity cards, providing a seamless technology migration path from magnetic stripe to proximity.

Magstripe Readers

Did You Know?

You can upgrade from magstripe technology to multi-technology card readers with DuoProx cards, and iCLASS cards with a magstripe feature.

Magnetic Stripe/Prox Reader 230

Base Part Number • 230

• • Combines proximity and magnetic stripe technologies in one reader
• • Compatible with EMPI and standard ABA / ANSI / ISO magnetic stripe cards
• • Compatible with HID and EMPI proximity formats
• • Perfect for transition from one technology to another
• • Dimensions: 4.56˝ x 3.0˝ x 1.14˝ (11.5 cm x 7.5 cm x 3.0 cm)
• Read Range: up to 5.0˝ (12.7 cm)*

Magnetic Stripe/Prox Reader with Keypad 240

Base Part Number • 240

• • Combines proximity and magnetic stripe technologies in one reader
• • Compatible with EMPI and standard ABA / ANSI / ISO magnetic stripe cards
• • Compatible with HID and EMPI proximity formats
• • Perfect for transition from one technology to another
• • Dimensions: 4.56˝ x 3.0˝ x 1.14˝ (11.5 cm x 7.5 cm x 3.0 cm)
• Read Range: up to 5.0˝ (12.7 cm)*

Rugged Keypad Reader Model 780

Base Part Number • 780

• • Rugged construction for difficult locations: airports, schools, outdoors
• • Reads security badges, time & attendance badges, parking cards, credit cards
• • Connects to access control systems with Wiegand or Clock-and-Data interface format
• • Optional card slot heater available

Rugged Reader Model 740

Base Part Number • 740

• • Rugged construction for difficult locations: airports, schools, outdoors
• • Reads security badges, time & attendance badges, parking cards, credit cards
• • Connects to access control systems with Wiegand or Clock-and-Data interface format
• • Optional card slot heater available

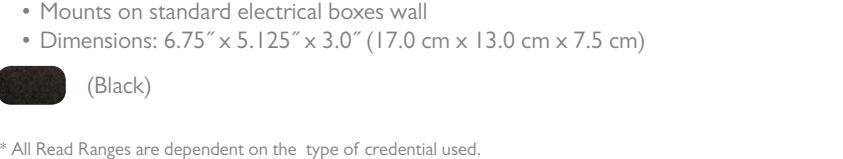

• • Mounts on standard electrical boxes wall
• • Dimensions: 6.75˝ x 5.125˝ x 3.0˝ (17.0 cm x 13.0 cm x 7.5 cm)

Magnetic Stripe Reader 544

Base Part Number • 544

• • Value Priced Magnetic Reader
• • Weatherproof design in an insertion-style reader with keypad for increased security
• • Connects to access control systems with Wiegand or Clock-and-Data interface format
• • Reads security badges, time and attendance badges, and parking cards
• • Mounts on standard electrical boxes
• • Dimensions: 4.56˝ x 3.0˝ x 1.14˝ (11.5 cm x 7.5 cm x 3.0 cm)

Magnetic Stripe Reader 584

Base Part Number • 584

• • Insertion-style reader with keypad for increased security
• • Connects to access control systems with Wiegand or Clock-and-Data interface format
• • Reads security badges, time and attendance badges, and parking cards
• • Read head assembly is adjustable to track location 1, 2, or 3
• • Mounts on standard electrical boxes
• • Dimensions: 4.56˝ x 3.0˝ x 1.14˝ (11.5 cm x 7.5 cm x 3.0 cm)

Magnetic Stripe Reader 644

Base Part Number • 644

• • Pass-through card reading for quickest use
• • Connects to access control systems with Wiegand or Clock-and-Data input
• • Reads security badges, time & attendance badges, parking cards, credit cards
• • Read head assembly field-adjustable to track location 1 or 2
• • Mounts on standard electrical boxes or directly on a door mullion
• • Dimensions: 6.0˝ x 1.75˝ x 1.49˝ (15.0 cm x 4.5 cm x 4.0 cm)

We're on the "A" list in Hollywood.

When it comes to security, reliability and flexibility, HID has always delivered a star performance. That's why more movie and TV studios all over Hollywood have given HID the lead role in secure identity and access control solutions. And if you look carefully at the sets and props in your favorite TV shows and movies, you'll see that HID has done a lot of performing in front of the camera as well.
