OMNIKEY®

Smart Card Reader

Base Models: 3121, 5127 CK, 3111, 5121, 5125

Weight Information:

Standard Standing Base: 1.09 oz ( 31 g) Heavy Standing Base with Middle Piece: 3.52 oz (100 g) Jumbo Standing Base with Middle Piece: 15.2 oz (431 g)

ASSEMBLY PROCEDURE

3121-914, Rev A.0 April 2012

© 2012 HID Global Corporation. All rights reserved.

Standard Vertical Mounting

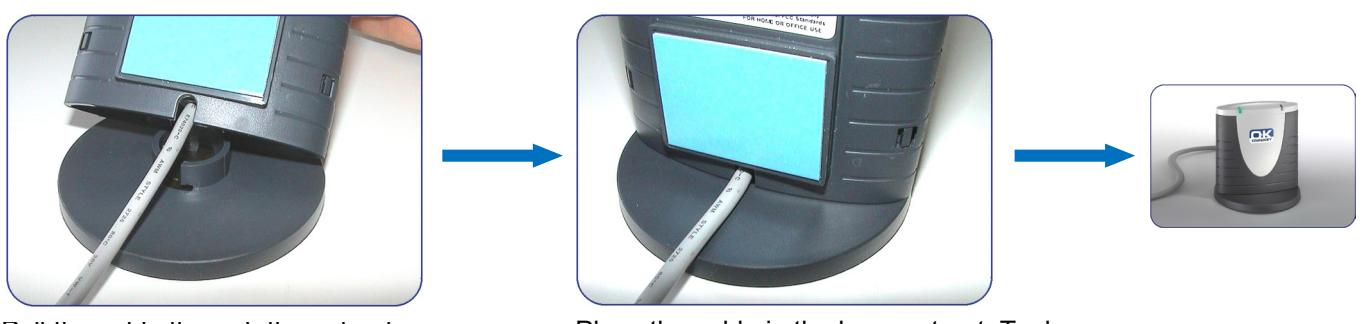

Pull the cable through the cut-out found in the reader back.

Place the cable in the base cut-out. Tuck the reader using the guide bars into the round opening and press until it snaps.

Standard Adhesion to a PC Monitor or Usage without Base

OR

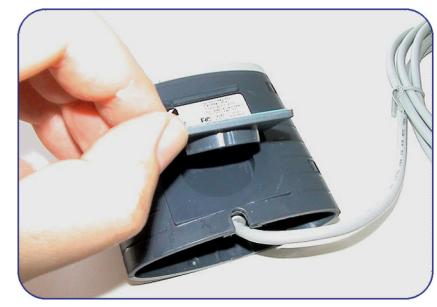

Lift off the pad (reader back) for use without the base.

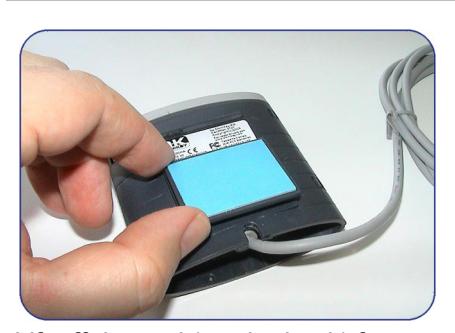

After removing the blue foil, attach the reader to a monitor, etc.

Horizontal Mounting

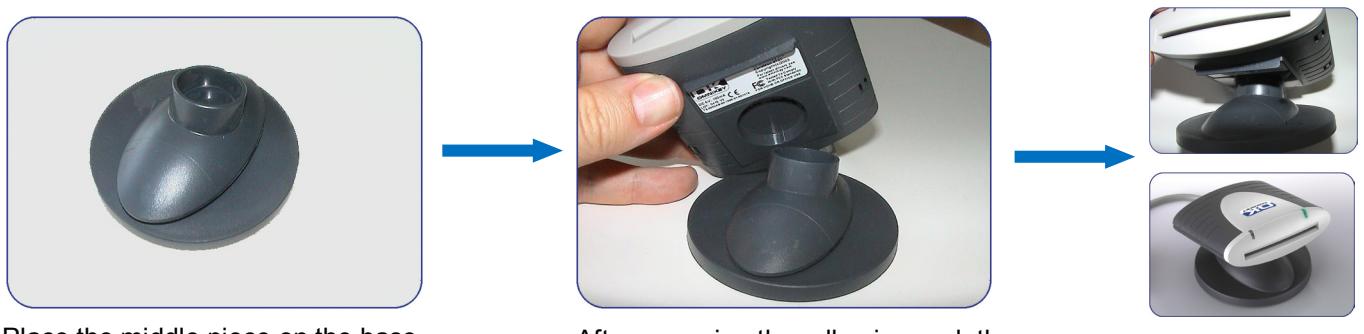

Place the middle piece on the base. The upper and base parts fit together when matching both cut-outs.

After removing the adhesion pad, the round opening has a counterpart on the base assembly. A small guidance bar at the back ensures stable assembly.
