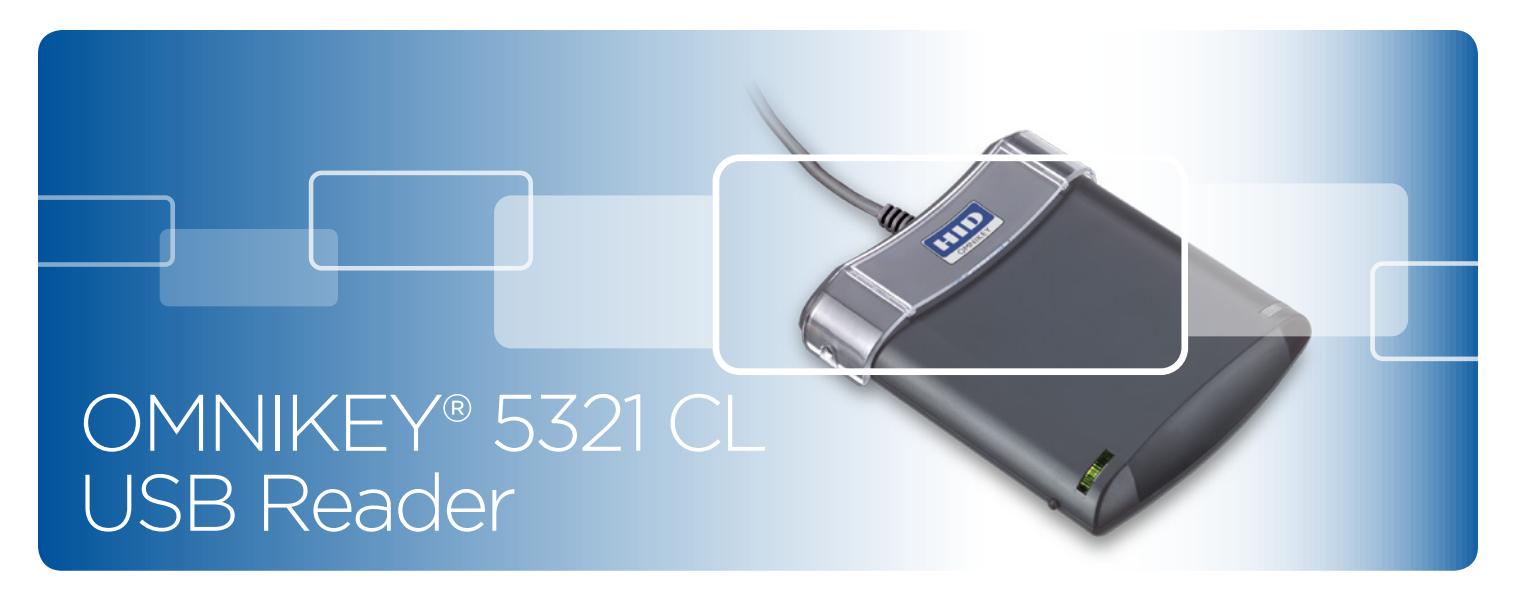

HID-OMNIKEY-5321-CL-USB-Reader-Data-Sheet
Open the original PDF document
View PDF
CONTACTLESS USB SMART CARD READER
- Versatile Applications Ideal for end-user environments with different contactless smart card technologies and tags in use
- Fast Contactless Transmission Supports contactless smart cards up to 848 Kbps in fastest ISO 14443 A/B
- Designed for User Convenience Housing design is optimized for advanced contactless applications
- Readily compliant Supports HID® iCLASS® and MIFARE® as well as ISO 14443A/B and ISO 15693

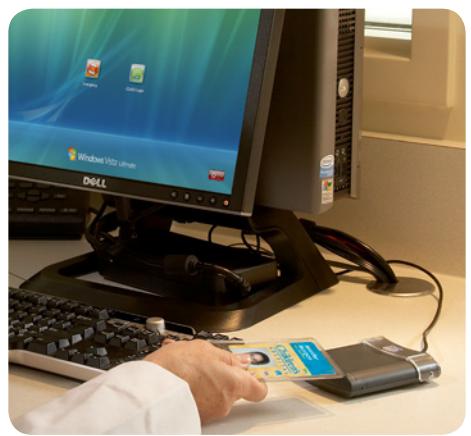

Housed in a robust closed housing with a convenient card retainer, the OMNIKEY® 5321 CL represents the ideal reader for contactless technology applications. Featuring a PC-linked reader that reads/ writes to 13.56 MHz contactless smart cards in all three HF standards, the OMNIKEY 5321 CL economically supports end-user environments where a variety of contactless cards and tags are used.
- Supports three ISO standards for contactless cards (ISO 14443 A/B and 15693) and Microsoft WHQL
- Reader supports contactless smart cards with up to 848 Kbps in the fastest ISO 14443 transmission mode
- Standard application interfaces include PC/SC, Synchronous-API (on top of PC/SC), OCF (Open Card Framework) or CT-API
For actual driver downloads please visit hidglobal.com/omnikey
CONTACTLESS TECHNOLOGIES SUPPORTED:
- HID: iCLASS®
- NXP: MIFARE®, DESFire®, SMART-MX and ICODE
- Texas Instruments: TagIT®
- ST Micro: x-ident, SR 176, SR 1X 4K
- Infineon: My-d (in secure mode UID only)
- Atmel: AT088RF020
- KSW MicroTech: KSW TempSens
- iCODE SLI, iCODE SL2 & LRI 64
- Contactless 2048 bit key generation in RSA mode (JCOP / SMART-MX)
SPECIFICATIONS
| Model Name | OMNIKEY® 5321 |
|---|---|
| Dimensions | 3.78" x 3.07" x .0.31" (115 x 96.5 x 25.5 mm) |
| Weight | Approx. 5.64 oz / 160 g |
| Power Supply | Bus powered |
| Operating Temperature | 32°-131° F (0° - 55° C) |
| Operating Humidity | 10-90% rH |
| HOST INTERFACE | |
| Host Interface | USB 2.0 (also compliant with USB 1.1) |
| Transmission Speed | 12 Mbps (USB 2.0 full speed) |
| CONTACTLESS SMART CARD INTERFACE | |
| Protocols |
T=CL, MIFARE®, iCLASS® /
ISO 14443 A with 848 Kbps transmission rate (depending on card) ISO 14443 B with 848 Kbps transmission rate (depending on card) ISO 15693 with 26 Kbps transmission rate (depending on card) |
| Supported APIs | PC/SC driver (ready for 2.01), Synchronous API (on top of PC/SC) |
| PC/SC Driver Support |
Windows® XP / Vista / Windows 7 / Windows 8, 2003 / 2008
Server, Windows® CE 5.0 / CE.NET / CE 6.0 (depending on hardware), Linux® and Mac® OS X |
| Status Indicator | Dual color LED (green=ready, red=busy) |
| Reader Board | Also available as PCB |
| Color | Dark grey |
| Options | Customer Specific Logo: Available upon request |
| Composition | ABS |
| Connector Cable | 70.9" (180 cm) |
| Meantime Between Failure (MTBF) | 500,000 hours |
| Compliance/Certification |
Microsoft® WHQL1
, USB 2.0 (USB 1.1 compatible), GSA FIPS 201 approved product list (in preparation) |
| Safety/Environmental | CE, FCC, UL, RoHS, WEEE |
| Warranty |
Two year manufacturer's warranty. (For drivers, see complete
lifetime support policy.) |
1 = Windows® Hardware Quality Lab
