USE CASES

• Border control
• Criminal booking
• Watchlist matching
• Intelligence gathering

SMALL TENPRINT READER FOR MOBILE AND JUMP KIT APPLICATIONS

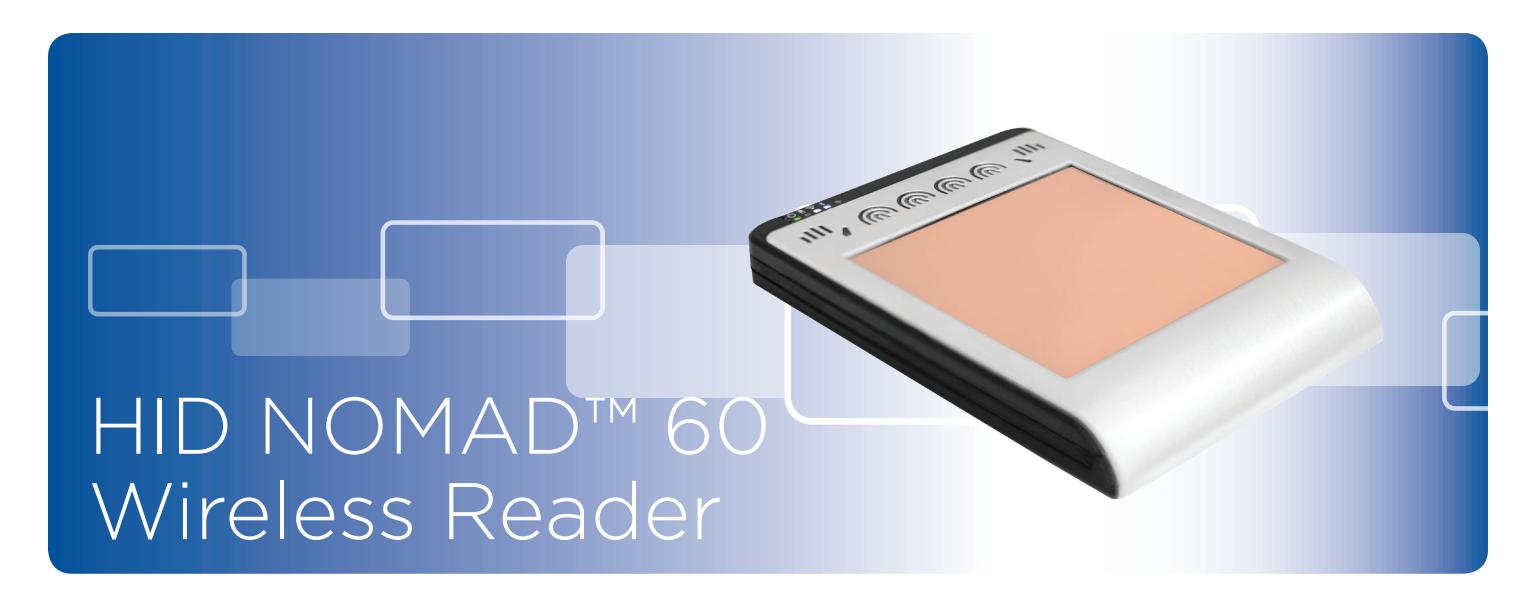

The NOMAD 60 Wireless Reader is a mobile tenprint reader, capturing flats and rolls, that delivers high-quality results for enrollment, identification and verification applications thanks to its sophisticated and unique technical features.

Pocket Sized Biometric Reader

With the NOMAD 60 Wireless Reader, HID Global created not only a small, but also a thin and light-weight biometric reader for capturing fingerprints, without compromising on quality. Its small size makes it the perfect fit for mobile applications. When integrated into Jump Kits, the NOMAD 60 Wireless Reader serves as a high quality biometric tenprint reader, while saving space.

Certified High-Quality Images

Thanks to our patented capacitive thin film transistor (TFT) technology, the NOMAD 60 Wireless Reader ensures the capture of high-quality images regardless of environmental conditions. This technology enables the reader to capture superior fingerprint images that meet FBI standards such as Appendix F, whether in indirect or direct sunlight. The same technology also facilitates the image capturing from dry or dirty fingers.

Fingerprint Management on The Go

The NOMAD 60 Wireless Reader does not require a USB connection. By using Wi-Fi, it can be connected to any smartphone or tablet to match fingerprints against a watchlist. In addition, its low power and minimal maintenance requirements make the reader a powerful biometric device for outside usage. The NOMAD 60 Wireless Reader comes with a protective case that protects the sensor from scratches.

Integrated User Guidance

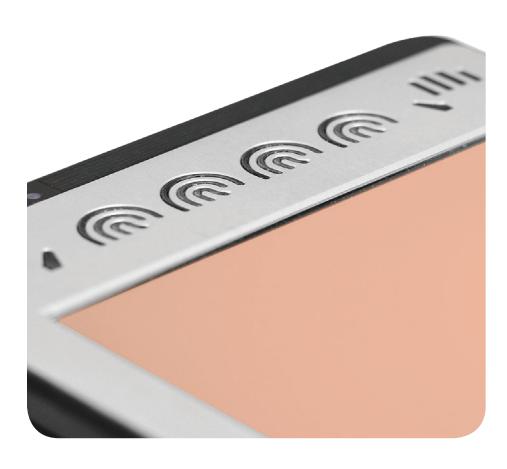

The NOMAD 60 Wireless Reader makes the job of capturing fingerprints much easier thanks to the integrated user guidance. LEDs illuminate to indicate which finger(s) are to be placed on the sensor. Additional LEDs turn green to indicate that the quality of the image is acceptable according to Appendix F removing any doubt for the operator. This makes the overall capture process more efficient.

SPECIFICATIONS

Product Name	HID NOMAD™ 60 Wireless Reader
Description	Tenprint Reader
Capture Mode	Flats and Rolls
DEVICE
Dimensions (H x W x D)	4" x 5.2" x 0.6" (103 mm x 132 mm x 16 mm)
Weight	0.65 lbs (0.295 kg)
Battery	3300 mAh
Interface	IEEE 802.11 a/b/g/n/ac 2.4/5 GHz
OPERATING ENVIRONMENT
Temperature Range	32° to 122°F (0°C to 50°C)
Humidity Range	10-90% non-condensing, splash-resistant
SYSTEM REQUIREMENTS
Operating System	Microsoft® Windows® 7 and 10
	Android® 5.1 and above
IMAGE SPECIFICATIONS
Scanning area	3.2" x 3" (81.28 mm x 76.2 mm)
Image Size (W x L)	1600 x 1500 pixels
Image Resolution	500 ppi, 256 gray scale
STANDARDS AND CERTIFICATIONS
Image Quality Standards	IAFIS Appendix F
Ingress Protection (IP)	IP54, able to survive 4 foot drop
Certification	Appendix F, CE, FCC, UL, RoHS
SOFTWARE
SDK (included)	HID NOMAD SDK
Software Compatibility	HID Integrale™; HID LSMS; HID MOBS; HID BioCore
	Third-party software
ACCESSORIES

Standard USB charging cable; Soft carry case

Protective sleeve

Soft carry case
