TECHNOLOGY HIGHLIGHTS:
- Bluetooth Smart 4.1 and WiFi compliant
- iBeacon (Apple), Eddystone (Google) and sBeacon (HID) supported
- Models for any standard A/C, DC or USB power outlet
- Battery backed BluFi DC for temporary installations
- Central management possible
BluFi DC Plenum with optional mounting kit

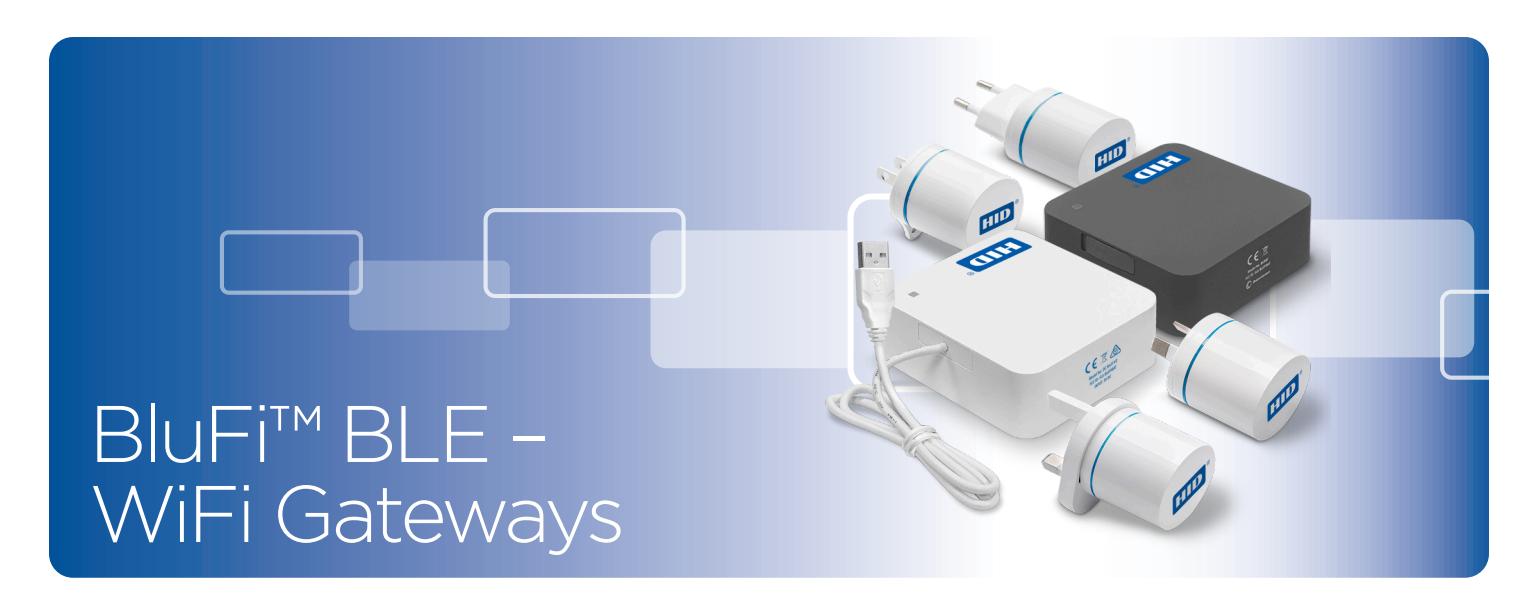

BLUETOOTH SMART TO WIFI GATEWAYS FOR BEACON MANGEMENT
- Cloud Enabled Bi-directional BLE to WiFi gateway for remote management
- Smart Accurately measures distance to BLE Beacons for RTLS
- Rapid Implementation Simply install at any conventional power plug

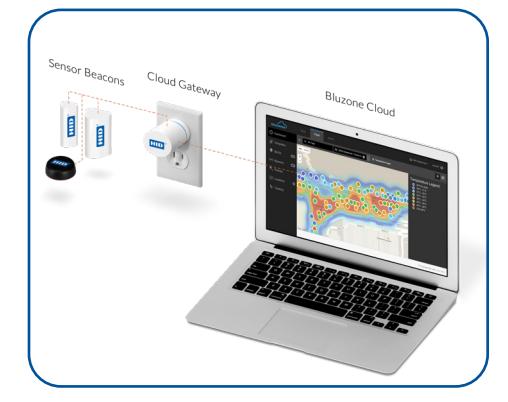

BluFi™ are Bluetooth Low-Energy (BLE) to Wifi gateways that relay signals between BEEKs Beacons and the cloud of HID Global's end-to-end IoT Services ecosystem. In combination with the corresponding Bluzone™ cloud services, BluFi enable BEEKs™ beacons to be centrally managed through the cloud, to transfer new messages, firmware updates, sensor data and battery status checks remotely. Their unique design allows BluFi devices and BEEKs beacons to broadcast reliably even in densely populated WiFi environments.
BEEKs and BluFi are not limited to standard beacon applications. HID Condition Monitoring Services, include a range of sensor beacons for motion, temperature and vibration. This sensor data is sent via BluFi gateways to the Bluzone Cloud to perform operational analysis for motorized equipment.
HID Global Location Services, is an efficient real-time asset location and item management platform leveraging BEEKs beacons to effectively pin down the locations of assets inside a warehouse, campus or manufacturing hall.
The calculation of the BEEKs location is based on received signal strength and other factors measured by BluFi devices.
BluFi AC devices are available in four major international power plug versions and can be installed in any standard power outlet on a wall or ceiling. BluFi DC are powered with a rechargeable battery and ideal for temporary or mobile setups. BluFi DC Plenum is a flame resistant, low-voltage DC powered version without battery. Both BluFi DC types are designed to be installed with an optional mounting kit on walls, ceilings or in the plenum. DC power connection can be done via USB or direct wires.
BluFi devices make it easy and cost efficient to cover an area with BLE to internet connectivity to take advantage of centralized management, realtime condition monitoring or location services with a fraction of the effort required by alternative technologies.
APPLICATION AREAS: Condition Monitoring
- Wireless status info on motorized equipment (on/off)
- Fault detection based on vibration or temperature trends
- Reporting of equipment duty cycles
- Cold chain applications
Real-time location
- Indoor position tracking of assets (Tools)
- Position based alerting, heat-maps etc.
- Workplace optimization
- Emergency mustering
Retail advertisement
- BEEKs beacons may be used in iBeacon and/ or Eddystone mode for advertising messages or location based services
- Central provisioning or monitoring via BluFi and Bluzone possible
- and Bluzone possibleOptional counting phones in vicinity
SPECIFICATIONS
| BluFi™AC | BluFi™ DC | BluFi™ DC Plenum | |||||
|---|---|---|---|---|---|---|---|
| -0 | 1 | 6 | |||||
| Base Model Number | BVBFUS (US) | BVBFEU (EU) | BVBFUK (UK) | BVBFAU (AU) | BVBFBUS (US), BVBFBEU (EU), BVBFBUK (UK), BVBFBAU (AU) | BVBFLVPW | |
| ELECTRONIC | ' | ' | ' | ||||
| AC Input | 100-240 VAC, 50/60 Hz | N/A | |||||
| AC Plugs / Charge Plug |
NEMA 1-15
ungrounded (Type A) |
CEE 7/16 "Europlug"
(Type C) |
BS 1363 (Type G) |
AS/NZS 3112
(Type I ungrounded) |
Micro USB or PoE with external adapter.
USB charger provided according to P/N. |
USB Type A | |
| Bluetooth Type | Bluetooth Low Energy 4.1 | ||||||
| Bluetooth Sensitivity | -98dBm | ||||||
| WiFi Type | 802.11 b/g/n | ||||||
| WiFi Sensitivity |
-97.5dBm @ 1DSSS
-88.5dBm @ 11 CCK |
||||||
| WiFi Frequency | 2.4 Ghz with coexistence built-in with Bluetooth | ||||||
| Processor Type | ARM Cortex M4 and ARM Cortex M3 | ||||||
| Memory | 256KB Flash (100KB free for custom applications) | ||||||
| Power Consumption | 6 mA Max | 800 mA while charging; 80 mA when fully charged | 9mA when TX; 1.2 µA on sleep | ||||
| PHYSICAL | |||||||
| Length × Width | 2 × 1.5 x 1.5 in (50 × 38 x 38 mm) 3.4 x 3.2 x 1.2 in (86.1 x 82.2 x 31.8 mm) | ||||||
| Housing Material | Polycarbonate and ABS | ||||||
| Color | White | Gray | White | ||||
| Weight | 1.3 oz (37 g) | 1.6 oz (46 g) | 1.7 oz (48 g) | 1.6 oz (46 g) | 9.3 oz (264 g) | 4.13 oz (117 g) | |
| BATTERY | |||||||
| Туре | N/A | 5V / 10.5Ah - Lithium Ion Rechargeable | N/A | ||||
| Life | N/A | up to 24h | N/A | ||||
| CLOUD | |||||||
| Туре | Bluzone Cloud - Cloud realtime managed | ||||||
| Data Output to Cloud | 0.1 to 1Mbit Up data | ||||||
| CHEMICAL AND MECHANICA | L RESISTANCE | ||||||
| Water | IP67, 68° F (20° C), 3.3 ft (1 m) x 1 h | ||||||
| THERMAL | |||||||
| Storage | -13° to +149° F (-25° to +65° C) | -4° to +158° F (-20° to +70° C) | |||||
| Operating Temperature | -13° to +149° F (-25° to +65° C) | -4° to +158° F (-20° to +70° C) | |||||
| OTHER | |||||||
| Standards | FCC/CE/UL/FRE; BLE; Wifi 2.4 GHz FCC/CE; BLE; Wifi 2.4 GHz | ||||||
| Flame Resistance | UL-2043 | ||||||
| Options | Wall or ceiling / plenum mounting kit (P/N: BVBFB2) | ||||||
| Box Size | 1 pcs. | ||||||
| Warranty | 1 year | ||||||
